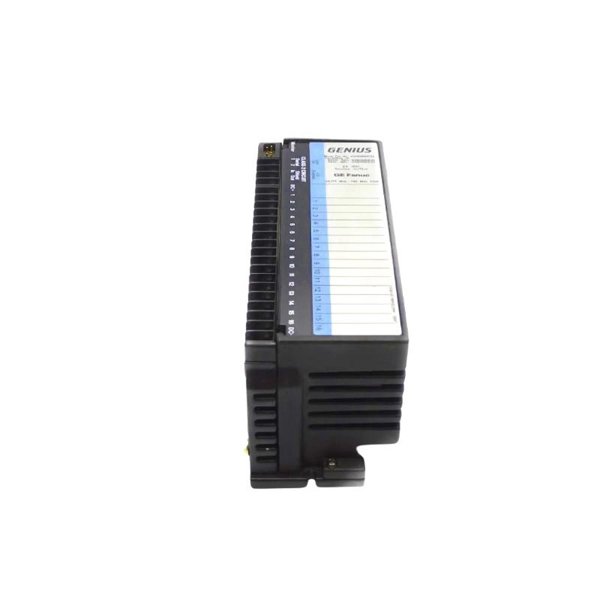

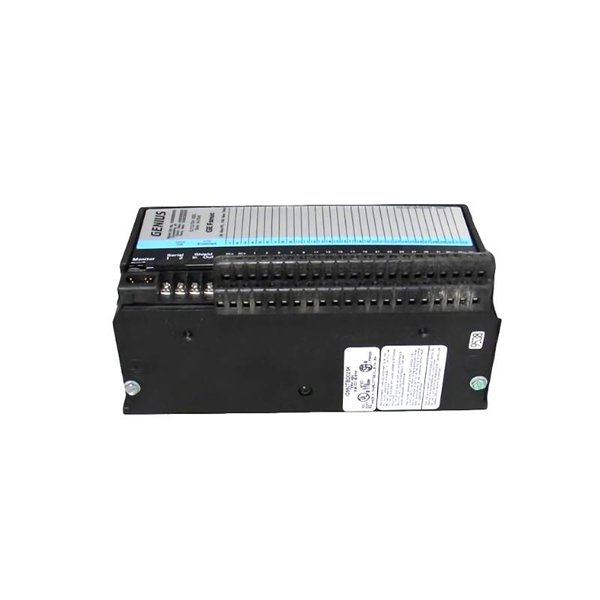

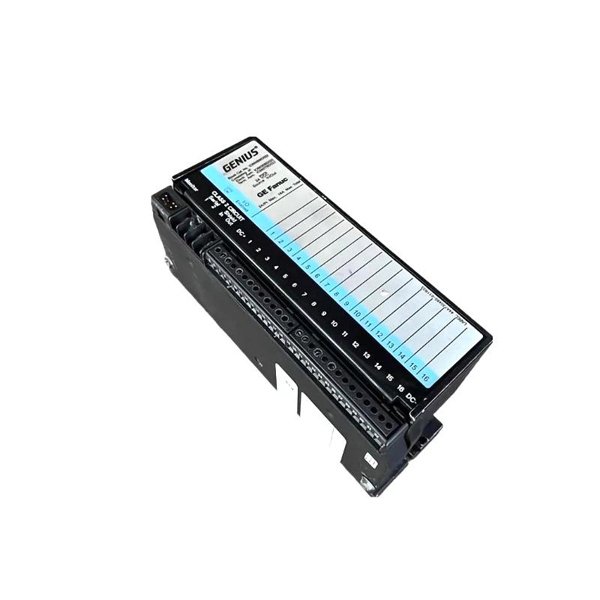

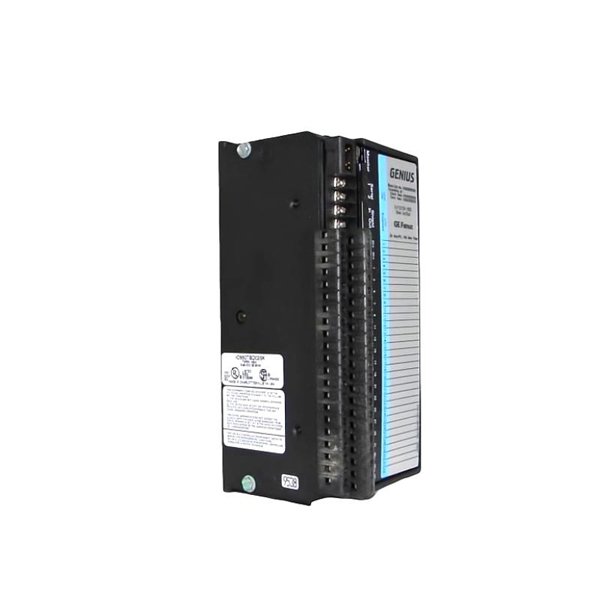

General Electric IC660BBD022 Discrete I/O Module

The GE IC660BBD022 is a discrete input/output (I/O) module from the Genius I/O family by General Electric (GE). Designed for demanding industrial automation applications, this block-type module provides 16 discrete I/O circuits that can be flexibly configured for input or output, delivering exceptional versatility for control systems.

This module connects seamlessly with Genius Bus-compatible controllers, including GE Series 90-30 and Series 90-70 PLCs. Its field-hardened design ensures robust performance in electrically noisy environments, while comprehensive diagnostics and flexible configuration options make it an ideal choice for real-time control of machinery, process automation, and safety-critical operations.

Product Specifications

Product Applications

The GE IC660BBD022 Discrete I/O Module is highly adaptable across a range of industrial sectors and applications:

• Manufacturing Systems: For controlling actuators, sensors, relays, and interlocks in discrete manufacturing.

• Material Handling: Integration with conveyors, motors, and logic-driven systems in warehouses or distribution centers.

• Water Treatment Plants: Monitoring and controlling pumps, valves, and alarms.

• Building Automation: Used in lighting control systems, HVAC equipment switching, and access systems.

• Energy Sector: Substation monitoring, generator start/stop control, and auxiliary device management.

• Automotive Industry: Line automation, robotic interface, and status signal processing.

Product Advantages

• Flexible Configuration: Each of the 16 I/O points can be configured individually as either input or output.

• High Signal Integrity: Optical isolation ensures protection from high-voltage spikes and electrical interference.

• Diagnostics-Rich: Built-in status LEDs and error reporting make maintenance and troubleshooting faster and more effective.

• Robust Design: Rugged enclosure and industrial-grade components allow for deployment in demanding environments.

• Simplified Wiring: Block-style layout with easy terminal access reduces installation time and errors.

• Integration Ready: Fully compatible with GE Genius Bus and programmable control systems like Series 90-30.

• High Channel Density: Reduces overall system footprint with 16 I/O in a single compact module.

• Energy Efficiency: Low power consumption and heat dissipation ensure reliable long-term use.

• Wide Voltage Support: Compatible with both 115 VAC and 230 VAC power sources.

• Field Proven Reliability: Backed by GE’s reputation in industrial automation and control hardware.

Frequently Asked Questions (FAQ)

1. How many channels are available on the IC660BBD022 module?

   It provides 16 configurable discrete channels.

2. Can the I/O channels be mixed on a single module?

   Yes, each channel can be independently set as input or output.

3. What voltage levels does this module support?

   The module operates on 115/230 VAC with a logic threshold of 115 VAC.

4. Is the module compatible with modern GE PLCs?

   Yes, it integrates with GE Series 90-30 and 90-70 via Genius Bus.

5. Does the module have diagnostic features?

   Yes, including short circuit detection, open wire diagnostics, and LED status indicators.

6. What is the isolation rating?

   The module provides 2500 V RMS of optical isolation between channels and logic.

7. What are the mounting options?

   It supports secure panel mounting in standard industrial enclosures.

8. Can it be used in outdoor environments?

   The module is suitable for protected industrial environments; outdoor use requires enclosure.

9. What is the power consumption?

   The module draws low power and is designed for energy efficiency, but exact values depend on configuration.

10. Is hot swapping supported?

    No, the IC660BBD022 does not support hot swapping; power must be removed before maintenance.
