Yokogawa F3YD64-1F Output Module

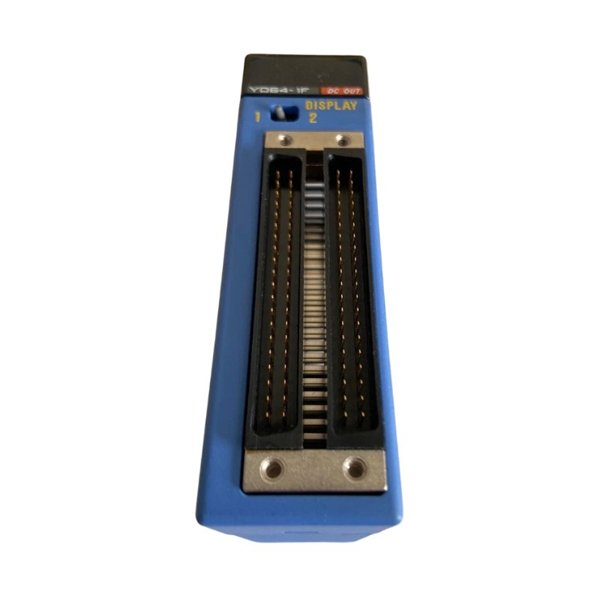

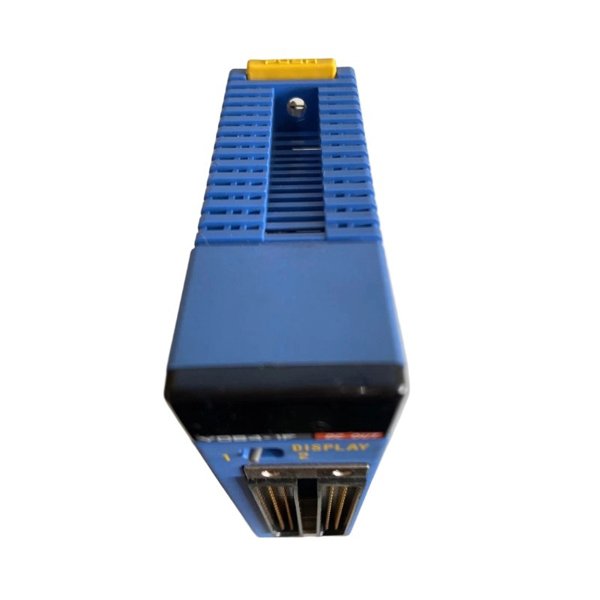

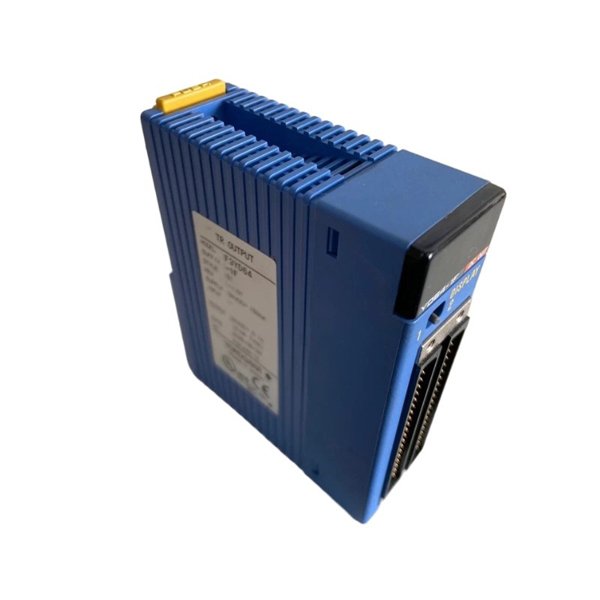

The Yokogawa F3YD64-1F Output Module is a high-density output module designed for the FA-M3 series PLC systems. It provides reliable signal output capability for controlling actuators, relays, solenoids, and other field devices. Built with industrial-grade components, it is optimized for use in demanding environments where precision and stable operation are essential. The module integrates seamlessly into FA-M3 control systems, supporting flexible expansion and high-speed data exchange to meet the requirements of modern automation processes.

Product Advantages

• High Channel Density – Offers multiple output channels in a single module, reducing cabinet space and wiring complexity.

• Stable Signal Output – Provides consistent and precise output signals, suitable for critical industrial control.

• Modular Scalability – Easily integrates into FA-M3 systems, allowing for flexible system expansion.

• Rugged Design – Built for long-term reliability in harsh environments such as oil, gas, power, and manufacturing industries.

• Low Maintenance – Designed with durable components, reducing failure rates and downtime.

• Fast Response Time – Ensures rapid control and output updates for real-time process demands.

Technical Specifications

Product Applications

The F3YD64-1F Output Module is widely used across industries for automation and process control. Typical applications include:

• Manufacturing Automation – Output control for conveyors, robotic arms, and assembly lines.

• Power Generation – Output interfaces for turbine control and auxiliary systems.

• Oil & Gas – Output module for safety systems, compressor control, and monitoring units.

• Water Treatment Plants – Actuator and valve output control for flow and pressure management.

• Building Automation – Control of lighting, HVAC, and safety systems.

• Chemical and Pharmaceutical Plants – For precise process control and automation sequences.

FAQ

Q1: What type of signals does the F3YD64-1F output module support?

A1: It supports digital (ON/OFF) signals with 24V DC nominal output voltage.

Q2: Is channel-to-channel isolation provided in this module?

A2: Yes, isolation is provided between channels and between the module and system bus to enhance reliability.

Q3: What is the maximum current capacity per channel?

A3: Each channel can handle up to 0.5 A output current.

Q4: Can this module be hot-swapped during system operation?

A4: No, the module should be powered down before installation or replacement to avoid damage.

Q5: How is the module powered?

A5: The module is powered through the FA-M3 system backplane, requiring no external power wiring.

Q6: What protections are included for the output channels?

A6: Overcurrent and short-circuit protection are implemented for output safety.

Q7: Is the module suitable for high-speed output applications?

A7: Yes, with a response time of ≤ 0.5 ms, it supports real-time control tasks.

Q8: Does the module require external wiring terminals?

A8: Yes, it interfaces with terminal blocks that provide wiring access to the 64 outputs.

Q9: What is the recommended operating environment for the module?

A9: The module should operate between 0°C to 55°C with humidity between 10–90% RH non-condensing.

Q10: Is the F3YD64-1F compatible with all FA-M3 series CPUs?

A10: Yes, it is fully compatible with FA-M3 system CPUs and can be integrated into new or existing systems.
