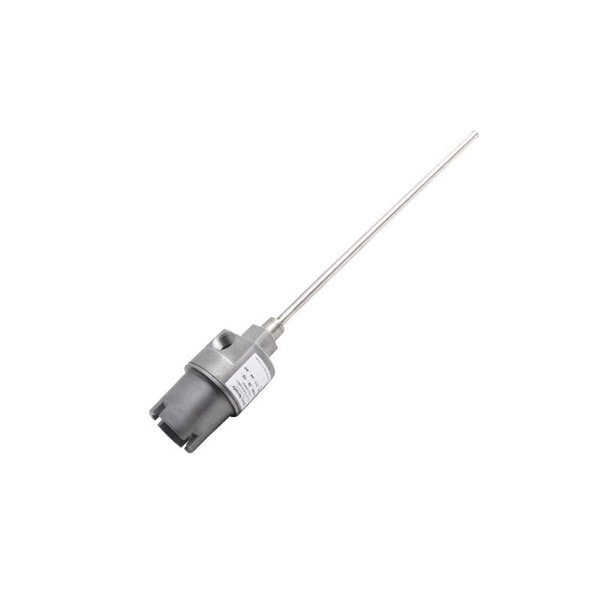

Bently Nevada 21000-16-05-15-098-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-05-15-098-03-02 is a Proximity Probe Housing Assembly designed to facilitate the installation and protection of proximity probes in industrial environments. This assembly allows for external mounting of probes, enabling condition monitoring of machinery without the need for disassembly. Constructed with durable materials, it ensures reliable operation in harsh conditions, making it an essential component in predictive maintenance strategies.

Product Specifications

Product Applications

The 21000-16-05-15-098-03-02 housing assembly is utilized in various industries for machinery condition monitoring:

• Oil and Gas: Monitoring rotating equipment like compressors and pumps to prevent failures.

• Power Generation: Ensuring the reliability of turbines and generators through vibration analysis.

• Manufacturing: Tracking the condition of motors and gearboxes to optimize maintenance schedules.

• Chemical Processing: Safeguarding critical equipment in corrosive environments.

• Pulp and Paper: Monitoring rollers and other rotating machinery for wear and alignment issues.

• Mining: Ensuring the operational integrity of heavy-duty equipment under harsh conditions.

Product Advantages

• Durable Construction: The combination of an aluminum body and stainless steel sleeve offers resistance to corrosion and mechanical wear.

• Ease of Installation: External mounting allows for probe installation without disassembling machinery, reducing downtime.

• Versatility: Compatible with various probe options and cable lengths to suit different applications.

• Environmental Protection: Rated IP67 and CSA Type 4, suitable for use in hazardous and demanding environments.

• Compliance: Meets API 670 standards, ensuring reliability in critical monitoring applications.

• Compact Design: The shorter probe penetration length makes it ideal for installations with limited space.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 21000-16-05-15-098-03-02 housing assembly?

   It facilitates the external mounting and protection of proximity probes for machinery condition monitoring.

2. Which probes are compatible with this housing assembly?

   It is designed for use with Bently Nevada 3300 XL 8 mm probes with connectors.

3. What is the probe penetration length for this model?

   The probe penetration is 9.8 inches, suitable for installations requiring deeper probe insertion.

4. Can this housing assembly be used in hazardous environments?

   Yes, it is CSA approved for hazardous areas and meets CSA Type 4 and IP67 protection standards.

5. What materials are used in the construction of this assembly?

   It features an aluminum body with a 304 stainless steel sleeve for durability and corrosion resistance.

6. Is the housing assembly compliant with industry standards?

   Yes, it complies with API 670 standards for machinery protection systems.

7. What are the dimensions and weight of the assembly?

   Weighs about 1.1 kg.

8. What fittings are included with this model?

   It includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for various cable sizes.

9. What is the operating temperature range?

   The assembly operates reliably between -51°C and +177°C.

10. Where is this product manufactured?

    It is manufactured in the USA, ensuring adherence to high-quality standards.
