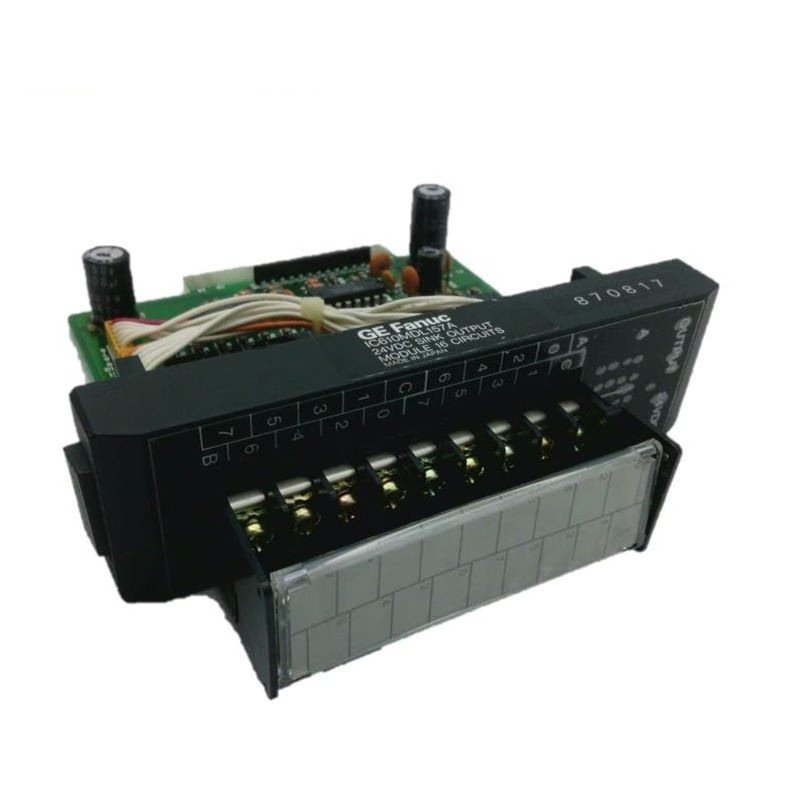

GE Fanuc IC610MDL157A Output Module

The GE Fanuc IC610MDL157A is a 24 VDC sink output module designed for the GE Fanuc Series One PLC. This module provides 16 discrete output circuits that enable control of various field devices in industrial automation systems, such as relays, contactors, and indicators. It is designed for applications in manufacturing, packaging, material handling, and robotics.

Technical Specifications

• Voltage: 24 VDC
• Number of Outputs: 16 discrete outputs
• Output Type: Sink (Discrete)
• Output Voltage Range: 5 to 24 VDC
• Peak Voltage: 40 VDC
• Output Current: 0.5 A per point, 4 A per module
• Power Consumption:
  • 3 mA per circuit at 9 VDC
  • 6 mA per circuit at 24 VDC
• Leakage Current: 0.11 mA at 40 VDC
• Inrush Current:
  • 3 A for 20 ms
  • 1 A for 100 ms
• Response Time: 0.1 ms for on/off state changes
• Fuse Protection: 3 A fuse for each output group
• Dimensions: 8.83″ x 3.50″ x 3.94″ (22.44 cm x 8.89 cm x 10.00 cm)
• Weight: 5.6 ounces (0.16 kg)
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Relative Humidity: 5% to 95%, non-condensing
