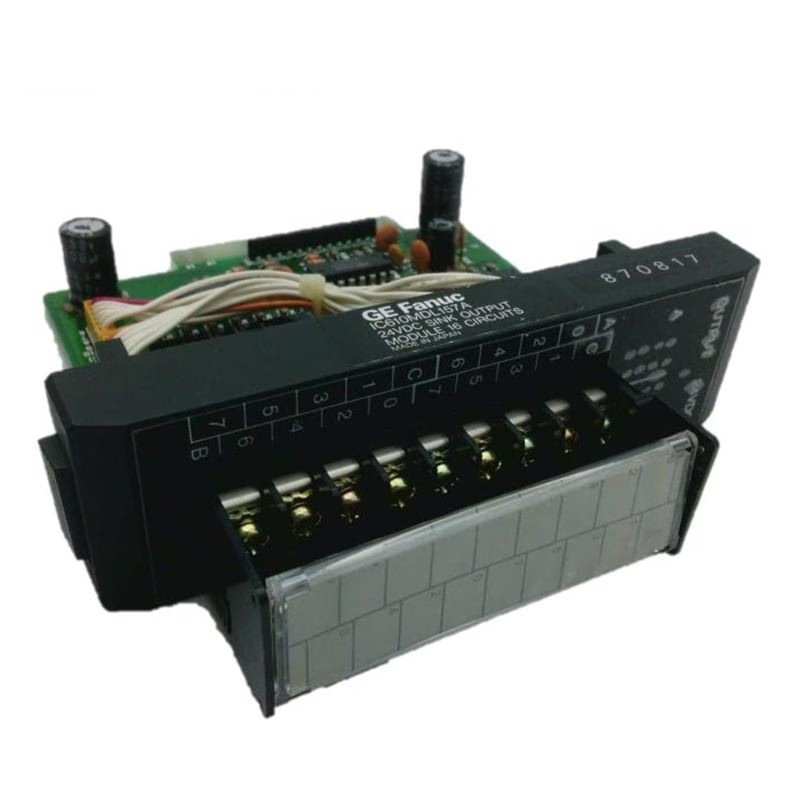

The GE Fanuc IC610MDL157B is a 24 VDC sink output module designed for the GE Fanuc Series One Programmable Logic Controller (PLC) system. It provides 16 output circuits to control various industrial devices. This module is widely used for controlling discrete ON/OFF loads such as relay coils, solenoid valves, and indicator lights in industrial automation applications. Its robust design and removable terminal board simplify installation and maintenance.

Technical Specifications

• Model: IC610MDL157B
• Manufacturer: GE Fanuc
• Type: Output Module
• Output Type: 24 VDC Sink/Source
• Output Current: 2 Amps continuous, 8 Amps peak per output
• Number of Outputs: 16 isolated, fused output circuits
• Load Types: Relay coils, solenoid valves, motor starters, indicator lights
• Operating Voltage: 5 to 24 V DC
• Maximum Leakage Current: Less than 0.4 mA at 40 V DC
• Internal Fuses: Replaceable 5-amp fuses for each output circuit
• Power Consumption: 12 mA at 9 V DC (2 units of load), 30 mA at 9 V DC (3 units of load)
• Temperature Dependence: Maximum number of circuits ON varies with ambient temperature (e.g., 3 circuits at 10°C, 1 circuit at 40°C)
• Terminals: Faceplate-mounted terminal block with screw terminals for easy field connections (accepts up to two No. 14 or a single No. 12 AWG wires)
• LED Indicators: Indicates each output circuit’s ON/OFF state
• Weight: 0.20 lbs
