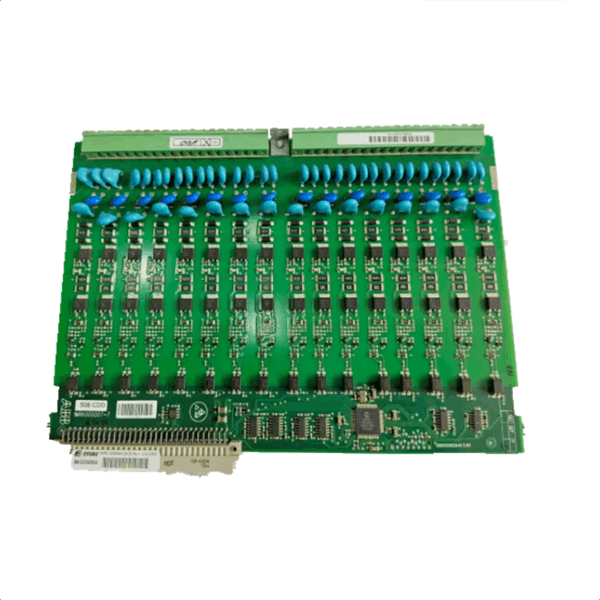

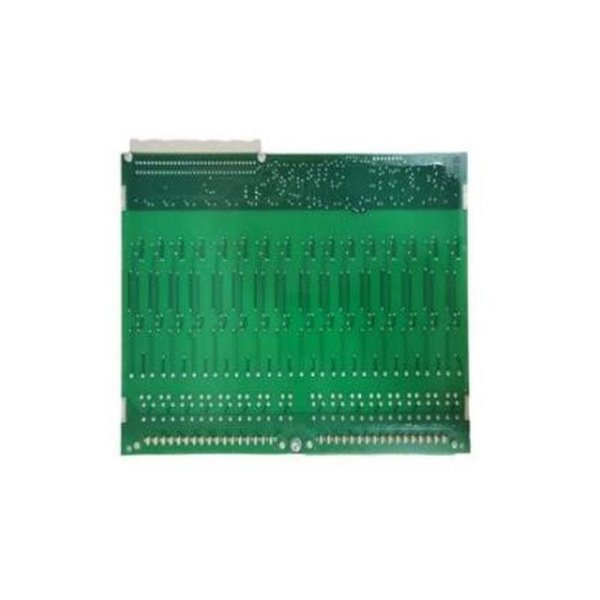

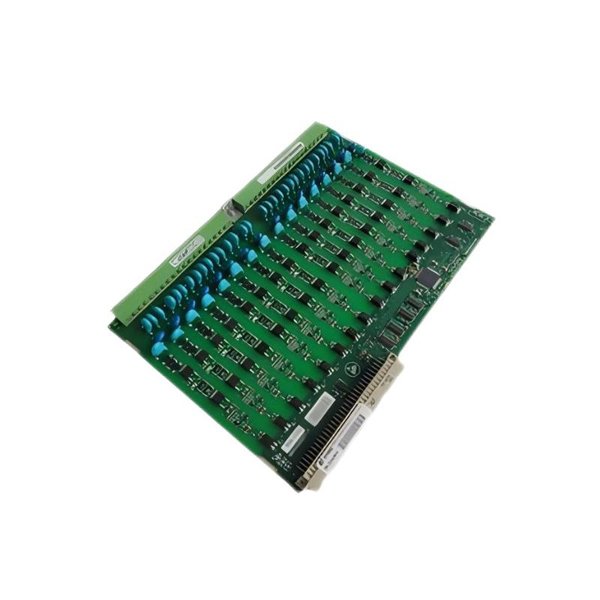

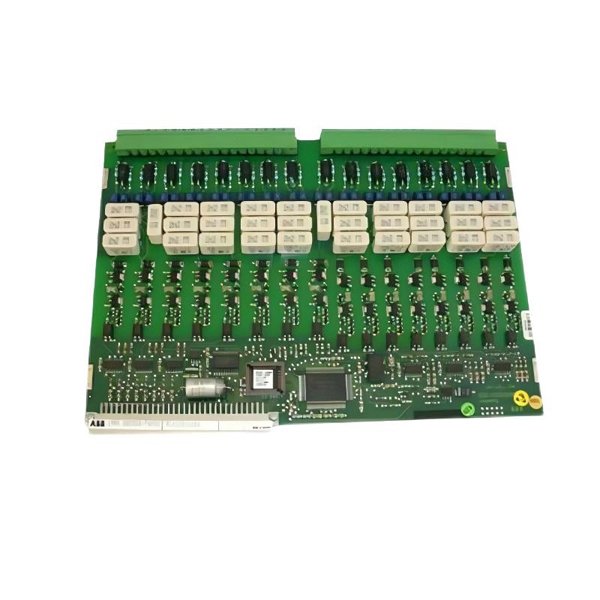

ABB 1MRK000508-BDr04 Binary Input/Output Module

The ABB 1MRK000508-BDr04 is a high-performance binary input/output (I/O) module designed to provide efficient and reliable signal management for industrial automation systems. It is an essential component for controlling and interfacing with devices that operate with binary signals, such as sensors, switches, and relays. This module is ideal for a variety of applications where robust I/O signal conversion and processing are required in both input and output operations.

The 1MRK000508-BDr04 module offers flexibility, reliability, and ease of integration. With its compact form factor, it integrates seamlessly with automation control systems, offering both digital input and output capabilities. The module supports a wide range of industrial communication protocols, ensuring smooth integration into existing control networks.

Built to withstand harsh industrial environments, the ABB 1MRK000508-BDr04 provides excellent performance in temperature extremes and is highly durable, ensuring long-lasting and reliable operation. This module is designed to be mounted on DIN rails, providing ease of installation and flexibility in application.

Product Specifications

Product Applications

The ABB 1MRK000508-BDr04 is widely used in various industrial automation applications, including:

• Factory Automation: Managing manufacturing processes, assembly lines, and machine control systems where digital signal management is essential.

• Process Control: Used in industries like chemical, pharmaceutical, food processing, and water treatment plants where discrete control signals are needed for equipment such as pumps, valves, and mixers.

• Energy Management: Applied in systems where digital signals are needed to monitor and control energy distribution and consumption.

• Building Automation: Used in managing HVAC systems, lighting, and security systems in both commercial and industrial buildings.

• Safety Systems: Interfacing with safety switches, emergency stop systems, and protective devices to ensure operational safety.

• Automated Testing: Facilitating automated testing setups by controlling input and output signals for test equipment.

Product Advantages

• High Channel Density: The module supports 16 input and 16 output channels, making it a highly efficient solution for managing multiple signals simultaneously in complex systems.

• Compact and Lightweight: With dimensions of 20 x 198 x 262 mm and a weight of just 0.4 kg, this module offers a compact design ideal for environments with limited space.

• Wide Operating Temperature Range: The module operates in temperatures ranging from -25°C to +70°C, making it suitable for use in harsh industrial environments with extreme temperatures.

• Durable and Reliable: Designed for long-term use, the ABB 1MRK000508-BDr04 provides a high level of durability, ensuring long-lasting performance even under demanding conditions.

• Flexible Communication: With support for protocols like Modbus and Profibus, this module can be easily integrated into existing control systems, providing seamless communication with other automation components.

• DIN Rail Mounting: The module is designed to be mounted on DIN rails, ensuring easy installation in control cabinets or panels.

• Energy-Efficient: Operating on a 24 V DC power supply, the module is energy-efficient, making it an ideal choice for applications where minimizing energy consumption is important.

FAQ

1. Q: What is the power supply requirement for the ABB 1MRK000508-BDr04?

   A: The ABB 1MRK000508-BDr04 operates on a 24 V DC power supply.

2. Q: How many input and output channels does the module support?

   A: The module supports 16 input channels and 16 output channels.

3. Q: What communication protocols are supported by this module?

   A: The module supports Modbus and Profibus communication protocols.

4. Q: What is the operating temperature range for the 1MRK000508-BDr04?

   A: The module operates in a temperature range from -25°C to +70°C.

5. Q: What is the weight of the ABB 1MRK000508-BDr04 module?

   A: The weight of the module is 0.4 kg.

6. Q: How is the ABB 1MRK000508-BDr04 module mounted?

   A: The module is designed for DIN rail mounting, which simplifies installation in control panels.

7. Q: Can this module be used in industrial automation applications?

   A: Yes, the ABB 1MRK000508-BDr04 is ideal for use in factory automation, process control, and other industrial applications.

8. Q: Does the 1MRK000508-BDr04 support high-temperature environments?

   A: Yes, it can operate in environments with temperatures as low as -25°C and as high as +70°C.

9. Q: Can this module be used for controlling safety systems?

   A: Yes, the module can be used to interface with safety switches, emergency stop systems, and other protective devices.

10. Q: What is the mounting type for the ABB 1MRK000508-BDr04 module?

    A: The module uses DIN rail mounting for easy and secure installation.
