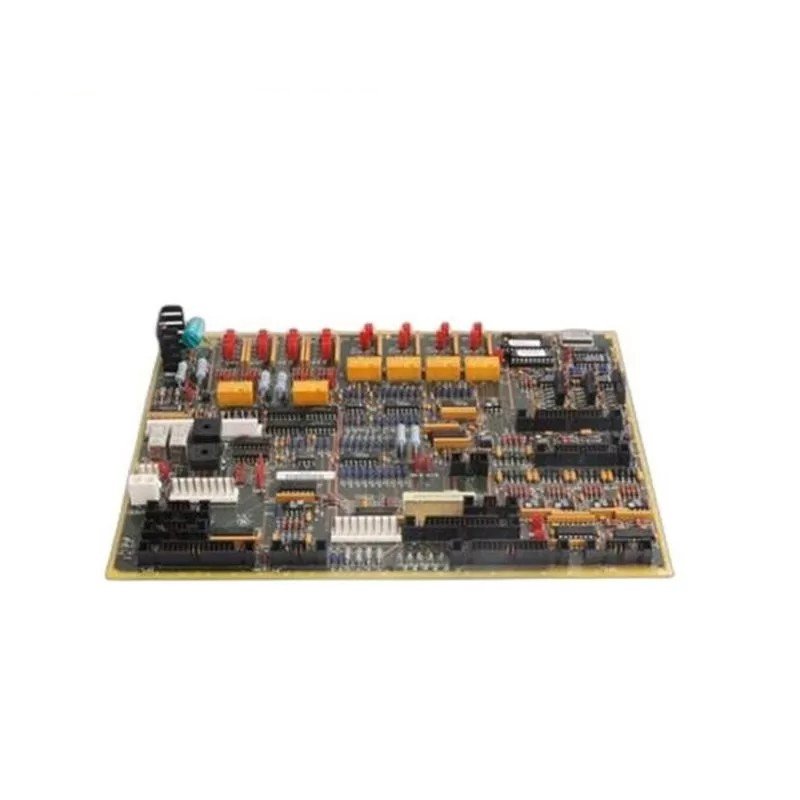

GE DS200TCQCG1BJF Analog IO Expander Board

The DS200TCQCG1BJF board, used in the Mark V turbine control system, serves primarily as an Analog IO Expander Board. This document focuses on its role in this capacity, although it also functions as an RST Overflow Board.

Hardware Overview and Specifications

The Analog IO Expander Board features hardware designed to enhance functionality and performance.

Connectors

• Three 40-pin connectors: JFF, JE, 6PL
• Three 34-pin connectors: JFF, 1PL, JA
• One 16-pin connector: JC

These connectors link the board to other system components via ribbon cables.

Jumpers and Relays

• Jumpers: 24 adjustable jumpers allow for configuration changes.
• Relays: Multiple relays are soldered to the board, requiring no maintenance.

Key Features

• Dual Functionality: Operates as both an Analog IO Expander and RST Overflow Board.
• Secure Connectivity: Equipped with various connectors for stable connections.
• Maintenance-Free Relays: Relays are directly soldered to the board.
• Optimized Cable Routing: Proper routing minimizes interference and ensures optimal performance.

Technical Specifications with Parameters

• Connectors: Includes 40-pin, 34-pin, and 16-pin connectors.
• Jumpers: Features 24 adjustable jumpers.
• Relays: Soldered directly to the board, requiring no maintenance.
• Ribbon Cables: Ensure proper routing to avoid interference.
• Interference Avoidance: Route signal and power cables at 90-degree angles if crossing is necessary.
