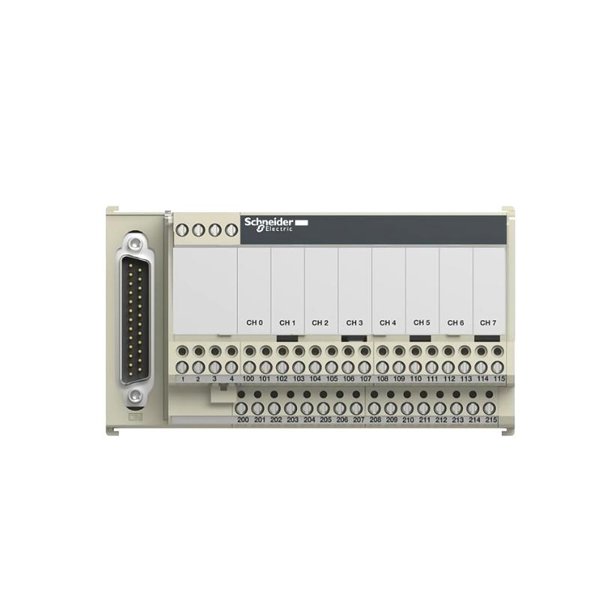

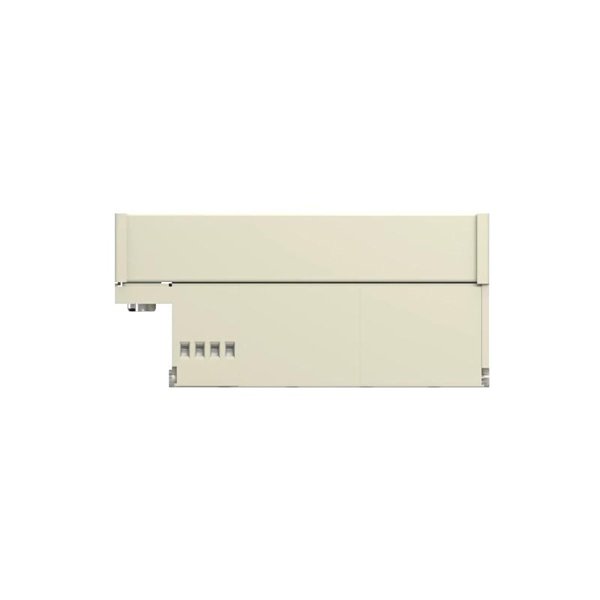

Schneider ABE7CPA03 Connection Sub-Base
Manufacturer:Schneider
Product Number:ABE7CPA03
Product Type:Connection Sub-Base
Origin:France
Dimensions:125 x 70 x 67 mm
Weight:0.33 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric ABE7CPA03 is a high-performance connection sub-base designed to serve as an interface between I/O modules and external field wiring. Part of the well-regarded Telemecanique ABE7 series, this unit ensures modularity, reliability, and ease of installation in industrial automation systems. With a 12-point interface and a robust terminal connection system, the ABE7CPA03 allows for clean and organized wiring, minimizing installation and maintenance times while boosting system reliability.
Designed to integrate seamlessly with PLCs and I/O modules in control systems, this sub-base excels in applications where accuracy, efficiency, and safety are paramount. It’s built with durability and functionality in mind, capable of withstanding harsh industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | ABE7CPA03 |
| Product Type | Connection Sub-Base |
| Series | ABE7 |
| I/O Points Supported | 12 |
| Compatible I/O Modules | Telefast I/O Modules (24 V DC discrete signals) |
| Mounting Type | DIN Rail |
| Connector Type | HE10 20-pin male connector |
| Terminal Type | Screw clamp terminal |
| Operating Voltage | 24 V DC |
| Material | High-strength thermoplastic |
| Insulation Resistance | > 10 MΩ at 500 V DC |
| Ingress Protection | IP20 |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 125 x 70 x 67 mm |
| Weight | 0.33 kg |
| Certifications | CE, RoHS, UL, CSA |
Product Applications
The ABE7CPA03 is designed for versatile use in a wide range of industrial and commercial environments. Typical applications include:
Factory Automation: Facilitates quick and organized connections between sensors/actuators and the PLC.
Process Control Systems: Used in chemical, water treatment, and food processing industries.
Packaging Machines: Ensures clean wiring for rapid troubleshooting and modular control.
Material Handling: Used in conveyor systems and robotic assembly lines.
HVAC Systems: Interfaces control devices with centralized control systems.
Energy Management: Integrated in power distribution panels and monitoring setups.
Product Advantages
Simplified Wiring: Reduces errors and clutter by centralizing signal connections.
Time-Saving Design: Speeds up installation and troubleshooting with labeled terminals and standard connectors.
Reliable Performance: Built to endure harsh industrial environments with high electrical insulation.
Modular Integration: Easily connectable to various Schneider and Telemecanique I/O modules.
Enhanced Safety: Conforms to stringent international safety standards.
Cost Efficiency: Lowers maintenance costs by enabling quick module replacements.
Frequently Asked Questions (FAQ)
What type of modules can be connected to ABE7CPA03?
It connects to discrete I/O modules, particularly 24 V DC Telefast modules.
Is the ABE7CPA03 compatible with all Schneider PLCs?
It is primarily designed for use with Telemecanique and Schneider’s Modicon systems.
How many signals can the ABE7CPA03 support?
It supports up to 12 individual I/O points.
What type of connector does it use?
It uses a HE10 20-pin male connector for signal interfacing.
Can this sub-base be mounted on any type of panel?
It is designed for DIN rail mounting for standardized installation.
What is the operating temperature range for this product?
The operating range is from -5°C to +60°C.
Does the ABE7CPA03 require additional accessories for installation?
No special tools or accessories are required; standard DIN rail and wiring tools suffice.
Is this product certified for use in North America?
Yes, it is UL and CSA certified in addition to CE and RoHS compliance.
How long does the product last under normal operating conditions?
With proper installation and usage, it can last several years, even in industrial environments.
What kind of maintenance is required?
Occasional checks for terminal tightness and connector integrity are recommended.
