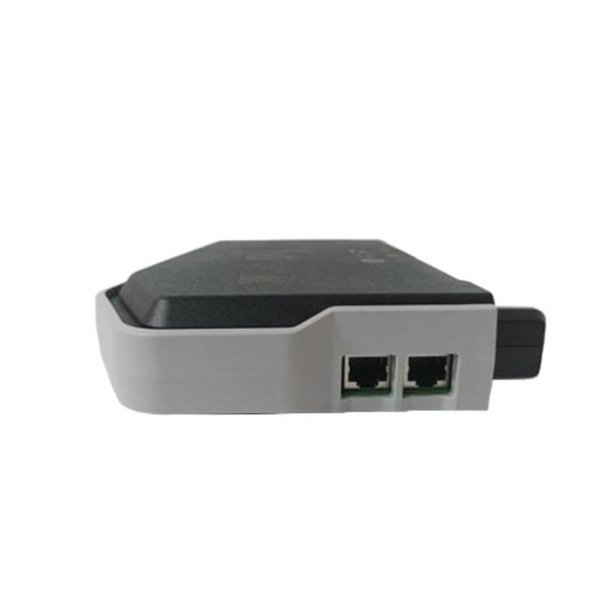

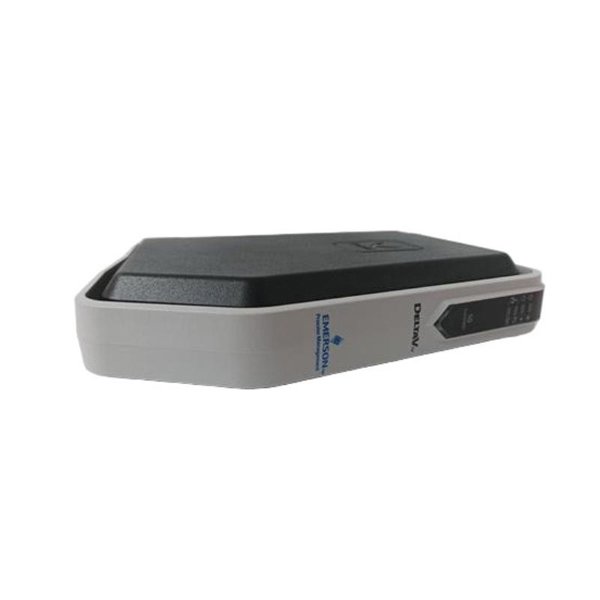

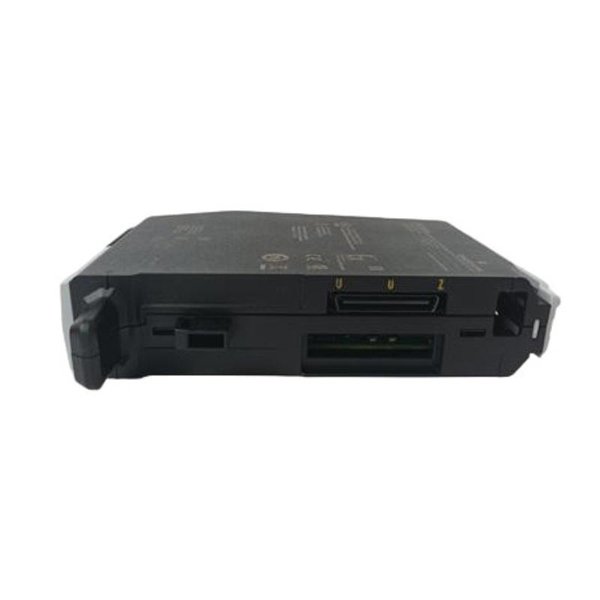

Emerson KJ2005X1-SQ1 Power Control

The Emerson KJ2005X1-SQ1 Power Control Module is an essential component in the DeltaV™ distributed control system, designed to manage and distribute power efficiently to various system components. This module plays a crucial role in system reliability by providing stable power control and distribution to controllers, I/O modules, and other system elements. It is engineered with robust protection, hot-swappable functionality, and built-in diagnostics, making it ideal for demanding industrial applications where continuous operation and minimal downtime are critical.

Key Features

• Reliable power distribution for DeltaV components

• Redundant-ready design for high availability

• Built-in diagnostics for monitoring voltage and current status

• Hot-swappable without system shutdown

• Overvoltage and short-circuit protection

• Compact form factor compatible with DeltaV backplane

• Compatible with a wide temperature range and harsh environments

Technical Specifications

Industry Applications

• Oil & Gas Refining and Processing

• Petrochemical and Chemical Manufacturing

• Pharmaceutical Production Systems

• Power Generation Facilities

• Food & Beverage Automation

• Mining and Metals Processing Plants

• Water & Wastewater Treatment

Advantages

• Ensures stable power for critical control components

• Increases system uptime with redundancy and hot-swap capability

• Enhances safety with built-in electrical protection features

• Simplifies maintenance with LED diagnostics and modular design

• Operates reliably in harsh industrial environments

• Integrates seamlessly into DeltaV architecture

Frequently Asked Questions (FAQ)

1. What is the purpose of the KJ2005X1-SQ1 module?

   It distributes regulated power to DeltaV system modules and ensures safe, stable operation.

2. Can it operate in redundant configurations?

   Yes, it supports redundancy to maintain continuous power in the event of a module failure.

3. Is this module hot-swappable?

   Yes, it can be replaced without shutting down the system.

4. What type of protection does it offer?

   It includes overvoltage, overcurrent, and short-circuit protection.

5. Is it compatible with all DeltaV modules?

   Yes, it is designed to support power control across standard DeltaV components.

6. What voltage does it operate on?

   Nominal 24 VDC input and output distribution.

7. How is the status monitored?

   LED indicators provide real-time status and fault diagnostics.

8. What kind of environments is it suitable for?

   Suitable for industrial use in extreme temperature and humidity conditions.

9. Can it be mounted directly to a DIN rail?

   It mounts to a DeltaV system baseplate, which can be DIN-rail mounted.

10. Does it require configuration or calibration?

    No, it operates automatically once installed with no user configuration needed.
