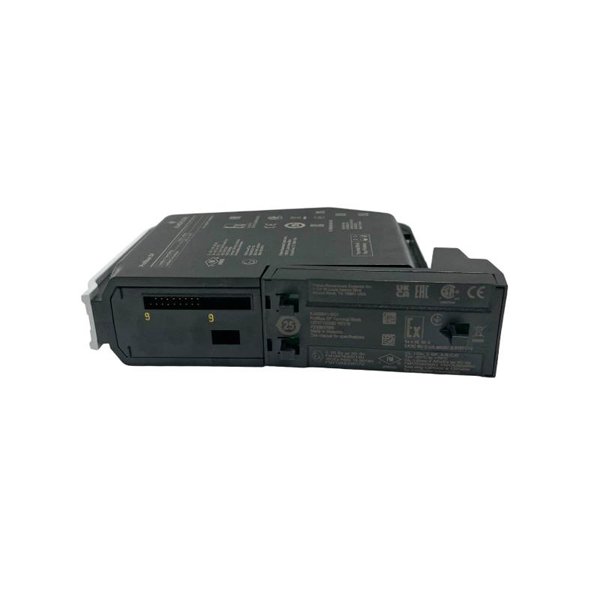

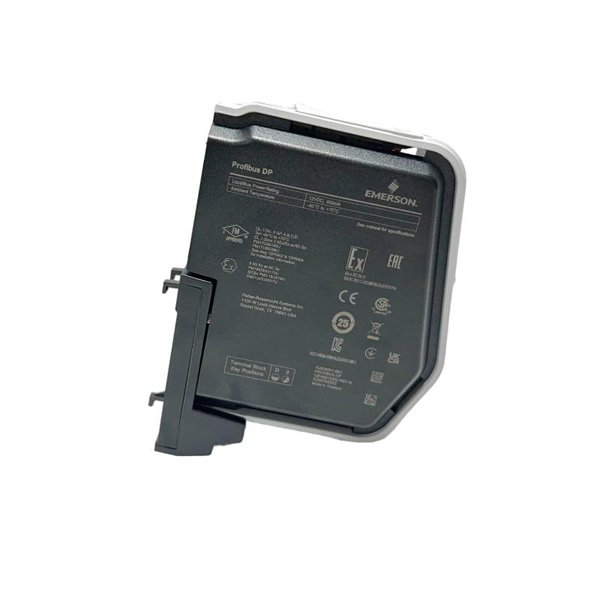

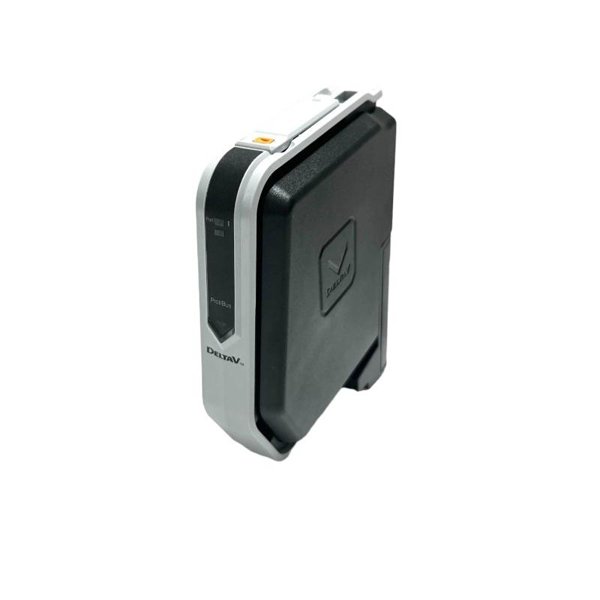

Emerson SE4002S1T2B6 KJ3204X1-BK1 Discrete Output Card Module

The Emerson SE4002S1T2B6 KJ3204X1-BK1 is a discrete output card module designed for industrial automation systems, offering precise control over multiple output devices. This module is part of Emerson’s comprehensive range of process automation products, delivering high-quality performance in demanding applications. With its ability to control up to 8 discrete outputs, it is well-suited for environments requiring reliable and scalable automation solutions.

The module is engineered for use in Emerson DeltaV control systems and is widely used in industries such as energy, manufacturing, and water treatment. Its compact form and high-density functionality make it ideal for installation in space-constrained environments, offering flexibility and ease of integration into existing systems.

Technical Specifications

The Emerson SE4002S1T2B6 KJ3204X1-BK1 Discrete Output Card Module includes the following key specifications:

Product Applications

The Emerson SE4002S1T2B6 KJ3204X1-BK1 module is ideal for a wide range of industrial applications, such as:

• Industrial Automation: Used for controlling solenoids, relays, and other discrete devices in automation systems.

• Manufacturing Processes: Suitable for controlling devices on production lines, providing precise digital output signals for machines and equipment.

• Energy and Utilities: Controls equipment in power generation, transmission, and distribution systems, ensuring seamless operation in critical infrastructure.

• Water and Wastewater Management: Enables the control of valves and other devices in water treatment plants, ensuring smooth operations and regulatory compliance.

• Safety Systems: Integral to safety systems, triggering alarms or shutdown procedures when necessary.

Product Advantages

• High Density: The module offers 8 output channels in a compact form factor, enabling high-density control in small spaces.

• Reliable Operation: Designed with industrial environments in mind, it is built to withstand harsh conditions, including a wide operating temperature range of -20°C to +60°C.

• Flexible Integration: Compatible with Emerson DeltaV systems and supports Modbus and Ethernet communication protocols, providing flexible integration options.

• Protection Features: Includes overload, short-circuit, and overcurrent protection, ensuring the module and connected equipment are safeguarded from damage.

• Durability: Designed to meet the rigors of industrial environments, the module ensures long-lasting reliability and high performance.

• Easy Installation: The module features DIN rail mounting, simplifying the installation process and minimizing downtime during system integration.

• Energy Efficiency: Operates efficiently with a +24V DC power supply, reducing overall energy consumption.

FAQ

1. What power supply does the SE4002S1T2B6 KJ3204X1-BK1 require?

The module requires a 24V DC power supply for proper operation.

2. How many discrete outputs are available with this module?

This module provides 8 discrete outputs, allowing you to control a variety of industrial devices.

3. Can the SE4002S1T2B6 KJ3204X1-BK1 be used in safety-critical systems?

Yes, this module is designed to integrate with safety systems, controlling shutdown devices and alarms in case of an emergency.

4. What type of protection features are included with the SE4002S1T2B6 KJ3204X1-BK1?

The module includes overcurrent, overload, and short-circuit protection to safeguard both the module and connected devices.

5. How does the SE4002S1T2B6 KJ3204X1-BK1 communicate with other systems?

It supports Modbus and Ethernet communication protocols, allowing easy integration with other control systems.

6. Is the SE4002S1T2B6 KJ3204X1-BK1 suitable for outdoor installations?

While it is designed for industrial environments, its operating temperature range of -20°C to +60°C ensures it can operate effectively in outdoor conditions.

7. Can this module be used in Emerson DeltaV systems?

Yes, the SE4002S1T2B6 KJ3204X1-BK1 is specifically designed to integrate seamlessly with Emerson DeltaV control systems.

8. What are the mounting options for this module?

The module can be mounted using a DIN rail, simplifying installation in control panels or cabinets.

9. How can I protect the SE4002S1T2B6 KJ3204X1-BK1 from electrical surges?

The module features built-in overload, overcurrent, and short-circuit protection to safeguard it from electrical surges.

10. Where can I find more information about this module and its compatibility with other Emerson products?

For more details, please contact us for technical support or product compatibility questions.
