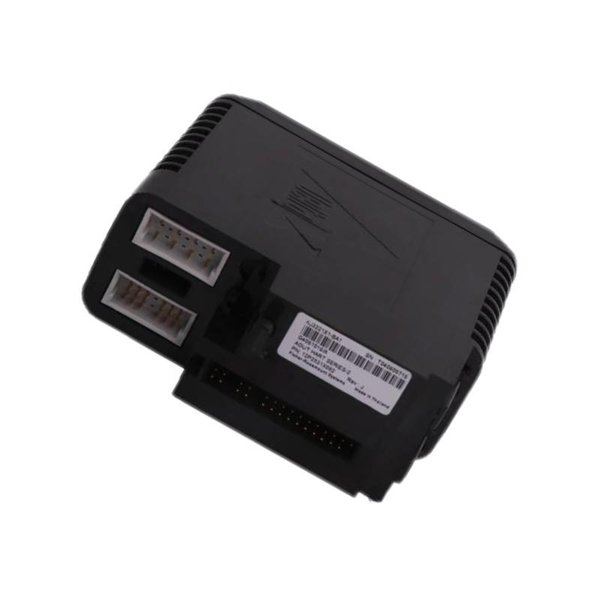

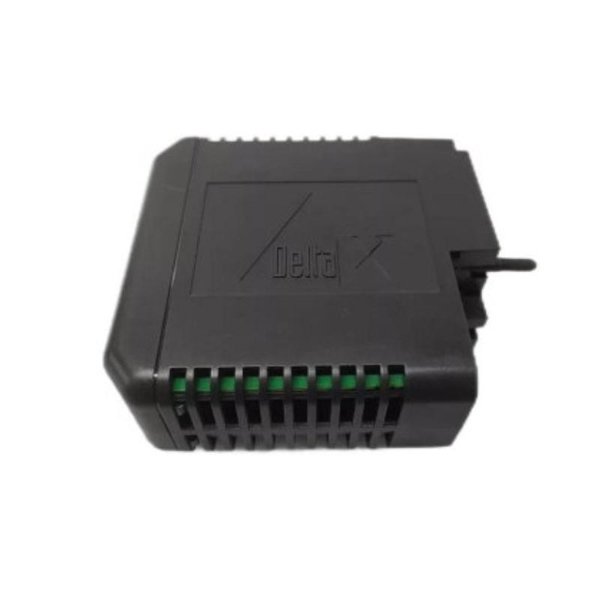

Emerson KJ3231X1-BA1 Isolated Input Module

The Emerson KJ3231X1-BA1 is a high-performance isolated input module designed for DeltaV distributed control systems. It provides electrical isolation and accurate signal acquisition for analog and digital inputs, ensuring reliable operation and protection of the control system from transient voltages and ground loops.

Key Features

• Provides isolated input channels to protect the control system

• Supports both analog and digital signal inputs

• High accuracy and stable signal acquisition

• Compatible with DeltaV distributed control systems

• Reduces noise and ground loop interference

• Easy integration with existing DeltaV hardware and software

• Rugged design suitable for industrial environments

Technical Specifications

Industry Applications

• Power Generation – turbine and generator monitoring

• Oil & Gas – process control and safety systems

• Chemical & Petrochemical – analog/digital process monitoring

• Manufacturing – machinery and process automation

• Water & Wastewater – pump and treatment system control

Advantages

• Provides robust isolation to protect control systems

• Accurate and stable signal measurement for process control

• Reduces noise and interference from electrical systems

• Easy to install and integrate with DeltaV systems

• Rugged design suitable for harsh industrial environments

• Supports both analog and digital input signals

• Enhances system reliability and operational safety

Frequently Asked Questions (FAQ)

Q1: What is the main function of this module?

It provides isolated input channels for analog and digital signals to protect and interface with DeltaV control systems.

Q2: How many input channels does it have?

8 isolated input channels.

Q3: What types of input signals are supported?

4–20 mA, 0–10 V, and digital logic levels.

Q4: What is the isolation rating?

1500 V RMS between channels and the system.

Q5: What is the accuracy of the module?

±0.1% of full scale.

Q6: What is the operating temperature range?

0 °C to +60 °C.

Q7: Can it be mounted on a DIN rail?

Yes, it supports DIN rail or rack mounting.

Q8: What are the dimensions?

Approx. 120 mm × 25 mm × 110 mm.

Q9: Is it suitable for harsh industrial environments?

Yes, it is designed for rugged industrial conditions.

Q10: Which industries commonly use this module?

Power Generation, Oil & Gas, Chemical & Petrochemical, Manufacturing, and Water & Wastewater.
