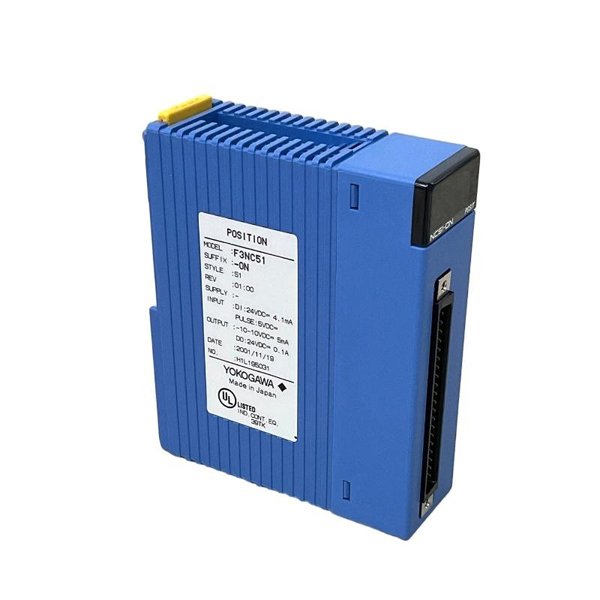

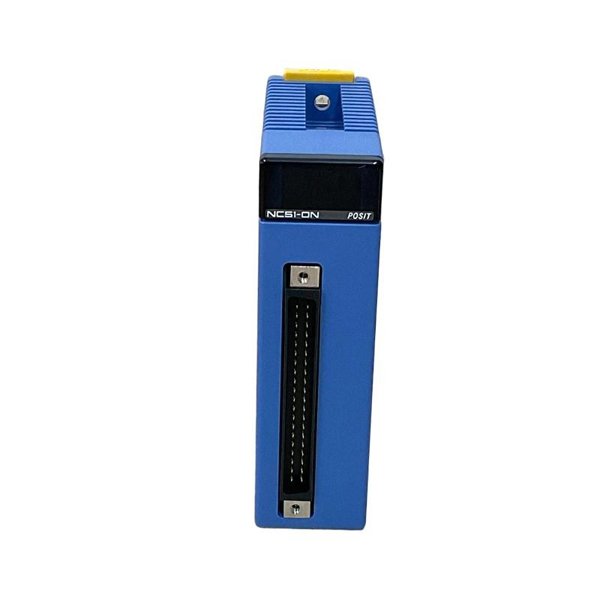

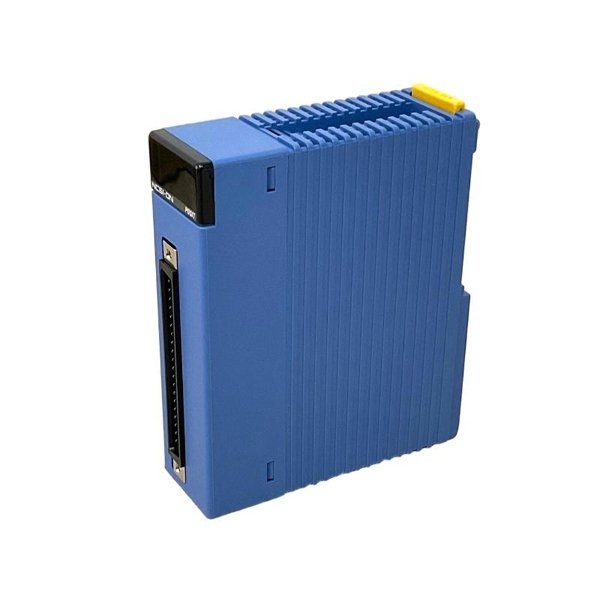

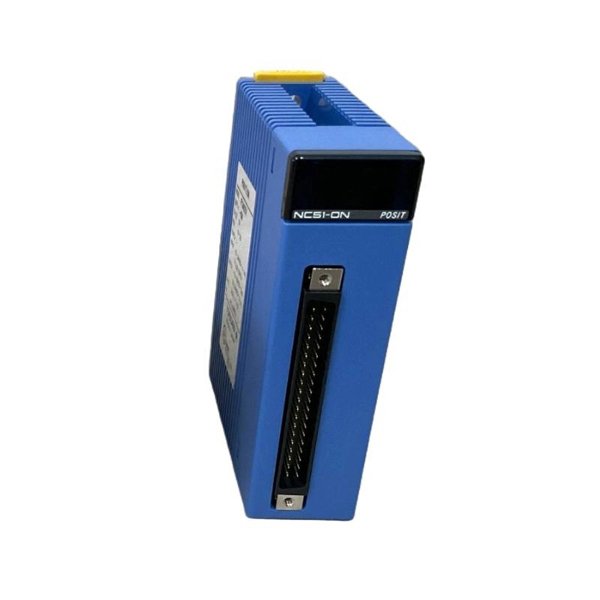

Yokogawa F3NC51-0N Positioning Module

The Yokogawa F3NC51-0N Positioning Module is a high-performance motion control unit developed for precision automation applications. As part of the Yokogawa FA-M3 series, this module delivers exceptional control capabilities for servo and stepper motors, enabling complex and accurate motion sequences within industrial environments.

The F3NC51-0N supports high-speed motion processing, synchronized multi-axis control, and flexible configuration to meet the needs of advanced machinery and production lines. Designed for integration with FA-M3 PLC systems, it combines reliability with advanced diagnostics and configuration tools, making it an ideal choice for applications that demand accuracy, efficiency, and operational stability.

Product Specifications

Applications

The F3NC51-0N Positioning Module is designed for advanced motion control applications where precision and reliability are critical. Typical use cases include:

• CNC Machines: Precise multi-axis control for cutting, milling, and drilling.

• Robotics: High-accuracy motion control for assembly robots and pick-and-place systems.

• Packaging Systems: Coordinated motion for high-speed labeling and filling lines.

• Textile Equipment: Synchronization in weaving and cutting operations.

• Printing and Converting: Ensuring exact alignment during high-speed printing processes.

• Semiconductor and Electronics Manufacturing: Ultra-precise control in automated assembly lines.

Product Advantages

• Advanced Multi-Axis Control: Capable of controlling up to four axes simultaneously.

• High-Speed Operation: Optimized for rapid motion command execution with minimal latency.

• Enhanced Precision: Supports absolute and incremental positioning for diverse application needs.

• Smooth Motion Profiles: Configurable acceleration and deceleration curves for improved machine stability.

• Fault Detection and Diagnostics: Built-in error detection for encoder failures, motor overload, and communication issues.

• Modular Design: Easy integration into Yokogawa FA-M3 PLC systems for scalable automation solutions.

• Compact and Durable: Space-saving structure with robust industrial-grade construction.

FAQ

1. What types of motors are supported by F3NC51-0N?

   The module supports both servo and stepper motors with compatible drivers.

2. How many control axes can this module manage?

   It supports up to four independent motion axes.

3. Does the module allow synchronized motion across axes?

   Yes, it supports axis synchronization for coordinated movement.

4. Is absolute positioning supported?

   Yes, the module works with both absolute and incremental encoders.

5. What is the communication method for data exchange?

   It uses Yokogawa’s FA-M3 dedicated communication protocol for high-speed data transfer.

6. Can acceleration and deceleration profiles be customized?

   Yes, the module allows full configuration of acceleration and deceleration rates.

7. Does the F3NC51-0N provide diagnostic features?

   Yes, it includes comprehensive diagnostics for motor and encoder feedback errors.

8. What is the typical response time for motion commands?

   The module is designed for high-speed response suitable for real-time applications.

9. Is there a configuration tool available for this module?

   Yes, it can be configured using Yokogawa’s FA-M3 programming environment.

10. Can the module be used with PLC logic for complex sequences?

    Yes, it integrates seamlessly with FA-M3 PLC systems for advanced control logic.
