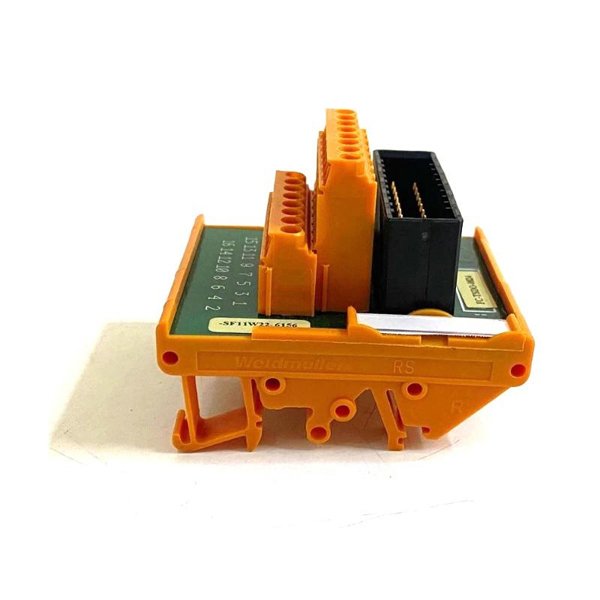

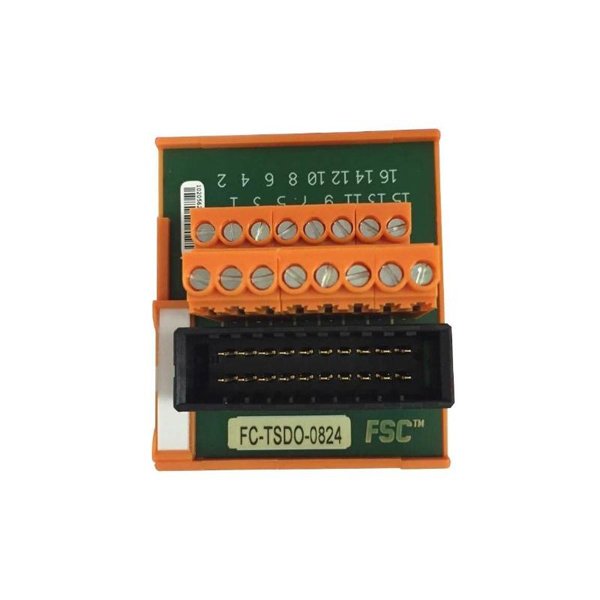

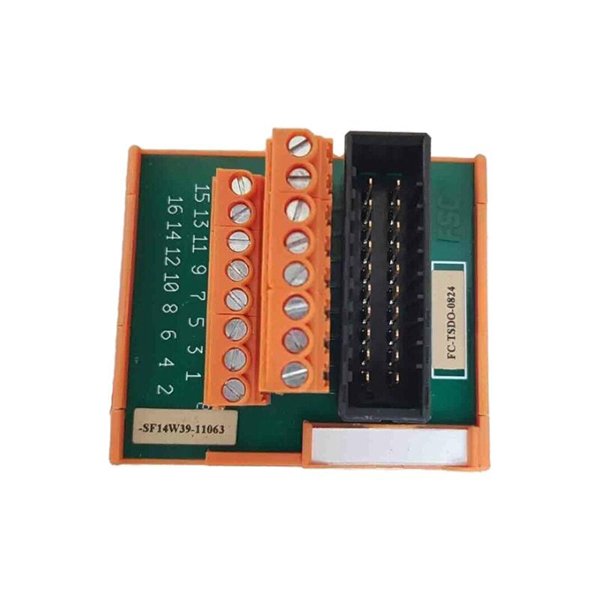

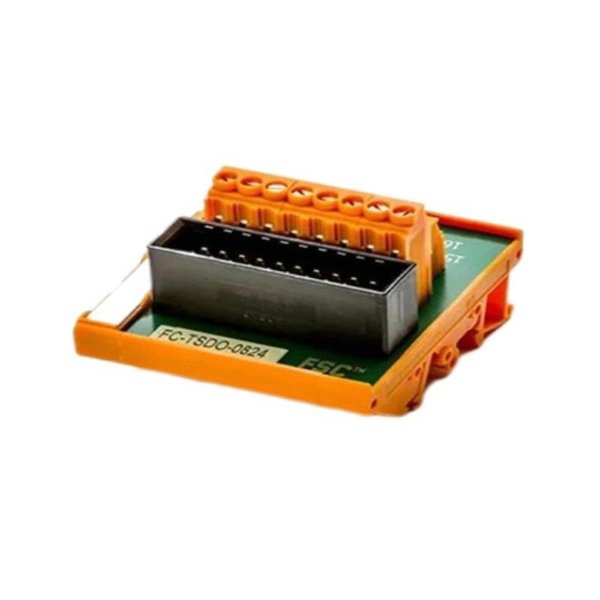

Honeywell FC-TSDO-0824 Safe Digital Output FTA
Manufacturer:Honeywell
Product Number:FC-TSDO-0824
Product Type:Safe Digital Output FTA
Origin:USA
Dimensions:60 x 70 x 58 mm
Weight:0.5 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell FC-TSDO-0824 is a Safe Digital Output Field Terminal Assembly (FTA) designed for use in safety-related applications within industrial automation systems. It is a component of Honeywell’s safety system architecture, providing reliable digital output control with fail-safe mechanisms. This model is engineered to meet stringent safety standards, making it suitable for Safety Instrumented Systems (SIS) that demand high integrity and dependable operation.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | FC-TSDO-0824 |
| Product Type | Safe Digital Output FTA |
| Number of Channels | 8 channels |
| Output Type | Digital Output (Fail-safe) |
| Output Voltage | 24 VDC nominal |
| Output Current per Channel | Up to 0.5 A |
| Output Type Configuration | Sourcing |
| Diagnostics | Channel-wise diagnostics with fault indication |
| Safety Integrity Level (SIL) | Suitable for SIL2/SIL3 (based on system configuration) |
| Wiring Type | Screw Terminal Block |
| Compatible Controllers | Honeywell Safety Manager (SM), FSC |
| Hot Swappable | No |
| Power Supply | Supplied via system backplane |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection | Short circuit and overvoltage protection |
| Dimensions | 60 x 70 x 58 mm |
| Weight | 0.5 kg |
| Mounting | DIN Rail |
| Certification | CE, ATEX, IECEx (for hazardous environments) |
Applications
The FC-TSDO-0824 is widely used in:
Emergency Shutdown Systems (ESD)
Fire & Gas Systems (F&G)
Chemical and Petrochemical Plants
Offshore Oil and Gas Platforms
Refineries
Power Generation Facilities
It provides precise and fail-safe control of actuators, solenoids, relays, and other field devices that require secure ON/OFF commands in safety-critical environments.
Advantages
Fail-safe Outputs: Ensures safe shutdown in case of fault or power loss.
Safety Compliance: Designed to meet SIL2/SIL3 applications, ensuring system-level reliability.
Advanced Diagnostics: Built-in diagnostics help detect open load, short circuits, and other failures at the channel level.
Field-proven Reliability: Used across global industries with proven uptime in mission-critical applications.
Compact Footprint: Minimal space requirement in control panels, facilitating easy integration.
System Compatibility: Seamless operation with Honeywell’s SM and FSC safety systems.
Rugged Design: Built for harsh industrial environments including hazardous areas with ATEX and IECEx certification.
Frequently Asked Questions (FAQ)
Q1: What is the output voltage rating of the FC-TSDO-0824?
A1: The output voltage is nominally 24 VDC.
Q2: Is the FC-TSDO-0824 suitable for SIL3 applications?
A2: Yes, it is suitable for SIL2/SIL3 depending on system configuration and redundancy.
Q3: How many output channels are available in this module?
A3: The module provides 8 digital output channels.
Q4: Can the FC-TSDO-0824 be hot-swapped?
A4: No, this model does not support hot-swapping and should be replaced during system downtime.
Q5: What type of output does the module provide – sourcing or sinking?
A5: The outputs are of the sourcing type.
Q6: Is this FTA compatible with non-Honeywell safety systems?
A6: It is specifically designed for Honeywell SM and FSC systems and may not be compatible with other brands without integration support.
Q7: What protection features are built into the FC-TSDO-0824?
A7: It includes short circuit and overvoltage protection.
Q8: Can this module be used in hazardous environments?
A8: Yes, it has certifications like ATEX and IECEx for hazardous areas.
Q9: What is the typical installation method?
A9: It is designed for DIN rail mounting.
Q10: What diagnostics features are included?
A10: The module provides channel-level diagnostics for fault detection and status reporting.
