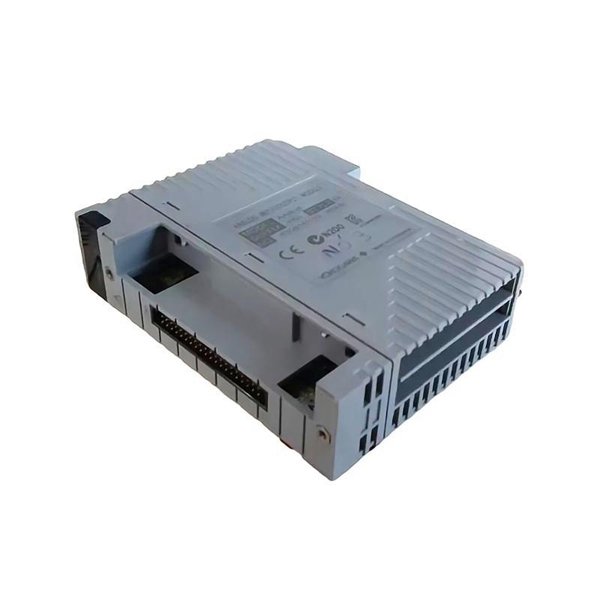

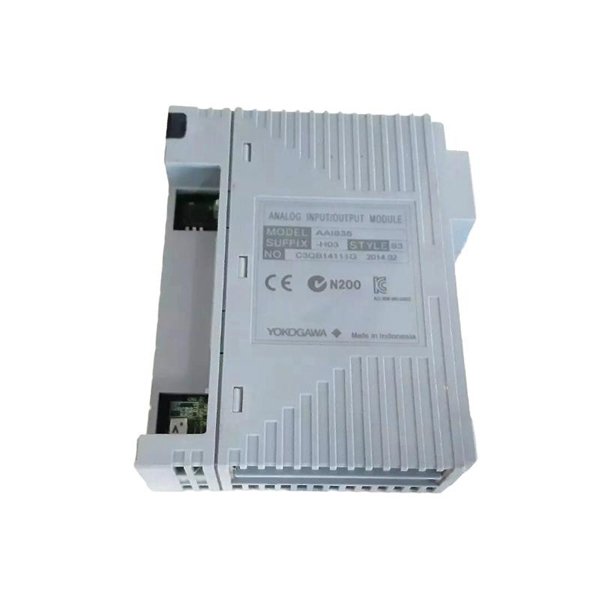

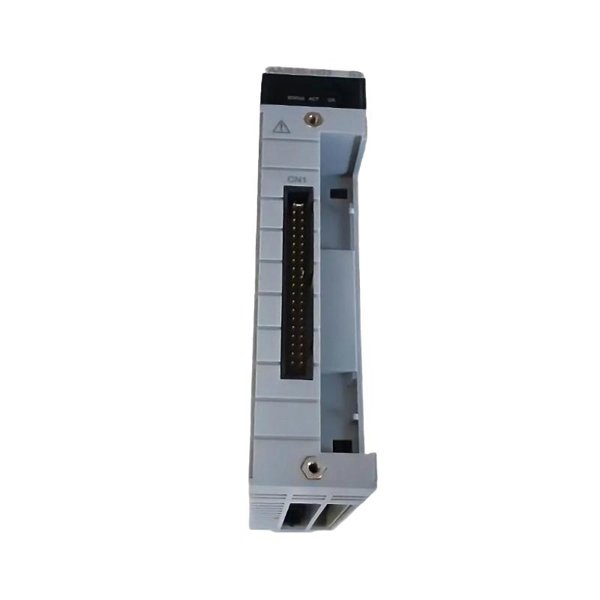

Yokogawa AAI835-S03 Analog I/O Module

The Yokogawa AAI835-S03 Analog I/O Module is a high-performance input/output interface designed for industrial process automation systems. This module is part of the Yokogawa CENTUM CS 3000 and CENTUM VP distributed control system (DCS) family, delivering reliable, precise, and stable analog signal processing. It is engineered for environments that demand accurate data acquisition and control, such as power generation, oil & gas, petrochemicals, water treatment, and manufacturing.

Equipped with advanced noise suppression, galvanic isolation, and robust signal filtering capabilities, the AAI835-S03 ensures optimal signal integrity even in electrically noisy environments. It supports multiple analog input and output configurations, making it a flexible solution for process control engineers seeking both scalability and accuracy.

Product Parameters

Product Applications

The Yokogawa AAI835-S03 plays a critical role in a wide range of industrial automation processes where precise analog signal measurement and control are required. Its typical applications include:

• Power Generation Plants – Monitoring turbine parameters, controlling boiler operations, and managing steam systems.

• Oil & Gas Industry – Measuring pressure, flow, and temperature for pipeline and refinery operations.

• Chemical & Petrochemical Plants – Controlling reactors, distillation columns, and chemical dosing systems.

• Water & Wastewater Treatment – Managing pump stations, filtration systems, and chemical dosing units.

• Manufacturing Lines – Monitoring and controlling temperature, speed, and pressure in production equipment.

• Marine and Offshore Platforms – Process monitoring in harsh environments with high reliability.

Product Advantages

• High Signal Accuracy – Ensures precise measurement and control of process variables.

• Robust Isolation – Protects both the system and operators from electrical faults and reduces noise interference.

• Versatile Signal Handling – Supports multiple input and output ranges for greater flexibility.

• Modular Design – Easy replacement and upgrade without system downtime.

• Reliable in Harsh Environments – Operates stably under wide temperature and humidity ranges.

• Seamless DCS Integration – Fully compatible with Yokogawa CENTUM systems for smooth communication and control.

• Low Power Consumption – Energy-efficient design reduces operational costs.

• Long-Term Stability – Built for continuous operation in mission-critical industries.

FAQ

1. What types of analog signals does the AAI835-S03 support?

   It supports both 4–20 mA current signals and 1–5 V voltage signals.

2. Can the input and output channels be configured independently?

   Yes, each channel can be configured for current or voltage mode as required.

3. What is the resolution of the module’s analog signal processing?

   The module offers 12-bit resolution or higher depending on system configuration.

4. Is there channel-to-channel isolation in the AAI835-S03?

   Yes, each channel is galvanically isolated to prevent signal interference.

5. Does it support HART communication signals?

   It can pass through HART signals when used with compatible Yokogawa hardware.

6. What is the maximum update rate for signal acquisition?

   The update rate depends on the DCS configuration but typically supports high-speed scanning.

7. How is signal noise minimized in this module?

   It features advanced filtering and shielding techniques to reduce electrical noise.

8. Can this module be hot-swapped during system operation?

   Yes, it supports hot-swapping in redundant system configurations.

9. What type of wiring terminals are used?

   The module uses removable terminal blocks for easy maintenance.

10. Is the module compatible with all Yokogawa CENTUM VP control cards?

    Yes, it is fully compatible with CENTUM VP and CS 3000 systems.
