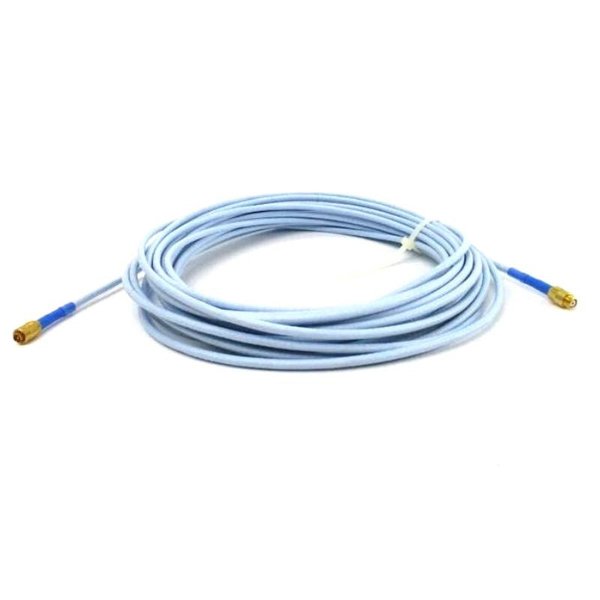

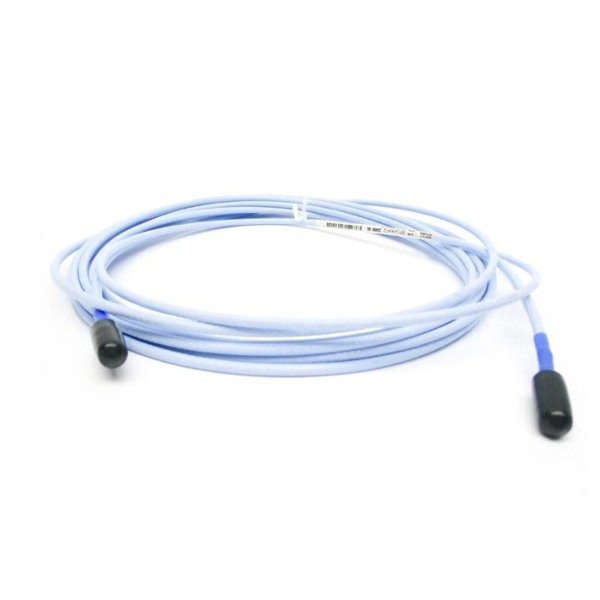

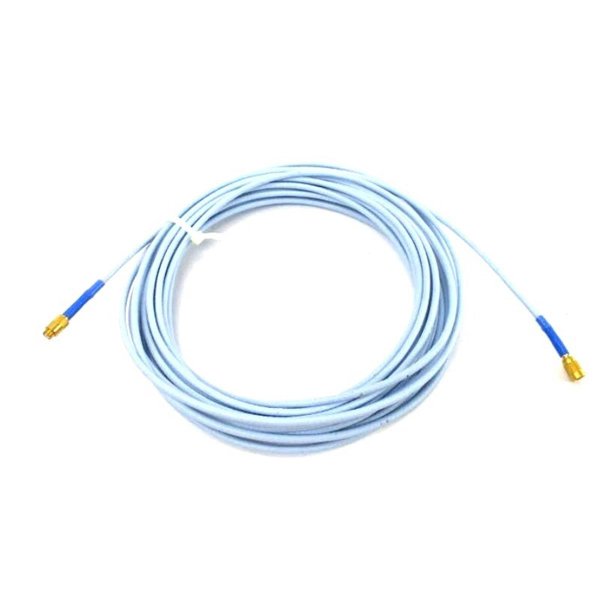

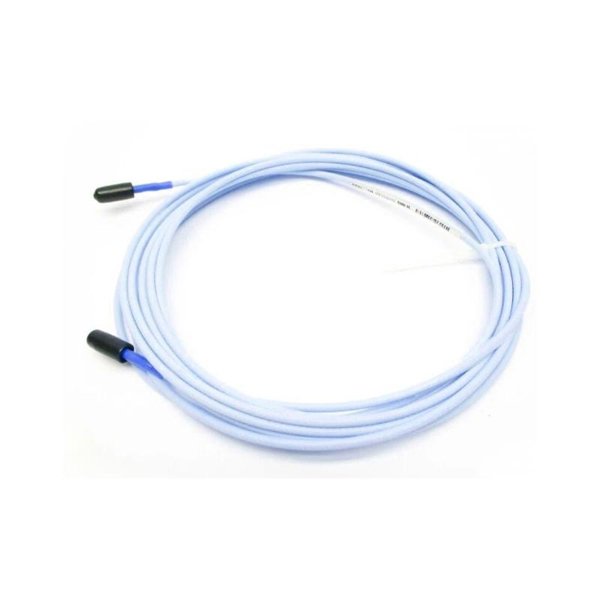

Bently Nevada 330130-060-00-00 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-060-00-00
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:6.0 meters
Weight:0.204 kg
Views:46
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-060-00-00 is a 3300 XL 8 mm Standard Extension Cable used in conjunction with 3300 XL Proximity Probes and Proximitor Sensors. This 6.0-meter cable transmits the signal between the probe and the sensor, enabling precise vibration and position monitoring of rotating equipment. It features a robust FEP-insulated triaxial cable, with optional configurations for environmental resistance and high temperature applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-060-00-00 |
| Cable Type | Triaxial, 75 Ω, FEP insulation |
| Length | 6.0 meters (19.7 feet) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| DC Resistance (Center Conductor) | 1.32 ± 0.21 Ω |
| DC Resistance (Outer Conductor) | 0.39 ± 0.08 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated ClickLoc coaxial |
| Weight | 0.204 kg |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Armor (Optional) | Stainless steel with FEP jacket |
| FluidLoc Option | Available for leak prevention |
Applications
-
Used with Bently Nevada 3300 XL Proximity Transducer Systems
-
Suitable for vibration and position monitoring on rotating machines
-
Works in fluid-film bearing environments
-
Keyphasor and speed reference signal systems
-
Installed in steam turbines, compressors, and electric motors
Product Advantages
-
High EMI/RFI immunity ensures reliable signal integrity
-
ClickLoc connectors allow secure, tool-free connection
-
Compatible with standard and extended temperature probes
-
Backward compatible with non-XL systems
-
Optional FluidLoc version resists oil ingress
-
High tensile strength reduces risk of disconnection
-
Modular and interchangeable design simplifies spares management
FAQ
Q1: What is the function of the 330130-060-00-00 cable?
A1: It connects the proximity probe to the Proximitor Sensor, transmitting the signal without loss.
Q2: What type of insulation does this cable have?
A2: It uses FEP (fluoroethylene propylene) insulation.
Q3: Can this cable be used in high-temperature environments?
A3: Yes, extended temperature range versions are available.
Q4: Is this cable armored?
A4: The standard version is not armored, but armored options are available.
Q5: Does the cable support FluidLoc technology?
A5: Yes, there is a FluidLoc version to prevent fluid leakage.
Q6: What type of connectors are used?
A6: It uses gold-plated ClickLoc connectors for secure connection.
Q7: What’s the minimum bend radius for this cable?
A7: 25.4 mm (1.0 inch).
Q8: Is the cable backward compatible with older Bently Nevada systems?
A8: Yes, it is electrically and physically compatible with 3300 non-XL series.
Q9: What is the weight of the 6.0-meter version?
A9: 0.204 kg.
Q10: Is the connector protector included?
A10: It is available as an option or accessory and recommended for environmental protection.
