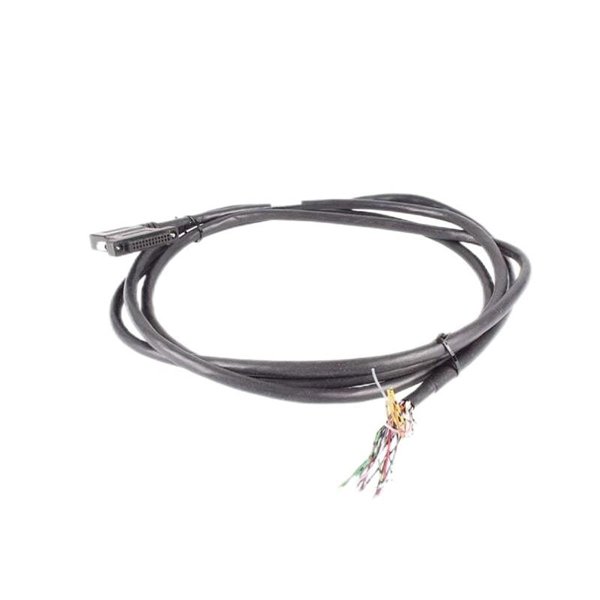

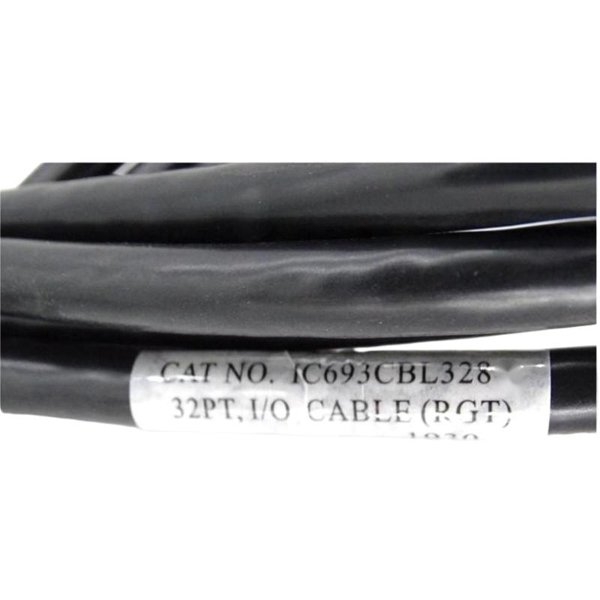

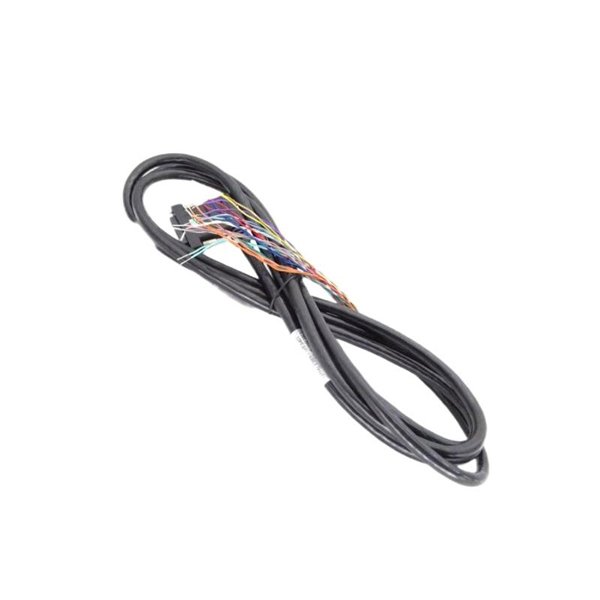

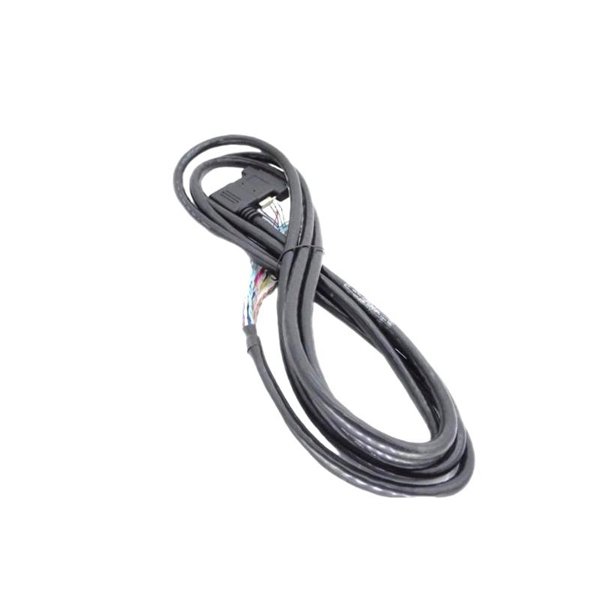

General Electric IC693CBL328 I/O Quick Connect Cable

The GE IC693CBL328 is a Quick Connect I/O Cable designed for high-efficiency modular connectivity within the GE Fanuc Series 90-30 programmable logic controller (PLC) systems. This specialized cable provides a convenient plug-and-play solution for connecting I/O modules without the need for custom wiring or complex installation processes. As part of GE’s broader family of reliable industrial automation components, the IC693CBL328 simplifies field wiring and reduces installation time by enabling fast interconnection of terminal blocks and base units.

This cable is factory-terminated with pre-molded connectors, ensuring secure and durable connections in demanding environments. Its ruggedized build and reliable shielding allow it to perform consistently in both high-vibration and electrically noisy environments, common across manufacturing floors, process plants, and logistics automation systems.

Technical Specifications

Product Applications

The IC693CBL328 is used to connect I/O interface modules quickly within compact or modular installations. It is especially beneficial in applications that require rapid deployment, modularity, or frequent system reconfiguration. The quick-connect feature minimizes wiring errors and downtime, making it ideal for fast-paced and high-availability industrial environments.

Typical application areas include:

• Automotive manufacturing lines needing quick component changeovers

• Food and beverage plants with modular machine design

• Pharmaceutical packaging lines where hygiene and modularity are critical

• Material handling systems with distributed I/O modules

• Small-scale process control stations requiring efficient and compact cabling

• Training and development setups in control labs or R&D centers

Product Advantages

• Quick Installation

  The factory-molded quick-connect interface reduces installation time by up to 70% compared to manual wiring.

• Error-Resistant

  Plug-and-play design reduces the risk of incorrect wiring, improving system reliability.

• Compact Cable Length

  Ideal for close-proximity connections inside control panels or PLC enclosures.

• Vibration and EMI Resistant

  Designed to resist industrial noise and mechanical vibration, maintaining signal integrity.

• GE Fanuc Optimized

  Fully compatible with Series 90-30 modules, ensuring seamless system integration.

• Zero Configuration Needed

  Once connected, the modules communicate without further setup or software changes.

• Durable Build

  Reinforced connectors and shielded cabling ensure long operational life.

• Cost-Effective

  Reduces labor cost and complexity associated with traditional wiring.

• Maintenance Friendly

  Easily disconnect and replace without needing to rewire terminals or labels.

• Regulatory Approved

  Meets international safety and compliance standards for industrial automation systems.

Frequently Asked Questions (FAQ)

1. What is the maximum current this cable can safely handle in typical I/O operations?

   The IC693CBL328 is designed for low-voltage signal applications and typically supports currents up to 1A per signal path. It is not intended for high-current power transmission.

2. Does the IC693CBL328 come with a factory warranty?

   Yes, cables purchased through official GE or authorized distributors usually include a standard 12-month limited warranty covering manufacturing defects.

3. Can this cable be routed through flexible conduits in control cabinets?

   Absolutely. Its moderate flexibility allows it to be installed through standard 3/4″ or 1″ conduits, provided bend radius guidelines are followed.

4. How should I verify the cable’s integrity after extended use in a vibrating environment?

   Periodically inspect the connector ends for looseness, check the cable sheath for cuts or abrasions, and use a continuity tester to ensure signal integrity.

5. Is the cable shielding grounded through the connectors, or must it be grounded externally?

   The cable’s shielding is internally terminated to the connector housing, which interfaces with grounded equipment chassis for effective EMI protection.

6. Are the connector ends keyed to prevent incorrect mating with other ports?

   Yes, the quick-connect ends are fully keyed to prevent misalignment or incorrect insertion into incompatible ports.

7. Does this cable support hot-swapping of I/O modules while the system is powered?

   No. It is strongly advised to power down the system before disconnecting or reconnecting this cable to avoid signal errors or potential damage.

8. How is this model different from the IC693CBL324 cable?

   The IC693CBL328 is a quick-connect cable designed for rapid plug-in between I/O modules, whereas the IC693CBL324 is generally used for fixed output wiring with different pinouts and purposes.

9. What is the recommended minimum bend radius when installing this cable?

   A bend radius of at least 10 times the cable’s outer diameter (approx. 100–150 mm) is recommended to preserve shielding and conductor integrity.

10. Can I use multiple IC693CBL328 cables in parallel within the same enclosure?

    Yes, multiple cables can be used in parallel. Ensure that routing is organized to avoid cross-talk and physical strain on connectors.
