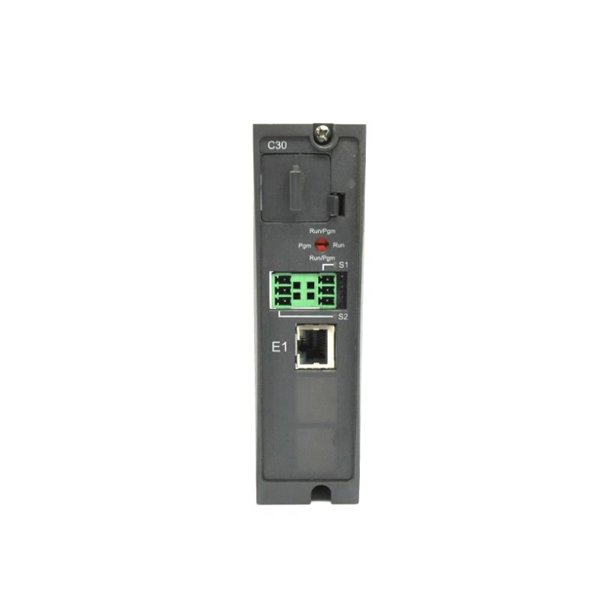

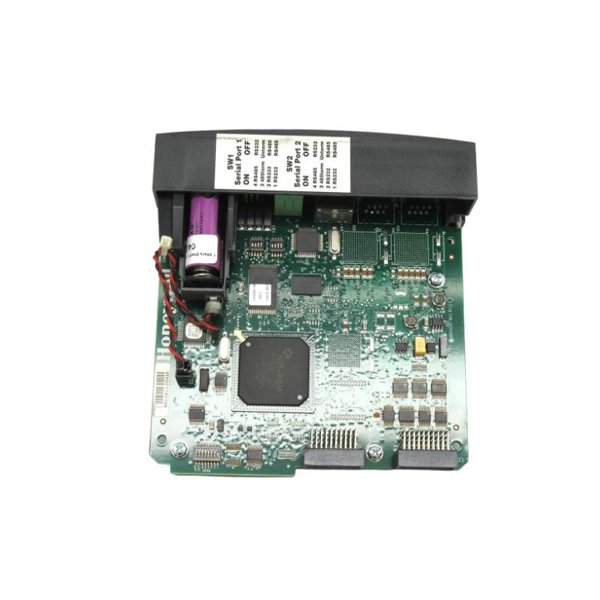

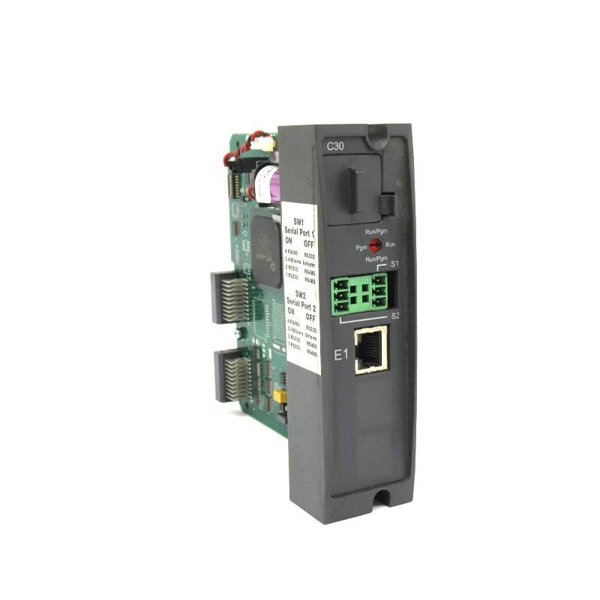

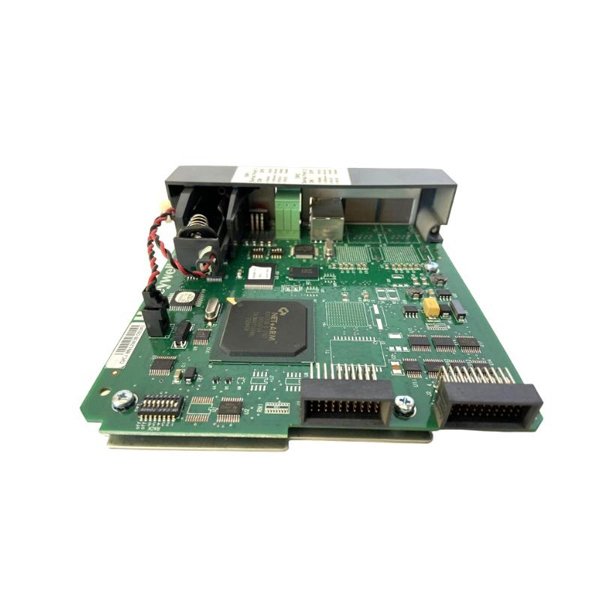

Honeywell 900C32-0244-00 HC900 C30 Controller CPU

The Honeywell 900C32-0244-00 is a robust and reliable HC900 C30 Controller CPU, engineered for flexible and efficient control of process automation systems. As part of the Honeywell HC900 Hybrid Control System, this CPU module is designed to deliver consistent performance across a broad range of industrial applications, from batch processing and thermal control to water treatment and utilities management.

This CPU supports a hybrid control architecture, seamlessly combining analog, digital, and specialty I/O modules with advanced programming capabilities. It offers scalable control solutions tailored to both simple and complex operations, with a focus on user-friendly configuration and dependable operation under demanding conditions.

Product Specifications

Product Applications

The Honeywell 900C32-0244-00 controller CPU is widely employed across diverse industrial sectors due to its adaptability and reliability. Typical application areas include:

• Thermal Process Control: Effective control of furnaces, ovens, kilns, and multizone temperature systems ensuring precise thermal management.

• Batch Process Automation: Ideal for pharmaceutical, chemical, and food & beverage batch operations requiring recipe control and sequencing.

• Water and Wastewater Treatment: Controls pumps, valves, chemical dosing, and level monitoring to meet stringent regulatory requirements.

• Boiler and Utility Systems: Reliable management of steam generation, burner control, and feedwater processes.

• Environmental and HVAC Controls: Automation of air handling units, filtration systems, and energy management.

• Industrial Process Control: General-purpose use in controlling machinery, conveyors, mixers, and packaging systems.

Product Advantages

• Reliable and Proven Control Platform: Built on Honeywell’s trusted HC900 platform, delivering high uptime and consistent performance in industrial environments.

• Flexible I/O Integration: Supports a broad range of analog, digital, and specialty I/O modules allowing customized control configurations.

• User-Friendly Programming: Utilizes the intuitive Hybrid Control Designer software for streamlined programming, diagnostics, and maintenance.

• Fast Control Loop Execution: Typical loop scan times under 25 milliseconds for up to 100 PID loops, enabling real-time process management.

• Robust Industrial Design: Certified for use in hazardous locations, including ATEX Zone 2 and Class I Division 2 environments, ensuring safety and compliance.

• Cost-Effective Hybrid Solution: Combines features of PLC and DCS systems to meet mid-tier control needs at an optimized cost.

• Wide Communication Compatibility: Supports Modbus and Ethernet protocols facilitating integration with various SCADA and DCS systems.

• Compact and Space-Saving: The small footprint and DIN rail mounting reduce panel space requirements without compromising performance.

Frequently Asked Questions (FAQ)

1. Q: What does the 900C32-0244-00 model specifically offer compared to other HC900 CPUs?

   A: It features enhanced firmware and extended memory for more complex control strategies, suitable for mid-level automation tasks.

2. Q: Is this controller suitable for hazardous locations?

   A: Yes, it carries certifications for ATEX Zone 2 and Class I Division 2, making it safe for such environments.

3. Q: What software is used to program this controller?

   A: The Honeywell Hybrid Control Designer software is the dedicated tool for configuration and programming.

4. Q: Can this CPU be used in redundant configurations?

   A: No, redundancy is not supported on C30 CPUs. For redundancy, Honeywell recommends the C70 series.

5. Q: What is the maximum number of I/O points supported?

   A: Up to 960 points of analog and digital I/O can be connected.

6. Q: Does it support Ethernet communication?

   A: Yes, it supports Ethernet and Modbus TCP protocols for network communication.

7. Q: What is the typical scan time for control loops?

   A: Approximately 25 ms per 100 PID loops, allowing timely control response.

8. Q: How is the power supplied to the CPU?

   A: The CPU operates on a 24 VDC power supply.

9. Q: What kind of I/O modules can be used?

   A: Analog input/output, digital input/output, thermocouple, RTD, and relay modules from the HC900 family are compatible.

10. Q: Is there any data retention during power failures?

    A: Yes, the CPU stores program and data in non-volatile memory to prevent loss during power interruptions.
