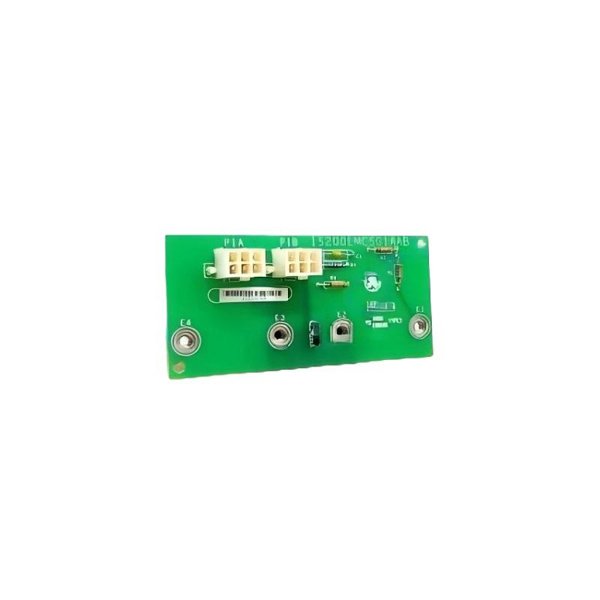

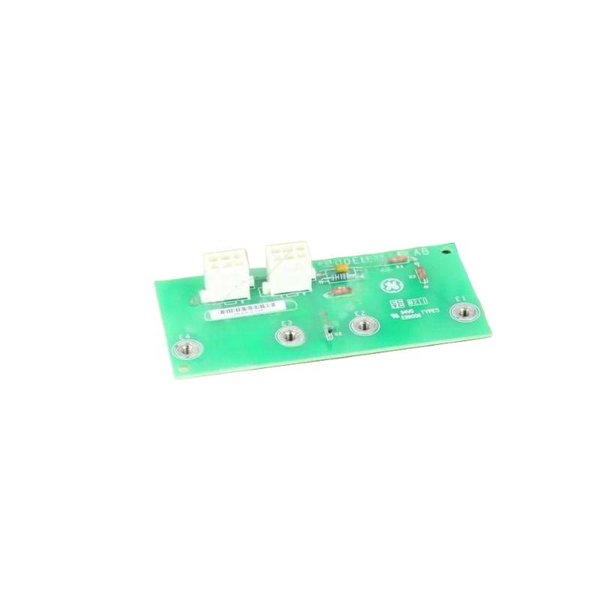

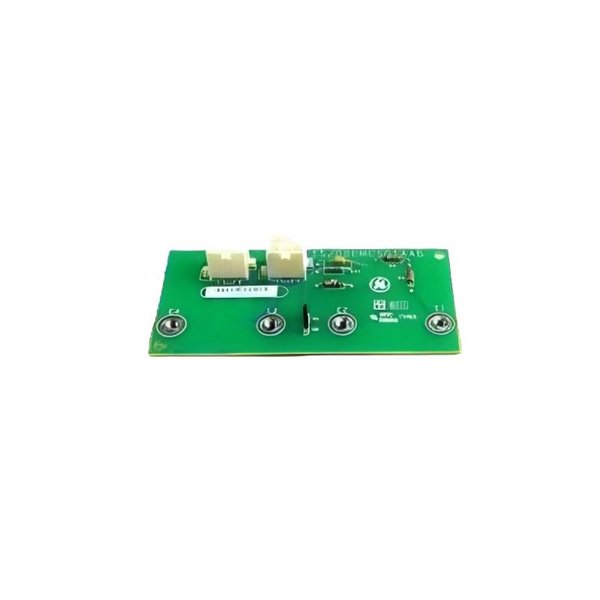

General Electric IS200EMCSG1A Multi-Bridge Connector Sensor Card

The GE IS200EMCSG1A is a sophisticated multi-bridge connector sensor card used in industrial control systems to enhance sensor connectivity and signal processing. This card allows the integration of multiple sensors into a single system, providing seamless data transfer between sensors and control systems. It plays a vital role in applications requiring precise measurements and real-time data acquisition.

Designed with industrial-grade materials, the IS200EMCSG1A ensures long-term reliability, high accuracy, and durability in demanding environments. With dimensions of 110.49 x 50.8 mm and weighing only 0.6 kg, this compact card is designed for easy integration into various control systems, enabling enhanced performance and efficient monitoring of industrial processes.

Technical Parameters

Product Applications

The GE IS200EMCSG1A Multi-Bridge Connector Sensor Card is designed for use in various industrial systems where sensor integration and signal processing are critical. Some of its key applications include:

1. Sensor Integration Systems: The card allows for the connection of multiple sensors to a central control system, ensuring efficient data acquisition from various sources.

2. Industrial Automation: It is widely used in industrial automation systems, enabling the transmission of sensor data to PLCs, SCADA systems, and other automation devices.

3. Temperature and Pressure Measurement Systems: The card is ideal for applications that require the collection of temperature, pressure, and other environmental parameters in real-time.

4. Data Acquisition Systems: It is used in systems that collect and process analog and digital signals from various sensors for monitoring, analysis, and control purposes.

5. Process Control Systems: The IS200EMCSG1A ensures accurate and reliable monitoring and control of industrial processes, improving system efficiency and performance.

6. Machine Condition Monitoring: It helps integrate sensors for monitoring machinery health, providing valuable data for predictive maintenance and system optimization.

Advantages

1. Compact and Lightweight: The IS200EMCSG1A features dimensions of 110.49 x 50.8 mm and weighs only 0.6 kg, making it easy to install in space-constrained environments while ensuring optimal system integration.

2. High-Accuracy Signal Processing: The card processes both analog and digital signals, offering precise and reliable data transmission for accurate system monitoring and control.

3. Wide Operating Temperature Range: With an operating temperature range of -40°C to +70°C, the card is designed to operate effectively in diverse environmental conditions, from industrial plants to outdoor installations.

4. Flexible Connector Options: The card supports multi-bridge connectors, providing flexibility in connecting a variety of sensors, improving system compatibility.

5. Durable and Robust Design: Built with industrial-grade materials, the card is designed to endure harsh conditions, ensuring long-term durability and minimizing the risk of failure in demanding applications.

6. Seamless Integration with Existing Systems: The card is engineered to integrate effortlessly into a wide range of industrial control systems, providing enhanced sensor connectivity and improved system performance.

7. Energy Efficient: Operating on a 24 V DC power supply, the card is energy-efficient, reducing operational costs while maintaining high performance.

8. Regulatory Compliance: The card is CE, UL, and RoHS certified, meeting global standards for safety, quality, and environmental impact.

9. Versatility: The IS200EMCSG1A can be used in a variety of applications, including sensor monitoring, data acquisition, and process control systems, making it a versatile solution for many industrial needs.

10. Improved System Monitoring: By providing real-time data from multiple sensors, the card helps optimize system performance and enables proactive maintenance and troubleshooting.

Frequently Asked Questions (FAQ)

1. What is the operating temperature range of the GE IS200EMCSG1A?

   • The board operates within a temperature range of -40°C to +70°C.

2. What are the dimensions of the IS200EMCSG1A card?

   • The card has dimensions of 110.49 x 50.8 mm.

3. How much does the IS200EMCSG1A board weigh?

   • The board weighs 0.6 kg.

4. What is the power supply requirement for the IS200EMCSG1A?

   • The card operates on a 24 V DC power supply.

5. What type of signal does the IS200EMCSG1A process?

   • The board processes both analog and digital input signals.

6. What type of connectors are used with the IS200EMCSG1A?

   • The card uses multi-bridge connectors, offering flexibility in sensor integration.

7. Can the IS200EMCSG1A be used in industrial automation systems?

   • Yes, the IS200EMCSG1A is ideal for industrial automation and data acquisition systems.

8. What applications is the IS200EMCSG1A suitable for?

   • The card is suitable for temperature, pressure measurement, data acquisition systems, and process control applications.

9. Is the IS200EMCSG1A certified for safety and environmental standards?

   • Yes, the card is CE, UL, and RoHS certified, ensuring it meets global safety and environmental standards.

10. How does the IS200EMCSG1A improve system performance?

    • By enabling seamless sensor integration and real-time data acquisition, the card enhances the overall performance of control systems and helps optimize industrial processes.
