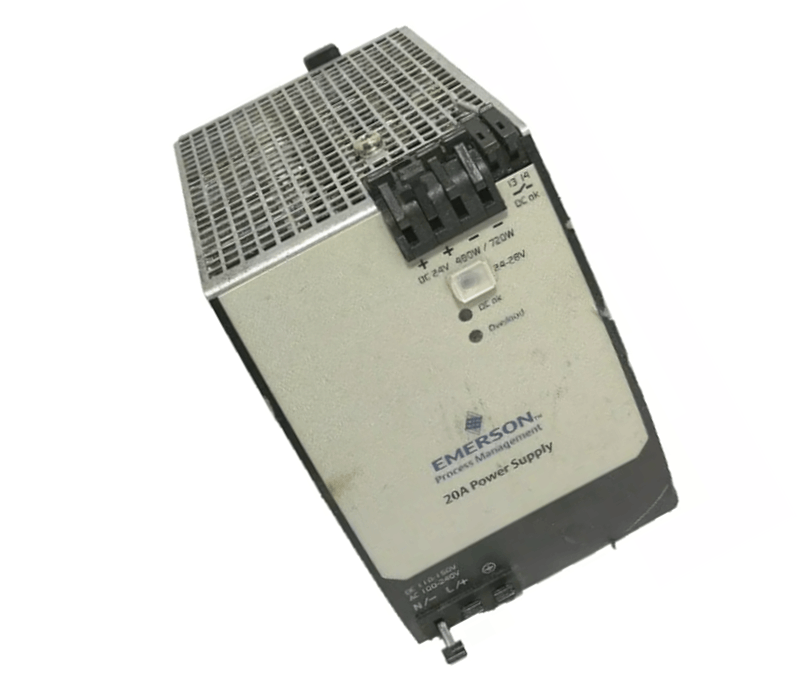

Emerson 1X00797H01L High-performance Power Module

The Emerson 1X00797H01L is a high-performance power module designed for use within Emerson’s DeltaV and Ovation distributed control systems (DCS). It provides reliable and efficient power to various DCS components, ensuring smooth operation of your industrial automation system.

Features

• High power density: Delivers 20 amps of output current in a compact size, saving valuable cabinet space.
• Active power factor correction (PFC): Improves overall system efficiency and reduces harmonic distortion on the power line.
• Wide input voltage range: Accommodates a variety of power sources, offering flexibility for global deployments.
• DIN rail mounting: Enables quick and easy installation within standard control cabinets.
• LED status indicators: Provides real-time visual feedback on the module’s operating condition for simplified troubleshooting.
• Reliable operation: Engineered for industrial environments, ensuring consistent performance under demanding conditions.
• DNV GL type approval: Suitable for marine applications, expanding its range of use cases.

Technical Specifications

• Output voltage: 24-28 VDC
• Output current: 20 amps
• Input voltage range: 12-28 VDC
• Power dissipation: 480 watts
• Dimensions: 5.25″ x 5.25″ x 1.75″ (13.3 cm x 13.3 cm x 4.4 cm)
• Weight: 3.5 lbs (1.6 kg)
• Operating temperature: 0-55°C (32-131°F)
• Storage temperature: -40-85°C (-40-185°F)
• Relative humidity: 5-95% non-condensing
