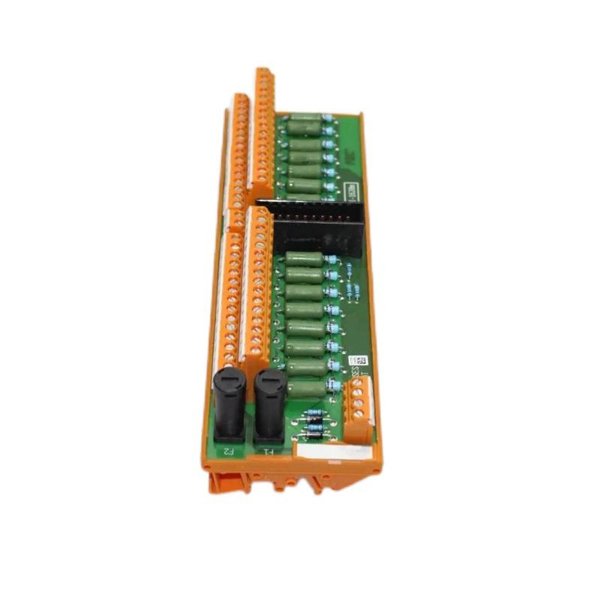

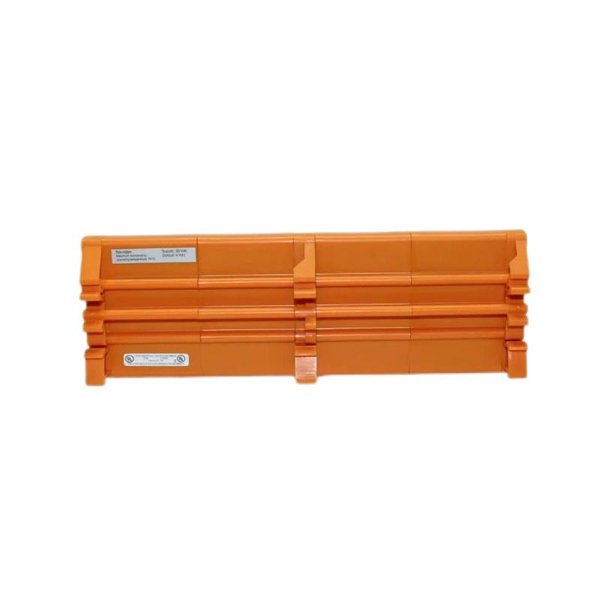

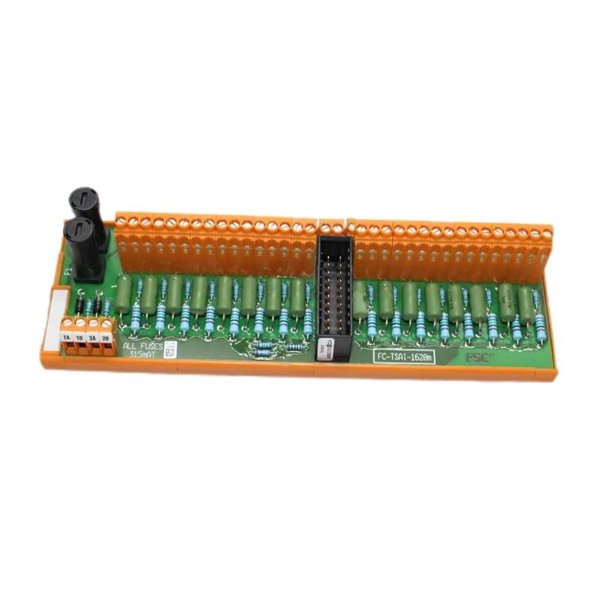

Honeywell FS-TSAI-1620M Safety Analog Input (FTA) Module

The Honeywell FS-TSAI-1620M is a high-performance safety analog input module designed specifically for Functional Test Automation (FTA) within safety instrumented systems (SIS). This module offers precise and reliable analog input processing to ensure accurate signal acquisition from various field devices such as transmitters and sensors.

Built to meet the highest functional safety standards, the FS-TSAI-1620M supports applications that demand stringent safety integrity levels (SIL), providing operators and engineers with confidence in system reliability and safety. Its compact design and efficient signal conditioning capabilities make it suitable for complex automation and control environments where safety is paramount.

The module’s robust engineering ensures consistent operation even under harsh industrial conditions including temperature fluctuations, electromagnetic interference, and mechanical vibration.

Technical Specifications

Applications

The FS-TSAI-1620M is widely used in industrial sectors requiring strict safety monitoring and control. Key applications include:

• Oil and Gas: Monitoring of pressure, temperature, and flow signals in safety shutdown systems.

• Chemical Processing: Analog input monitoring for reactors, distillation columns, and safety interlock systems.

• Power Generation: Measurement of critical analog signals in turbine control and emergency shutdown systems.

• Pharmaceutical Manufacturing: Safety signal acquisition to maintain compliance and protect sensitive processes.

• Water and Wastewater Treatment: Monitoring sensor data for safe operation of pumps, valves, and chemical dosing systems.

• Industrial Automation: Safety-critical signal acquisition for automated processes requiring fail-safe operation.

Advantages

• High Safety Integrity: Certified SIL 3 compliant, suitable for the most demanding safety systems.

• Precision and Accuracy: Provides high-resolution 16-bit analog input processing for reliable data acquisition.

• Robust Isolation: Ensures excellent isolation between channels and system, minimizing signal interference.

• Flexible Input Support: Compatible with various input signal types, including current and voltage signals.

• Compact and Lightweight: Small form factor (210 x 70 x 60 mm) and light weight (0.2 kg) simplify installation in tight control cabinets.

• Reliable Operation: Designed to operate in harsh industrial environments with temperature and humidity tolerance.

• Easy Integration: Seamlessly integrates into Honeywell’s safety control systems and infrastructure.

Frequently Asked Questions (FAQ)

Q1: How many analog input channels does the FS-TSAI-1620M support?

A1: It supports 16 analog input channels.

Q2: What types of input signals are compatible with this module?

A2: The module supports 4-20 mA, 0-20 mA, and voltage input signals.

Q3: What is the module’s accuracy level?

A3: The accuracy is ±0.1% of full scale.

Q4: Is the FS-TSAI-1620M certified for SIL 3 safety applications?

A4: Yes, it meets SIL 3 certification requirements.

Q5: What are the physical dimensions of this module?

A5: Dimensions are 210 x 70 x 60 mm.

Q6: What is the operating temperature range for the FS-TSAI-1620M?

A6: It operates between -20°C and +60°C.

Q7: Can this module be mounted on a DIN rail?

A7: Yes, it supports DIN rail and panel mounting.

Q8: What is the typical response time for signal acquisition?

A8: The response time is less than 50 milliseconds.

Q9: How much does the module weigh?

A9: The weight is approximately 0.2 kg.

Q10: Is the FS-TSAI-1620M compatible with Honeywell safety control systems?

A10: Yes, it is designed for seamless integration with Honeywell safety platforms.
