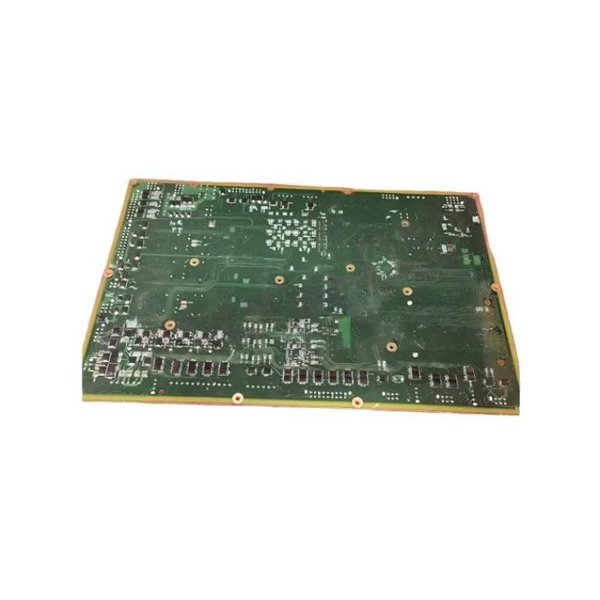

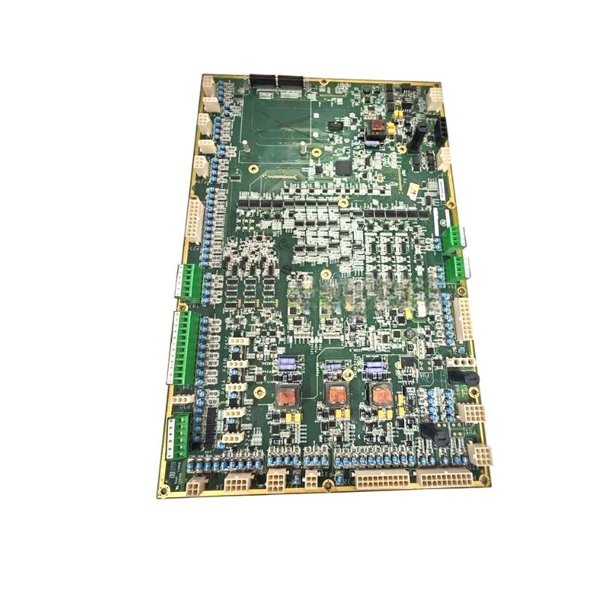

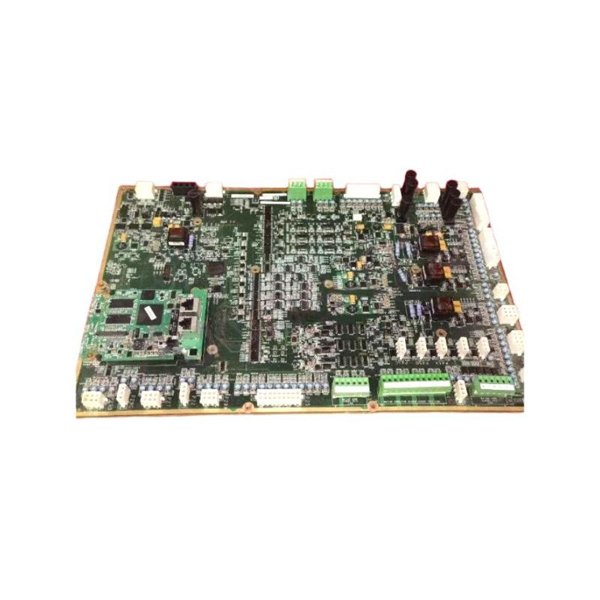

General Electric IS200WETAH1A Wind Turbine Mainboard

The GE IS200WETAH1A is a mainboard designed for use in wind turbine control systems, playing a vital role in managing and optimizing turbine functions. It is a part of the GE IS200 series, renowned for its robust performance, advanced features, and integration capabilities. This particular mainboard provides crucial functions such as pitch control, generator excitation, fault detection, and real-time communication between the turbine and its control system.

The IS200WETAH1A is engineered for use in both onshore and offshore wind turbines, where it helps ensure reliable and efficient energy generation. With its compact dimensions of 178 x 51 x 305 mm and a weight of 0.5 kg, this mainboard offers easy integration into the turbine control system, making it a versatile choice for modern wind energy solutions.

Built to operate in challenging environments, the IS200WETAH1A is designed to handle wide temperature ranges and can support multiple communication protocols, enabling seamless integration into larger turbine systems and providing real-time monitoring capabilities. This board ensures wind turbines operate efficiently, safely, and at their highest potential, contributing to optimal energy production.

Product Parameters

Product Applications

The GE IS200WETAH1A mainboard is primarily designed for controlling various aspects of wind turbine operations, contributing to efficient energy production and system health management. Its applications include:

• Pitch Control Systems: The board regulates the pitch of the wind turbine blades, adjusting them to optimize the turbine’s efficiency based on wind speed and direction. This ensures maximum energy capture while also protecting the turbine during high winds.

• Generator Excitation Control: The IS200WETAH1A manages the excitation of the turbine’s generator, ensuring proper voltage and current regulation for stable and efficient power generation.

• Fault Detection and Diagnostics: This mainboard is equipped with advanced diagnostic capabilities to monitor the turbine’s performance and detect any potential mechanical or electrical faults. It helps prevent downtime by alerting operators to issues before they result in serious failures.

• Real-time Communication: Through Ethernet and Modbus protocols, the IS200WETAH1A ensures seamless communication between the wind turbine control systems, enabling operators to monitor performance data and make real-time adjustments remotely.

• Energy Generation Optimization: The board optimizes the energy generation process by continuously adjusting control parameters such as pitch and excitation, helping the turbine run at peak efficiency.

Product Advantages

• Compact Design: With a size of 178 x 51 x 305 mm and a weight of just 0.5 kg, the IS200WETAH1A is lightweight and compact, making it easy to integrate into limited spaces in the turbine control cabinet. Its small form factor doesn’t compromise its performance, making it an ideal solution for various turbine designs.

• High Durability: The mainboard is designed to withstand extreme environmental conditions with an operating temperature range of -40°C to +70°C. This robustness ensures the board performs reliably in both onshore and offshore wind turbines.

• Advanced Communication Capabilities: The IS200WETAH1A supports Ethernet and Modbus protocols, ensuring that data can be communicated effectively between the wind turbine and its control systems, allowing for seamless integration with existing infrastructure.

• Enhanced Control Functions: The board offers precise control over key turbine functions such as pitch adjustment, excitation regulation, and fault monitoring, contributing to both optimal power generation and reliable operation.

• Flexibility in Integration: Designed for compatibility with other GE wind turbine controllers, the IS200WETAH1A is flexible enough to be used in a variety of wind turbine configurations, whether for new installations or retrofitting older systems.

• Energy Efficiency: By optimizing turbine performance through efficient control of its components, the IS200WETAH1A helps enhance energy production while minimizing operational costs. This contributes to the overall efficiency and economic viability of wind energy projects.

Frequently Asked Questions (FAQ)

1. What is the size of the GE IS200WETAH1A mainboard?

   • The mainboard’s dimensions are 178 x 51 x 305 mm.

2. How much does the GE IS200WETAH1A weigh?

   • The weight of the IS200WETAH1A mainboard is 0.5 kg.

3. What power supply is required for the IS200WETAH1A?

   • The board operates on a 24 V DC power supply.

4. What communication protocols does the IS200WETAH1A support?

   • The board supports Ethernet and Modbus protocols, facilitating communication with other components of the wind turbine control system.

5. What temperature range can the IS200WETAH1A operate in?

   • The IS200WETAH1A operates in temperatures ranging from -40°C to +70°C.

6. What are the main applications of the IS200WETAH1A mainboard?

   • The mainboard is used for controlling pitch, generator excitation, fault detection, and facilitating real-time communication in wind turbine systems.

7. Can this mainboard be used in offshore wind turbines?

   • Yes, the IS200WETAH1A is built to withstand extreme environments, making it suitable for both onshore and offshore wind turbine installations.

8. How does the IS200WETAH1A help with turbine protection?

   • It monitors key systems for potential faults and provides early detection of mechanical or electrical issues, preventing costly damage and downtime.

9. Is the IS200WETAH1A compatible with other GE wind turbine controllers?

   • Yes, the IS200WETAH1A is designed for seamless integration with other GE wind turbine controllers.

10. What are the key advantages of the IS200WETAH1A?

    • Key advantages include compact design, advanced communication capabilities, enhanced control functions, and high durability in harsh environments.
