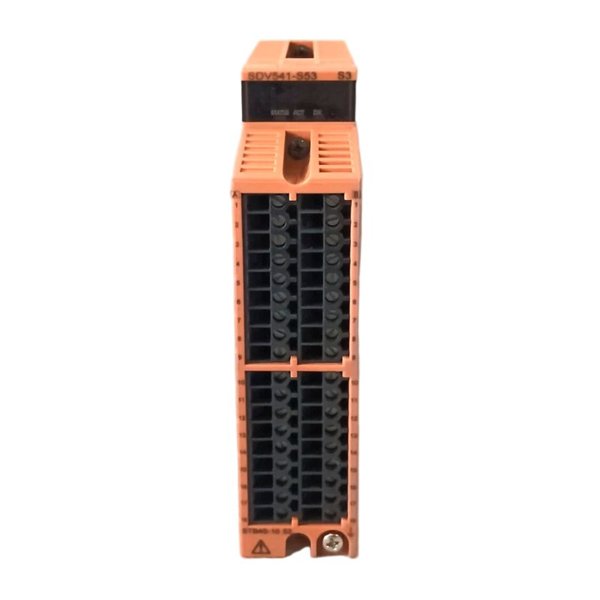

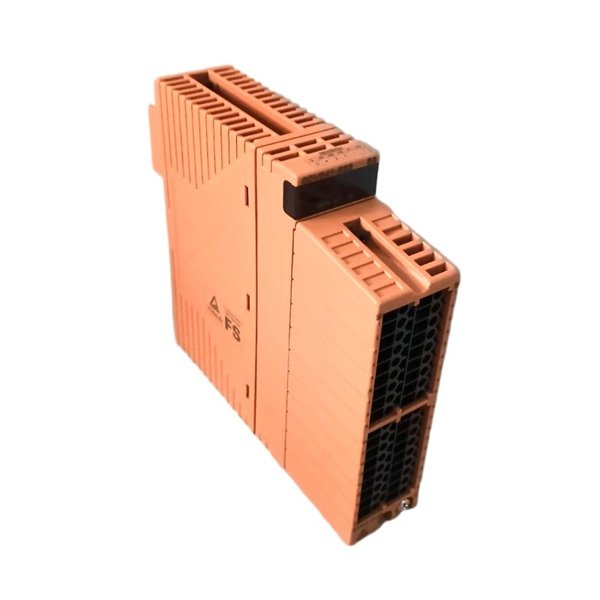

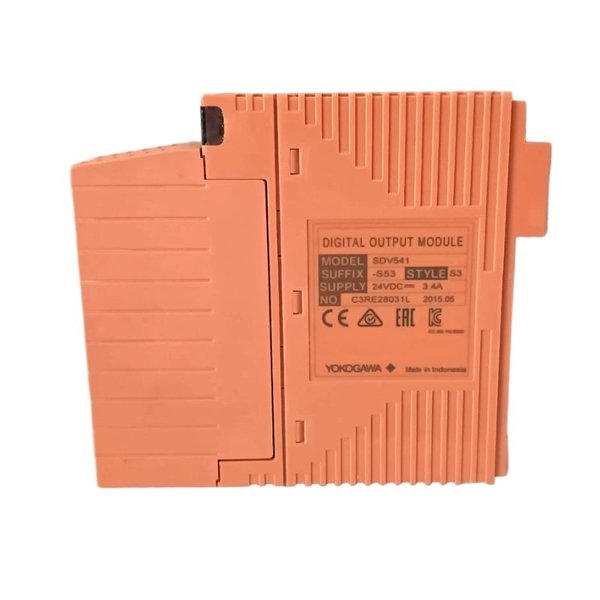

Yokogawa SDV541-S53/STB4D-00 Digital Output Module

The Yokogawa SDV541-S53/STB4D-00 Digital Output Module is a high-performance output unit designed for use in distributed control systems (DCS) and industrial automation platforms. It enables reliable control by converting digital control signals into output signals for actuators, relays, solenoids, and other final control devices.

This module is part of the Yokogawa CENTUM series, engineered for robust operation in demanding industrial environments such as oil & gas, petrochemical plants, and power generation facilities. Its advanced design ensures stability, long-term reliability, and seamless integration with system architectures.

Product Advantages

• High Reliability: Built with redundant circuitry and industrial-grade components for continuous operation.

• Fast Response Time: Optimized for real-time control applications requiring precise output switching.

• Seamless Integration: Fully compatible with Yokogawa DCS and automation systems.

• Diagnostics and Monitoring: Provides self-diagnostic functions and failure detection to enhance safety.

• Durable Build: Designed to withstand vibration, temperature variations, and industrial electrical noise.

• Modular Flexibility: Easy installation and replacement without interrupting system operation.

Technical Specifications

Product Applications

• Process Control: Direct output to actuators, solenoids, and control valves.

• Power Generation: Control of breaker circuits and generator auxiliaries.

• Petrochemical and Oil & Gas: Switching operations for pumps, compressors, and safety interlocks.

• Factory Automation: Output for robotic systems, conveyors, and machinery.

• Infrastructure: Power management systems and building automation.

FAQ

Q1: What type of isolation does the SDV541-S53/STB4D-00 provide?

A1: It provides channel-to-channel and channel-to-system galvanic isolation to protect against noise and ground loops.

Q2: How fast is the output response time?

A2: The response time is typically less than 1 millisecond, ensuring real-time performance.

Q3: Can the module detect output circuit faults?

A3: Yes, it includes self-diagnostic and fault detection functions for open circuit and short circuit conditions.

Q4: Does the module support redundant configurations?

A4: Yes, it can be installed in redundant setups to enhance system reliability.

Q5: What kind of loads can the digital outputs drive?

A5: The outputs can drive standard relays, solenoids, and low-voltage actuators, depending on the configuration.

Q6: Is hot-swapping supported?

A6: Yes, the module can be replaced without shutting down the system, minimizing downtime.

Q7: How is the module connected to the field wiring?

A7: It is connected through a standard Yokogawa baseplate with terminal blocks for secure wiring.

Q8: Does the module comply with safety standards?

A8: Yes, it complies with CE and EMC standards and meets industrial safety requirements.

Q9: How does the module handle high vibration environments?

A9: The unit is mechanically reinforced to withstand vibration common in heavy industries.

Q10: Can the module provide diagnostic data to the DCS?

A10: Yes, status and diagnostic data are transmitted to the host system for monitoring and maintenance.
