General Electric IC660EBD022 I/O Module Electronics

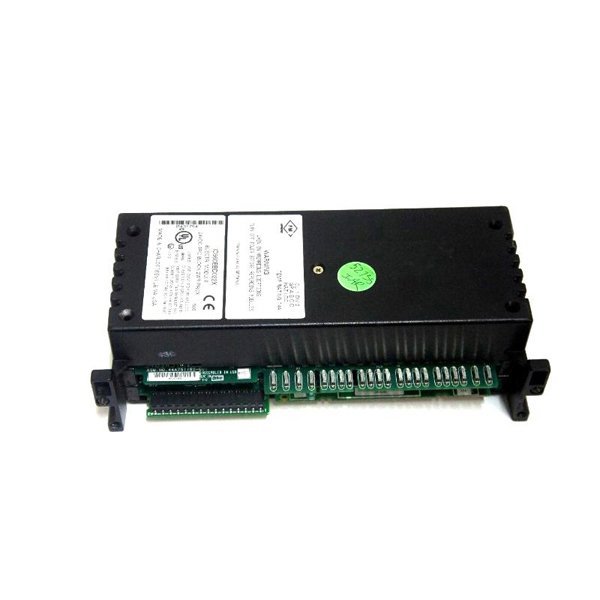

The GE IC660EBD022 is a rugged, high-performance I/O module from GE’s Genius I/O series, designed specifically for industrial automation systems requiring robust and flexible I/O solutions. As part of GE’s legacy of reliable distributed I/O systems, the IC660EBD022 module provides discrete input capabilities, offering 16 discrete input points that can be flexibly used in various field applications. This module is electronics-only, meaning it is designed to be used with a compatible terminal assembly.

The IC660EBD022 is engineered to withstand harsh industrial environments and offers a plug-and-play design for easy integration. It supports advanced diagnostics and offers real-time status indicators, making it a dependable solution for critical process control and automation tasks in manufacturing, energy, and utility industries.

Product Specifications

Product Applications

The GE IC660EBD022 is widely used across various industrial sectors where discrete input collection is required. Common application areas include:

• Manufacturing Automation: Captures digital input signals from machines, sensors, and switches.

• Power Generation and Utilities: Used in control rooms and substations for status monitoring.

• Material Handling Systems: Inputs from proximity sensors and safety switches in conveyor systems.

• Oil & Gas Facilities: Suitable for harsh conditions requiring robust electronic designs.

• Food & Beverage Plants: Used in process automation lines with frequent washdowns (when housed appropriately).

• Building Automation Systems: For status reporting of HVAC, lighting, and security sensors.

Product Advantages

• Robust Design: Withstands industrial-grade environmental conditions including vibration and temperature extremes.

• Modular Architecture: Can be combined with various terminal bases for flexible deployment.

• Real-Time Diagnostics: Built-in status indicators facilitate fast troubleshooting.

• High Compatibility: Easily integrates with other GE Genius I/O modules and PLCs.

• Field Configurable: Supports different input modes (sourcing/sinking) via jumper settings.

• Time-Tested Reliability: Proven track record in legacy and modern installations.

• Minimal Downtime: Hot-swappable when used with certain Genius bus systems.

• Secure Communication: Uses GE’s robust Genius Bus protocol for reliable I/O data transfer.

FAQ

1. What is the primary function of the IC660EBD022 module?

   It is a 16-point discrete input module used to collect digital signals from field devices like push buttons, limit switches, and sensors.

2. Is the IC660EBD022 a standalone module?

   No. It is an electronics-only module and must be mounted on a compatible terminal base assembly.

3. What kind of signals can this module accept?

   It supports discrete AC signals in the 0–132 VAC range.

4. Can I use this module with other brands of PLCs?

   While primarily designed for GE Genius I/O systems, integration with other systems may be possible using appropriate gateways or interfaces.

5. Is this module hot-swappable?

   In many systems using Genius Bus, it can be replaced without shutting down the entire system.

6. How do I know if the module is receiving input?

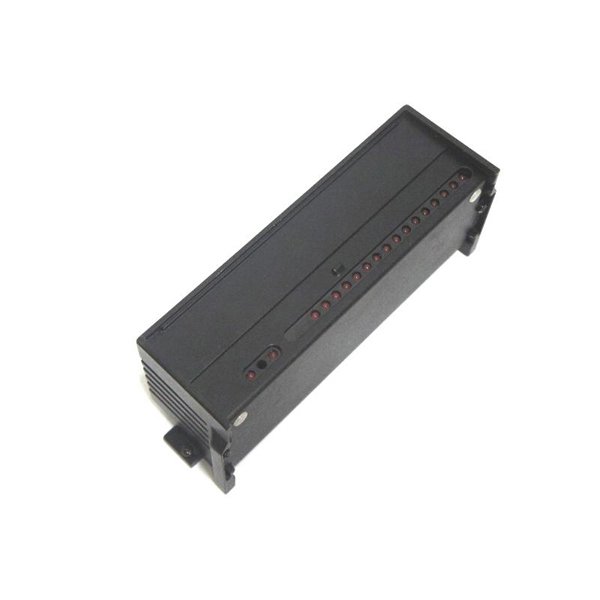

   The module features individual LED indicators for each input point.

7. What terminal assemblies are compatible with this module?

   It is compatible with IC660TBD022 and IC660TBD024 terminal bases.

8. What is the difference between IC660EBD022 and IC660BBD022?

   The “E” version is electronics-only; the “B” version includes both electronics and terminal block.

9. Can this module handle both sourcing and sinking inputs?

   Yes, input mode is configurable based on how it’s wired on the terminal base.

10. What is the expected lifespan of this module?

    When properly installed in a clean, temperature-controlled environment, the lifespan can exceed 10 years with minimal maintenance.
