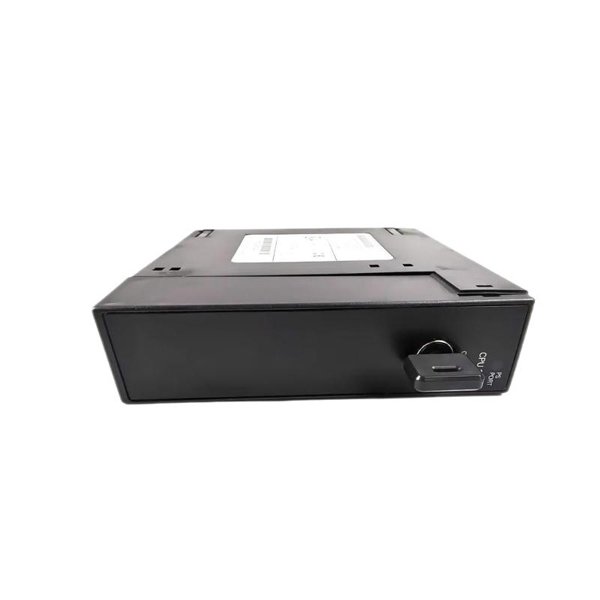

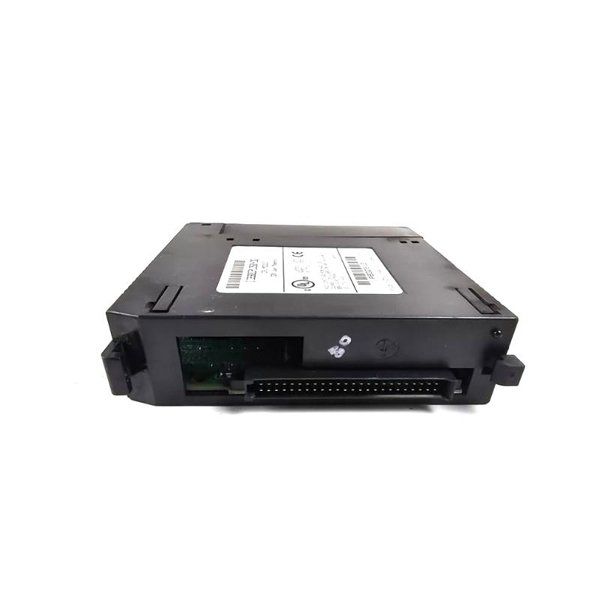

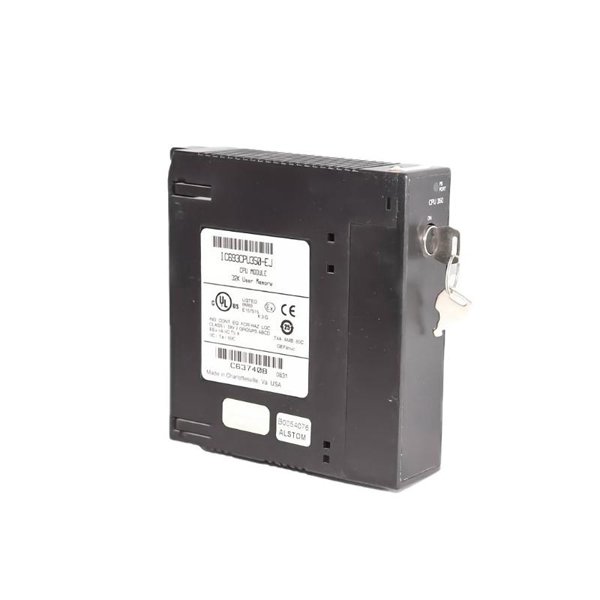

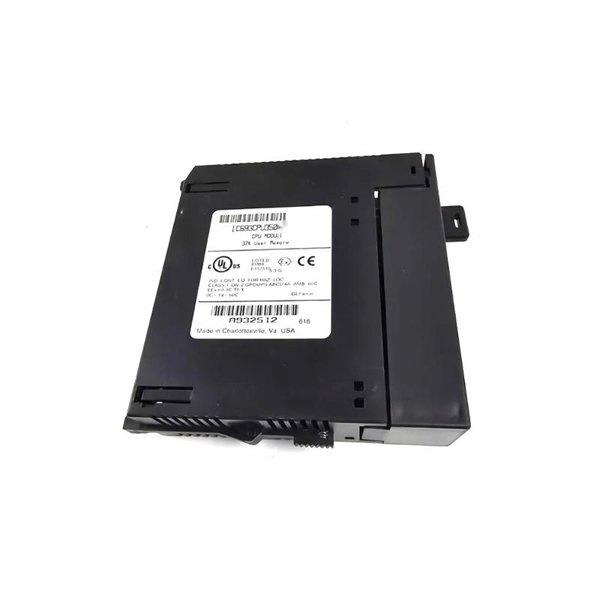

General Electric IC693CPU350 Single-Slot CPU Module

The GE IC693CPU350 is a Single-Slot Central Processing Unit (CPU) module from the renowned GE Fanuc Series 90-30 programmable logic controller (PLC) family. This CPU module is designed to provide high performance, reliability, and ease of integration in control systems for manufacturing, automation, and industrial processes.

This CPU module functions as the brain of the PLC system, processing inputs and controlling outputs based on the programmed logic. It is optimized for high-speed control and data processing applications where reliable and quick decision-making is essential.

The IC693CPU350 module is ideal for use in mid-to-large scale applications, providing fast processing capabilities with up to 3.5 KHz scan times, and extensive communication options for integration with other control systems and field devices.

Product Specifications

Product Applications

The GE IC693CPU350 CPU module is used in a wide range of industrial automation applications, providing robust control and monitoring capabilities for critical systems. Some typical use cases include:

• Manufacturing Automation

  The IC693CPU350 is ideal for controlling assembly lines, conveyor systems, packaging systems, and material handling systems in manufacturing plants. Its fast scan times and reliable operation ensure efficient process control.

• Process Control Systems

  For industries such as chemical processing, oil and gas, and food and beverage, the IC693CPU350 provides the high-speed processing required for controlling batch processes, mixing systems, and other critical production processes.

• Energy Management

  The CPU module can be used in energy systems to monitor power usage, control energy distribution, and optimize energy consumption in utilities and large industrial facilities.

• Building Automation

  In HVAC systems, lighting controls, and security systems, the IC693CPU350 offers centralized control and communication with other systems to ensure efficient energy usage and improved operational efficiency.

• Machine Control and Robotics

  The IC693CPU350 is well-suited for controlling complex machines, robotic arms, and other automated equipment, offering high-speed processing and flexible input/output control.

• Water Treatment and Wastewater Management

  In municipal and industrial water treatment plants, the IC693CPU350 can manage the control of pumps, filtration systems, and chemical dosing, ensuring safe and efficient operations.

Product Advantages

1. High-Speed Processing

   The 32-bit processor and 1.6 MHz speed allow the IC693CPU350 to process instructions quickly, making it ideal for time-sensitive control applications.

2. Expandable Memory

   With 256 KB of program memory (expandable), the IC693CPU350 can handle large, complex programs for sophisticated automation systems.

3. Large I/O Capacity

   This CPU supports up to 8192 I/O points, making it suitable for large automation systems with many field devices and sensors.

4. Flexible Communication

   The IC693CPU350 can be integrated with other devices through Ethernet, serial communication, and optional communication processors, allowing for easy integration into various industrial networks.

5. Compatibility

   It is compatible with the entire GE Fanuc Series 90-30 PLC family, allowing for easy expansion and scalability of control systems as production needs grow.

6. Compact Design

   The single-slot design ensures space efficiency in panel installations and allows for simplified system configurations.

7. Reliability

   GE’s reputation for high-quality industrial automation products ensures long-term reliability, making the IC693CPU350 a trusted choice for critical control systems.

8. Flexible Programming Options

   Supports ladder logic, function block diagrams, and structured text programming languages, giving users flexibility in developing control strategies.

9. Wide Operating Temperature Range

   The module operates effectively in environments with temperatures ranging from 0°C to 60°C (32°F to 140°F), suitable for a variety of industrial settings.

10. Certifications

    The IC693CPU350 is UL, CE, and RoHS certified, ensuring compliance with global safety, environmental, and quality standards.

FAQ

1. What is the processing speed of the IC693CPU350 module?

   The IC693CPU350 is equipped with a 1.6 MHz 32-bit processor, providing fast processing for real-time control applications.

2. What is the maximum program memory supported by the IC693CPU350?

   The module comes with 256 KB of program memory, which can be expanded with additional memory modules.

3. How many I/O points can the IC693CPU350 support?

   The module can handle up to 8192 I/O points, making it suitable for large-scale automation systems.

4. What types of communication protocols are supported by this module?

   The IC693CPU350 supports Ethernet communication via an optional communication processor, as well as serial communication protocols.

5. What programming languages can be used with the IC693CPU350?

   It supports ladder logic, function block diagrams, and structured text programming languages, providing flexibility for different control applications.

6. Can the IC693CPU350 be used in harsh industrial environments?

   Yes, the module is designed to operate in temperatures ranging from 0°C to 60°C (32°F to 140°F), and it meets industrial standards for reliability.

7. Is the IC693CPU350 compatible with other GE Fanuc Series 90-30 PLC modules?

   Yes, this CPU module is fully compatible with other modules in the GE Fanuc Series 90-30 PLC family, allowing for easy expansion and integration.

8. What is the power consumption of the IC693CPU350 module?

   The IC693CPU350 consumes 4.5 W of power during operation.

9. How is the IC693CPU350 mounted?

   The module is rack-mounted, fitting into the standard Series 90-30 PLC chassis.

10. What certifications does the IC693CPU350 have?

    The IC693CPU350 is certified by UL, CE, and RoHS, ensuring compliance with global safety and environmental standards.
