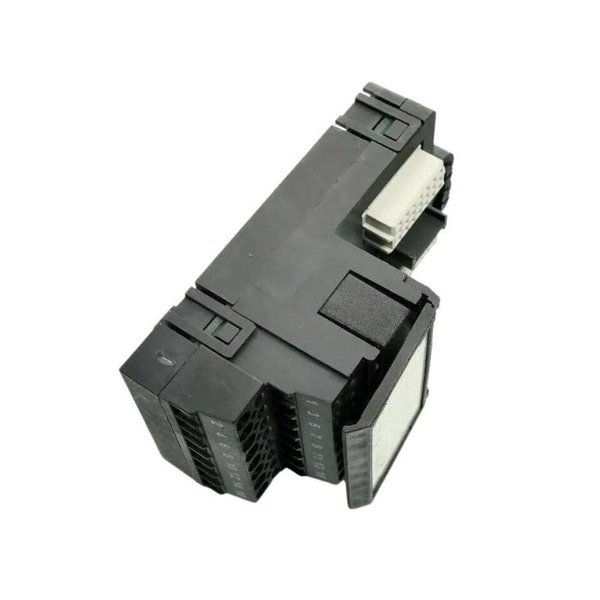

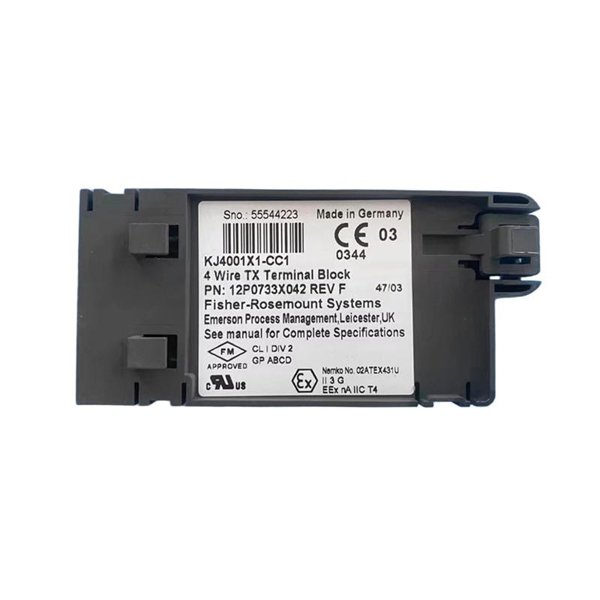

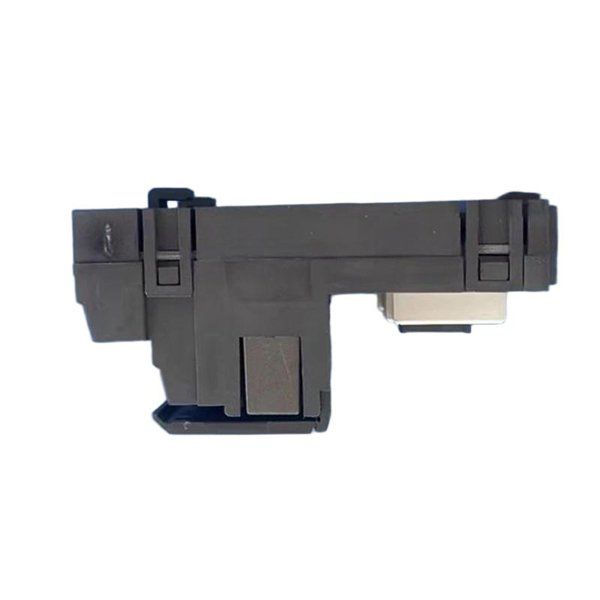

Emerson VE4003S2B3 KJ4001X1-CC1 Terminal Blocks

The Emerson VE4003S2B3 KJ4001X1-CC1 Terminal Blocks are precision-engineered connection modules designed for use within Emerson’s DeltaV and Ovation control systems. They provide reliable electrical interfacing between field wiring and system electronics, ensuring secure and stable signal transmission.

These terminal blocks are widely used in process automation industries where reliability, accuracy, and safe wiring are critical. Built with robust materials, the unit ensures high-performance connections with minimal maintenance requirements, making it a dependable component in critical automation environments.

Technical Specifications

Product Applications

• Process automation systems for oil & gas, chemical, and petrochemical plants.

• Power generation control systems, including distributed and turbine controls.

• Water treatment facilities and utilities requiring robust I/O wiring interfaces.

• Industrial automation lines requiring reliable modular wiring solutions.

• Integration with DeltaV and Ovation controllers to streamline wiring installation.

Product Advantages

• Reliable Performance – Provides secure field wiring connections to prevent signal loss and ensure system stability.

• Compact Design – Small footprint with dimensions optimized for control cabinet installations.

• High Compatibility – Designed to interface seamlessly with DeltaV and Ovation system modules.

• Ease of Maintenance – Modular construction simplifies replacement and reduces downtime.

• Durability – Built with high-quality industrial materials for long-term operation under harsh conditions.

• Certification Assurance – Meets CE and RoHS standards, ensuring compliance with industry regulations.

FAQ

Q1: What type of signals can the VE4003S2B3 KJ4001X1-CC1 support?

A1: It supports both analog and digital I/O signals for DeltaV and Ovation systems.

Q2: Is the terminal block hot-swappable within the system rack?

A2: No, the terminal block itself is not hot-swappable; power should be removed before replacement.

Q3: Can the terminal block be mounted on both DIN-rail and panel surfaces?

A3: Yes, it supports DIN-rail and direct panel mounting for flexible installation.

Q4: What is the maximum operating temperature supported?

A4: The unit can operate reliably from -20 °C to +60 °C.

Q5: Does it provide shielding for noise-sensitive signals?

A5: Yes, the design includes provisions for shielding to minimize electromagnetic interference.

Q6: What systems are compatible with this terminal block?

A6: It is fully compatible with Emerson DeltaV and Ovation control platforms.

Q7: How many channels can a single terminal block support?

A7: The capacity depends on the specific I/O module it interfaces with; typically 8 to 16 channels per block.

Q8: Can it handle redundant I/O configurations?

A8: Yes, the design allows integration in redundant I/O applications for system reliability.

Q9: What certifications does the product comply with?

A9: It complies with CE and RoHS standards, ensuring industrial safety and environmental compliance.

Q10: Does the block require special tools for wiring?

A10: Standard industrial wiring tools are sufficient; no proprietary tools are required.
