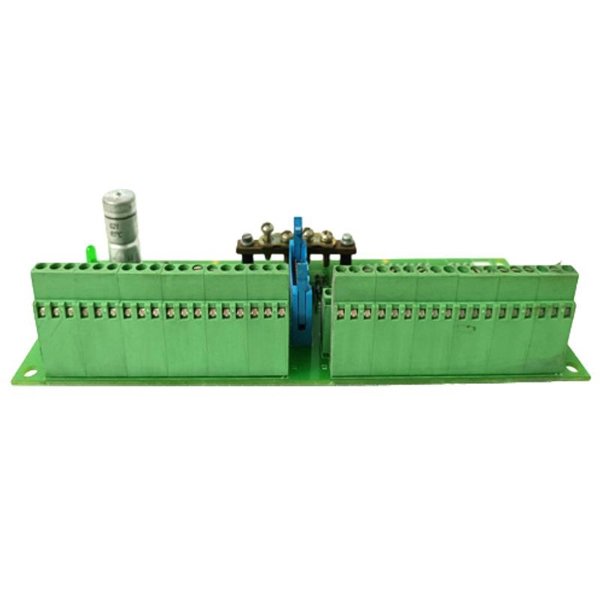

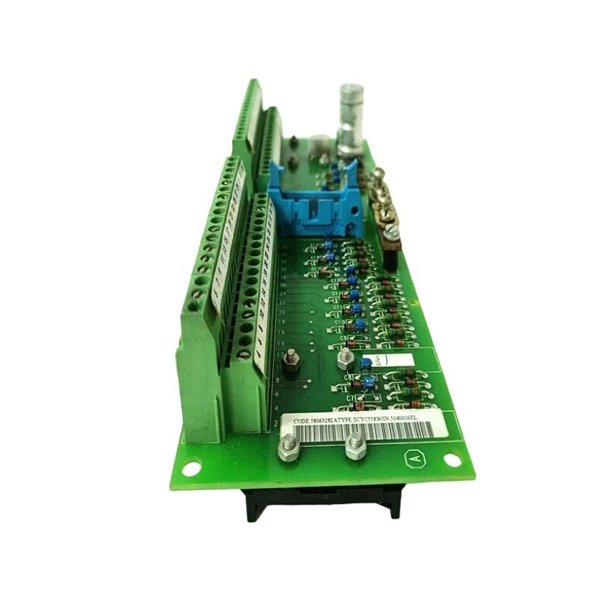

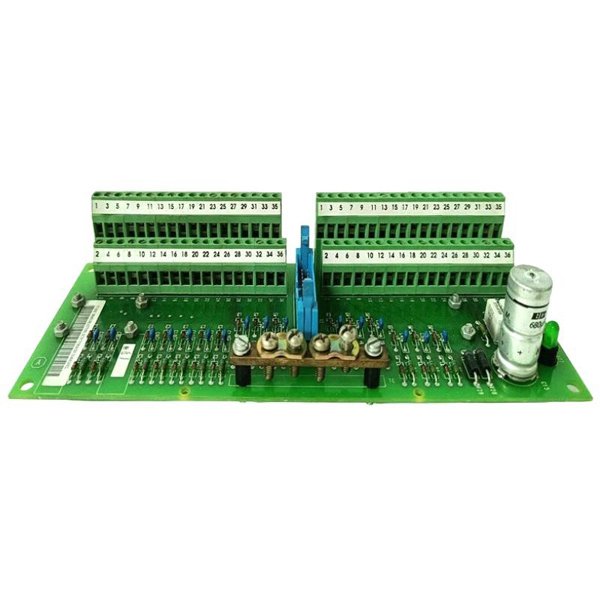

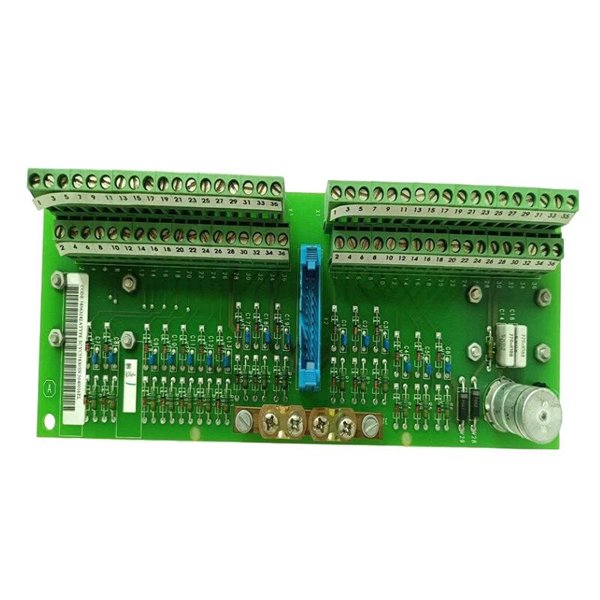

ABB SCYC55830 3AFE58063282 58063282A Digital Input Card

The ABB SCYC55830 3AFE58063282 / 58063282A is a high-performance Digital Input Card developed for integration into ABB’s industrial automation systems. As part of ABB’s robust control architecture, this card serves as a critical interface between field input devices and the central control unit. It receives discrete signals from external digital sensors, switches, and transducers and transmits them into readable control logic for processing within ABB’s controllers or programmable logic controllers (PLCs).

Engineered with industry-grade components, this module ensures exceptional electrical isolation, fast signal response times, and reliable operation even in electrically noisy or harsh environments. Its compatibility with ABB drive systems, especially in traction, process control, and industrial automation applications, makes it a trusted module for demanding I/O operations.

Product Specifications

Applications

The ABB SCYC55830 Digital Input Card is designed for use in high-demand industrial applications, where discrete digital signal acquisition is critical to system responsiveness and reliability. Its common use cases include:

• Industrial Automation Systems: For capturing signals from switches, push-buttons, and digital sensors.

• Drive and Motor Control Units: Provides feedback from limit switches, interlocks, and safety relays.

• Rail and Transportation Control: Used in rolling stock control units and substation automation.

• Process Control in Oil & Gas and Chemicals: Captures valve states, pressure switch statuses, and emergency interlocks.

• Power Generation Systems: Monitors digital field devices in turbines and substations.

• Building and Infrastructure Automation: Detects digital inputs from access control or environmental monitoring devices.

Product Advantages

• High Signal Integrity: Built-in opto-isolation provides superior noise immunity in electrically harsh environments.

• Fast Switching Response: Input recognition under 1 ms supports time-critical processes.

• Compact and Scalable: Small footprint makes it easy to integrate multiple modules in control cabinets.

• Long-Term Durability: Industrial-grade components and temperature ratings ensure reliable 24/7 operation.

• Certified Safety Standards: CE, RoHS, and UL certifications guarantee global compliance and safety.

• Flexible Mounting Options: Designed for DIN rail or panel mounting, suitable for retrofits or new installations.

• Multi-System Compatibility: Compatible with various ABB automation and control platforms.

• Low Power Operation: Energy-efficient design minimizes power draw in large system deployments.

Frequently Asked Questions (FAQ)

1. What is the primary function of the SCYC55830 Digital Input Card?

The SCYC55830 is used to receive and process discrete digital input signals from external field devices like limit switches, sensors, or push-buttons. It transmits these signals to a central ABB controller or PLC for further logic execution.

2. How many digital input channels does this module support?

This card supports 16 individually isolated digital input channels, allowing simultaneous monitoring of multiple field devices.

3. Is the SCYC55830 suitable for use in high-electromagnetic interference (EMI) environments?

Yes, the card is designed with galvanic isolation and robust filtering to ensure reliable signal acquisition in high-EMI industrial settings.

4. What type of signals does the input card accept?

It accepts standard 24 VDC digital signals, typically from dry contact or transistor-based sources. The operating voltage range is 15–30 VDC.

5. Can I use this card with sourcing and sinking input devices?

Yes, the SCYC55830 supports both sourcing (PNP) and sinking (NPN) configurations, making it versatile in various field applications.

6. What is the typical input response time for each channel?

Each channel can detect and register a change in signal in less than 1 millisecond, which is fast enough for most automation tasks.

7. How is this module physically installed in a control system?

It is mounted on a DIN rail or secured inside a control cabinet using standard mounting hardware. Proper grounding and ESD precautions are recommended during installation.

8. Does this card work with ABB’s AC800M or System 800xA platforms?

It is designed to integrate with a variety of ABB control systems, depending on the specific application and configuration. Compatibility with System 800xA and AC800M depends on system architecture and I/O configuration.

9. What kind of environmental conditions can it operate under?

The module operates reliably between -25°C and +70°C, with storage tolerance down to -40°C. It can handle humidity levels of up to 95% non-condensing.

10. Can this module handle fail-safe or emergency stop signals?

Yes, but it should be wired in compliance with safety regulations. For SIL-rated or fail-safe applications, additional safety relays or dedicated safety modules may be required alongside this unit.
