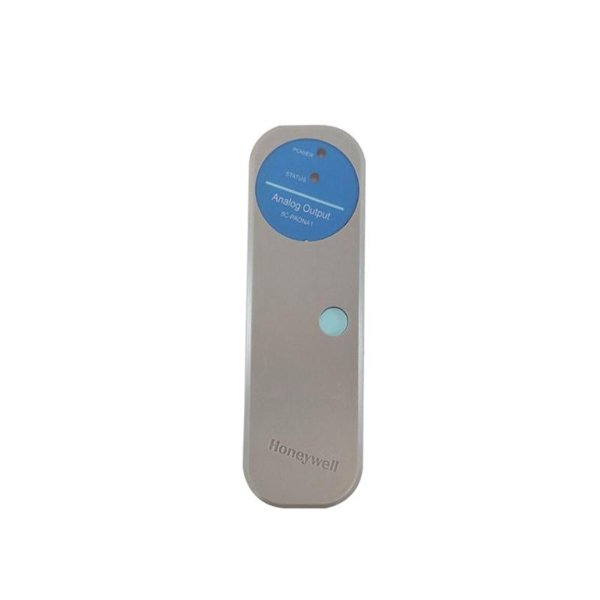

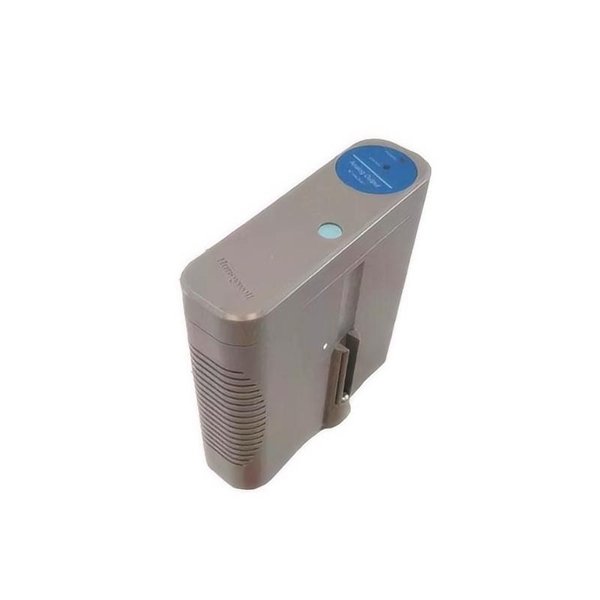

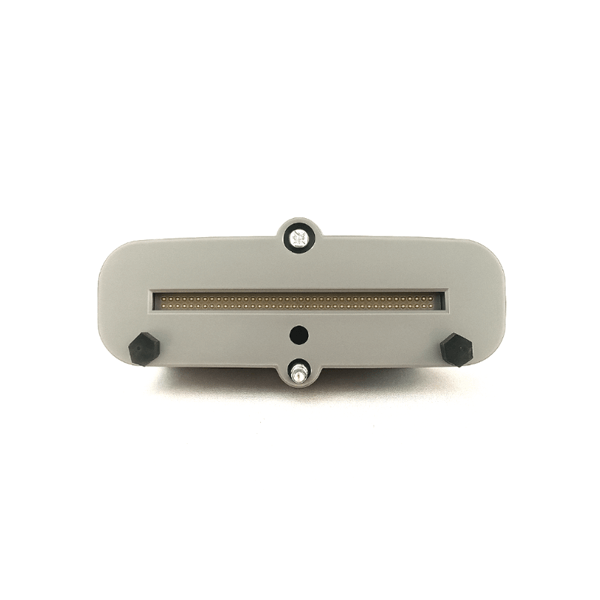

Honeywell 8C-PAONA1 51454469-175 Analog Output Module

The Honeywell 8C-PAONA1 51454469-175 is a high-performance analog output module engineered for use within Honeywell’s Experion Process Knowledge System (PKS) and C300 controller environments. As part of the Series C I/O modules, this unit is designed to convert digital control signals from the controller into precise analog outputs (typically 4-20 mA or 0-20 mA) used to drive actuators, control valves, and other final control elements.

Engineered with high reliability, precision, and seamless integration in mind, the 8C-PAONA1 delivers both field-proven signal integrity and excellent response time, critical for closed-loop process control applications in demanding industrial settings.

Product Specifications

Product Applications

The Honeywell 8C-PAONA1 module is widely deployed in process automation environments that demand reliable, precise analog signal transmission to field devices. Key application areas include:

• Petrochemical and Oil Refining

  Regulating control valves in reaction furnaces, compressors, and pump stations.

• Power Generation

  Controlling steam valves, fuel metering devices, and turbine actuators.

• Pharmaceutical and Life Sciences

  Accurate control of dosing pumps, mixers, and flow regulators in batch processes.

• Water and Wastewater Treatment

  Adjusting actuator positions on aeration tanks and filtration systems.

• Pulp and Paper Industry

  Regulating the flow of chemicals, water, and pulp through precise output control.

• Food and Beverage

  Temperature control, flow regulation, and additive dispensing in automated lines.

Product Advantages

• High Output Precision

  16-bit resolution ensures highly accurate analog signal delivery for sensitive control systems.

• Advanced Diagnostics

  Integrated diagnostics provide real-time feedback on module health and output performance, aiding in predictive maintenance.

• Channel Isolation

  Each channel is electrically isolated, enhancing system safety and minimizing signal interference.

• Redundancy and Hot Swap Support

  Enables uninterrupted operations during maintenance or failures, reducing downtime.

• Flexible Signal Configuration

  Easily configurable for 0–20 mA or 4–20 mA output ranges via Honeywell engineering tools.

• Wide Environmental Range

  Industrial-grade construction for reliable operation in harsh environments.

• Easy Integration

  Seamless communication with Honeywell’s C300 controllers and Experion PKS platforms.

Frequently Asked Questions (FAQ)

1. What is the output signal range of the 8C-PAONA1 module?

   The module supports both 4–20 mA and 0–20 mA analog output ranges.

2. How many channels does this module have?

   It provides 8 isolated analog output channels.

3. Can this module be hot-swapped?

   Yes, the 8C-PAONA1 supports hot-swapping without interrupting system operation.

4. What controller systems is it compatible with?

   It is designed for use with Honeywell’s C300 and Experion PKS systems.

5. Does the module support redundancy?

   Yes, it can operate in a redundant configuration with another module.

6. What kind of field devices can it control?

   It can control actuators, control valves, variable-speed drives, and more.

7. Is configuration software required?

   Yes, configuration is performed through Honeywell engineering tools.

8. Is there isolation between output channels?

   Yes, each channel is isolated from the others to enhance safety and accuracy.

9. How is this module mounted?

   It mounts on a Series C carrier, typically installed on a DIN rail.

10. What happens if a single channel fails?

    The module’s diagnostics system can detect and report individual channel failures.
