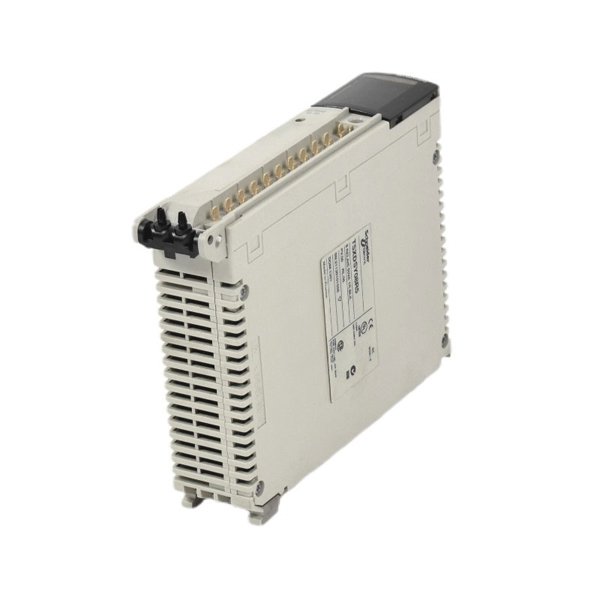

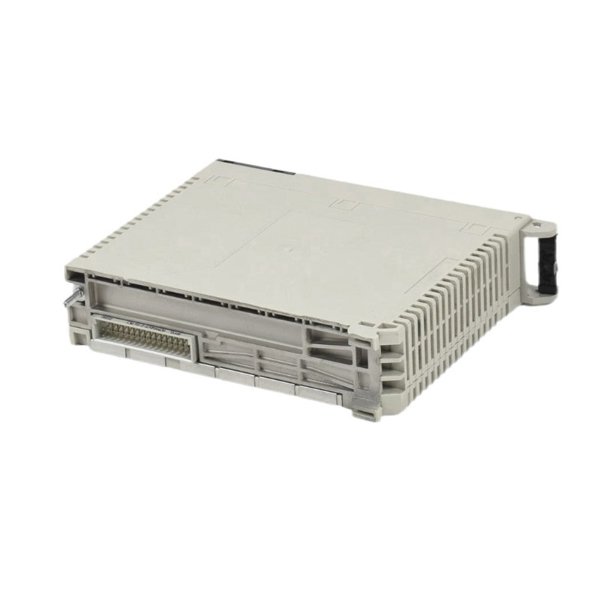

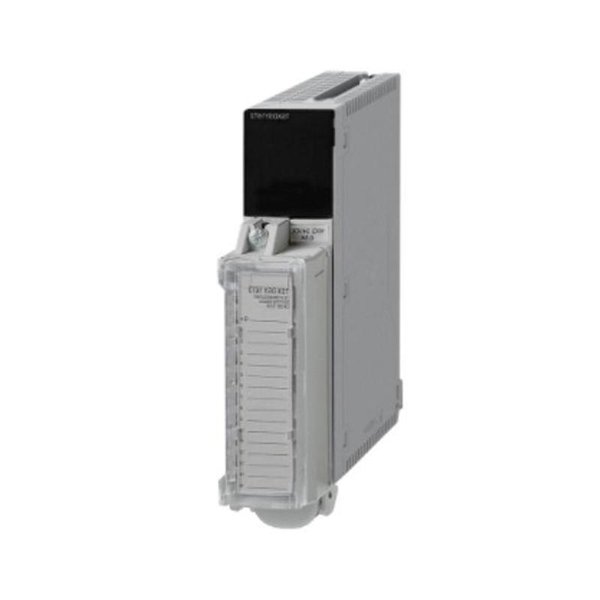

Schneider TSXDSYO8R5 Discrete output Modules

The TSXDSY08R5 is engineered for compatibility, ease of installation, and long-term operation under harsh industrial conditions. Its compliance with international industrial standards makes it suitable for applications across manufacturing, process automation, infrastructure, and energy sectors.

Product Advantages

• 8-Channel Relay Outputs: Allows control of eight individual outputs, suitable for switching both AC and DC loads.

• High Isolation: Each output is electrically isolated, ensuring protection from surges and cross-circuit interference.

• Versatile Voltage Compatibility: Supports a wide voltage range, accommodating various control system requirements.

• DIN Rail Mountable: Designed for easy integration into standard control cabinets.

• Modicon TSX Premium Integration: Seamless connectivity with Schneider’s TSX PLC platform ensures simplified configuration and diagnostics.

• LED Indicators: Provides clear, real-time status indication of each output channel, aiding in system monitoring and troubleshooting.

• Durable Relay Contacts: Built for extended mechanical and electrical life, even under frequent switching cycles.

Technical Specifications

Application Areas

The TSXDSY08R5 digital output module is designed to serve a broad range of industrial control applications. These include:

• Automated Manufacturing Lines: Controls actuators, conveyors, robotic arms, and industrial equipment.

• Building Automation: Used in HVAC, lighting control, and security system integration.

• Water and Wastewater Plants: Controls pumps, valves, and alert systems in treatment facilities.

• Food & Beverage Industry: Operates processing equipment, bottling systems, and quality control systems.

• Energy and Utilities: Supports control of auxiliary systems in substations and energy distribution panels.

• Transportation Systems: Employed in tunnel control, traffic signal systems, and railway automation.

Product Advantages

• Extended Lifecycle: Industrial-grade relay components ensure a long operational lifespan, even under repetitive load switching.

• Safe Isolation: Output-to-PLC isolation ensures that control circuits remain safe from field-level electrical disturbances.

• Low Maintenance: Relay-based operation reduces the need for frequent component replacement.

• Fast Integration: Supports standard TSX Premium software and configuration tools for rapid deployment.

• Modularity: Fits seamlessly into modular architectures for flexible system expansion.

• Diagnostics-Ready: LED indicators provide visual feedback, aiding in rapid diagnostics and reducing downtime.

FAQ

1. Q: Is the TSXDSY08R5 compatible with all TSX Premium CPUs?

   A: Yes, it is fully compatible with all CPUs in the TSX Premium range, provided the power budget and slot configuration are adequate.

2. Q: Can it switch both AC and DC loads?

   A: Yes, the relay outputs are capable of switching both AC and DC loads up to the specified ratings.

3. Q: Does the module include protection against overloads?

   A: While the module includes internal isolation and basic protection, it is recommended to use external fuses or circuit breakers for each channel.

4. Q: What is the maximum current supported per output channel?

   A: Each output channel supports up to 2 A continuous current, whether AC or DC.

5. Q: Is hot-swapping allowed during operation?

   A: No, modules in the TSX Premium series should not be inserted or removed while powered.

6. Q: Can I use this module to control inductive loads?

   A: Yes, but for inductive loads (e.g., solenoids, contactors), proper suppression circuits (e.g., diodes, RC snubbers) should be used.

7. Q: What diagnostic features does this module provide?

   A: The TSXDSY08R5 includes LED indicators for each channel to display ON/OFF status in real-time.

8. Q: What kind of relay contact is used in the module?

   A: It uses normally open (NO) mechanical relay contacts with silver alloy material.

9. Q: What are the recommended environmental operating conditions?

   A: The recommended ambient operating temperature is 0 to 60°C, with a relative humidity of up to 95% (non-condensing).

10. Q: How should the module be mounted?

    A: It should be installed in a TSX Premium rack, secured firmly, and operated in environments free from excessive vibration or moisture.
