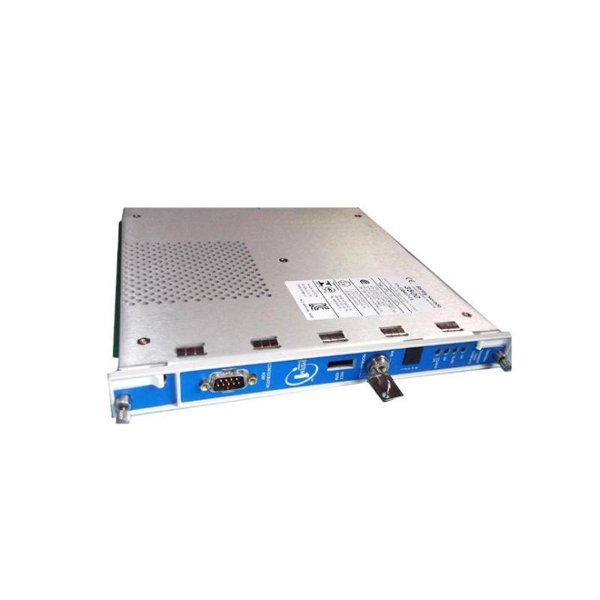

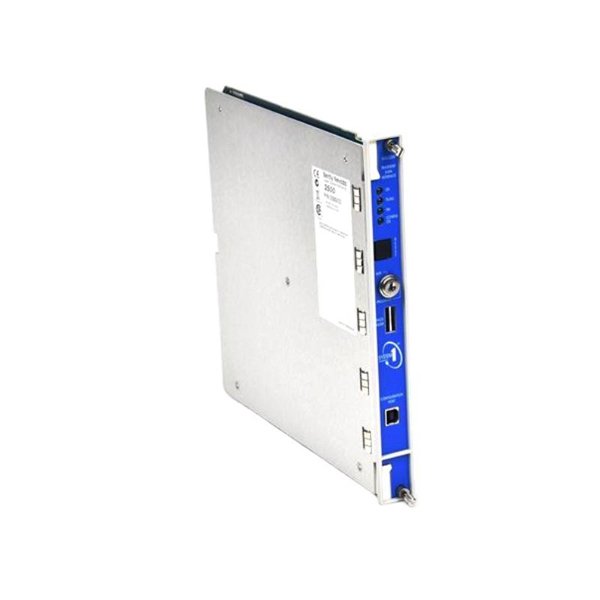

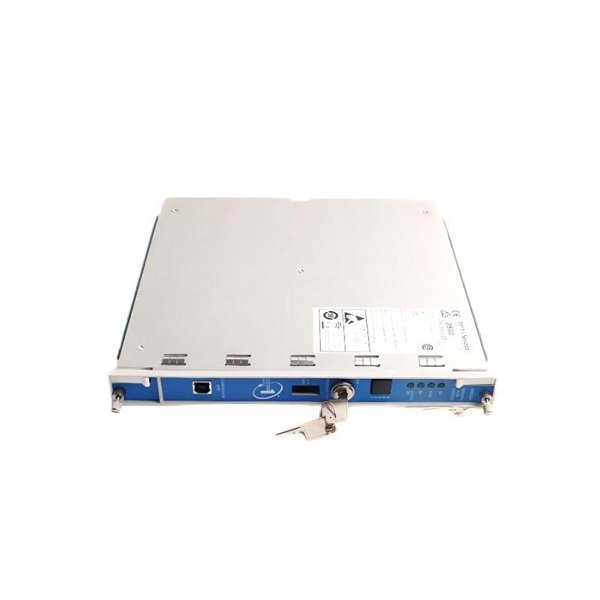

Bently Nevada 3500/22M 288055-01+146031-01 Transient Data Interface (TDI) Module

The Bently Nevada 3500/22M 288055-01 + 146031-01 Transient Data Interface (TDI) Module is a high-performance, state-of-the-art device designed to monitor and capture transient signals in critical industrial machinery. As part of the Bently Nevada 3500 series, this module excels in high-speed data acquisition, enabling predictive maintenance and real-time performance monitoring. It allows for the detection of minor, often imperceptible changes in machinery behavior, such as vibrations, pressure fluctuations, and temperature variations, which could indicate underlying problems that might otherwise go unnoticed.

By providing detailed insights into machinery health, the 3500/22M TDI Module enables operators to address issues before they lead to unplanned downtime, minimizing the risk of equipment failure and associated costs. The module integrates seamlessly with other Bently Nevada monitoring systems and plays a key role in ensuring optimal machinery performance across industries like power generation, oil and gas, mining, and manufacturing.

Its robust design and advanced capabilities make it the ideal solution for any industrial application that demands high-frequency data capture and reliable machinery monitoring.

Product Specifications

Product Applications

The 3500/22M TDI Module is ideal for industries where high-precision machinery monitoring and transient signal capture are essential. The module is widely used in the following sectors:

1. Power Generation

   In power plants, critical machinery such as turbines, generators, and compressors are continuously monitored using the 3500/22M TDI Module. By capturing transient data, the module provides early warning of potential faults, ensuring that necessary maintenance actions are taken before equipment failure occurs, reducing downtime and costs.

2. Oil and Gas

   In the oil and gas industry, the module monitors drilling equipment, compressors, and pumps. Its ability to capture transient signals helps identify emerging problems, preventing catastrophic failures and enhancing safety in high-risk environments.

3. Mining and Heavy Industry

   The 3500/22M TDI Module is used in mining operations to monitor large machines like crushers, mills, and conveyors. These machines operate under harsh conditions, and the module helps identify mechanical issues that could cause costly breakdowns.

4. Automotive Manufacturing

   In automotive production lines, where precision is critical, this module helps monitor high-precision manufacturing equipment. By identifying potential issues with equipment early, the module helps avoid costly production delays and ensures quality consistency.

5. Aerospace

   Aerospace manufacturers utilize the 3500/22M to monitor turbines and other essential machinery. By detecting irregularities early, it ensures safety and reliability in complex aerospace systems.

Product Advantages

1. High-Speed Data Acquisition

   The 3500/22M module features a 100 kHz data sampling rate, allowing for quick capture and analysis of transient signals. This high-speed data acquisition is vital for early detection of faults, providing real-time insights into machine health.

2. Wide Operating Temperature Range

   Designed to operate in environments ranging from -40°C to +85°C, the module is suitable for deployment in both extreme hot and cold conditions, making it versatile across a wide range of industries.

3. Compact and Lightweight

   The module’s compact size (241.3 x 24.4 x 241.8 mm) and lightweight design (0.91 kg) ensure it can be easily integrated into existing systems, even in space-constrained environments.

4. IP20 Protection

   With an IP20 rating, the module is protected from dust, ensuring reliable operation in environments where particulate matter is present.

5. Flexible Input Channels

   The module supports up to 8 differential or 16 single-ended input channels, providing flexibility to monitor multiple machines or sensors simultaneously.

6. Easy Integration

   Supporting Modbus, Ethernet, and RS-485 communication protocols, the module can be integrated easily into existing industrial control systems, allowing seamless monitoring.

7. Predictive Maintenance

   The ability to capture transient data allows for predictive maintenance, enabling operators to identify issues before they cause equipment failures. This results in reduced downtime, fewer emergency repairs, and lower maintenance costs.

8. Seamless Compatibility

   As part of the Bently Nevada 3500 series, this module is fully compatible with other products in the series, allowing for an integrated and efficient monitoring solution.

FAQ

Q1: What is the function of the Bently Nevada 3500/22M module?

A1: The 3500/22M module is designed to capture and analyze transient data from industrial machinery, enabling early detection of potential issues and facilitating predictive maintenance.

Q2: How many input channels does the module support?

A2: The module supports up to 8 differential or 16 single-ended input channels, providing flexibility for monitoring various machines or sensors.

Q3: What is the operating temperature range of this module?

A3: The module operates in environments with temperatures ranging from -40°C to +85°C, making it suitable for a wide range of industrial conditions.

Q4: What kind of signals does the module capture?

A4: The module captures transient signals such as vibrations, pressure fluctuations, and temperature variations, which are critical for monitoring the health of industrial machinery.

Q5: What communication protocols are supported by the module?

A5: The module supports Modbus, Ethernet, and RS-485 communication protocols, making it compatible with a wide range of industrial control systems.

Q6: Can this module be used in high-vibration environments?

A6: Yes, the module is designed to function reliably in high-vibration environments, making it ideal for use in industries like mining and power generation.

Q7: How is the module mounted?

A7: The module is designed for DIN rail mounting, making installation simple and convenient in industrial control panels.

Q8: What is the data sampling rate of the module?

A8: The 3500/22M module offers a high-speed data sampling rate of 100 kHz, ensuring fast and accurate capture of transient events.

Q9: What is the weight of the module?

A9: The module weighs 0.91 kg, making it lightweight and easy to handle during installation.

Q10: Is the module compatible with other Bently Nevada products?

A10: Yes, the 3500/22M module is fully compatible with other components of the Bently Nevada 3500 series, providing a complete solution for machinery monitoring.
