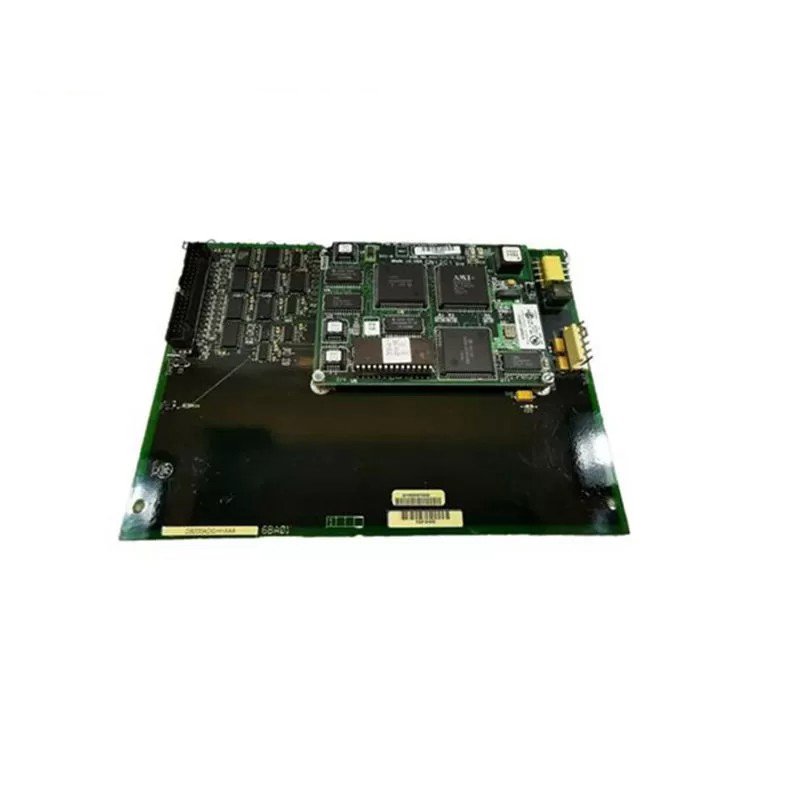

The GE DS200LPPAG1AAA is a Line Protection Panel Board (LPB) by General Electric (GE). It is part of the Mark V DS200 Series. GE designed it for Speedtronic® gas turbine control systems, ensuring generator protection from electrical faults.

Key Features

• Protection: Guards against overvoltage, undervoltage, overcurrent, and ground faults.
• Isolation: Isolates the generator from the utility grid.
• Monitoring: Tracks generator voltage, current, and power.
• Communication: Connects with the Mark V control system for real-time data and alarms.

Technical Specifications

• Input Voltage: 200-600 VAC
• Current Rating: 600 A
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to +85°C
• Humidity: 0% to 95% non-condensing
• Enclosure Rating: NEMA 1, IP20

Applications

The GE DS200LPPAG1AAA suits various gas turbine applications, including:

• Power Generation
• Oil and Gas Production
• Industrial Applications
