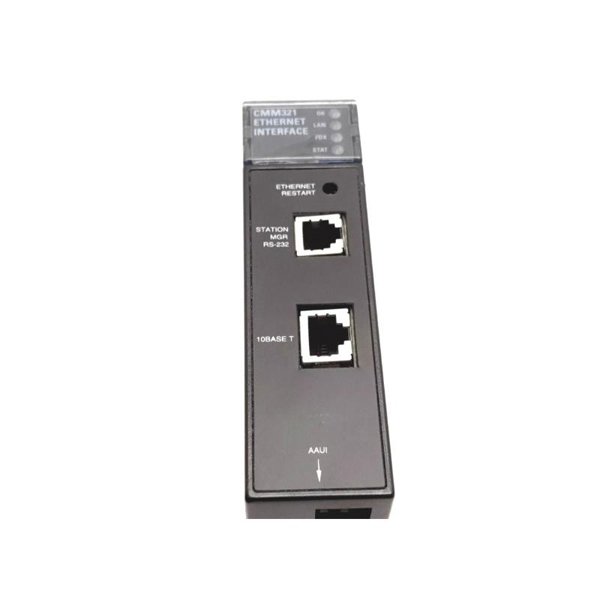

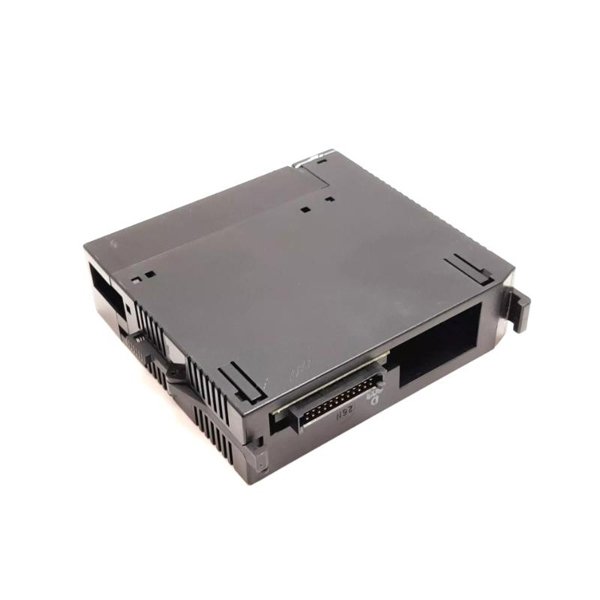

General Electric IC693CMM321-GH Ethernet Interface Module

The GE IC693CMM321-GH is an Ethernet Interface Module designed specifically for the GE Series 90-30 PLC family. Engineered to deliver robust, high-speed communication capabilities, this module provides seamless integration of industrial Ethernet networking within automation environments. It allows PLCs to connect to external Ethernet networks for data exchange, diagnostics, and remote monitoring, enabling efficient control and automation solutions in real-time.

Built with reliability in mind, the IC693CMM321-GH module supports TCP/IP protocol and facilitates communication with HMIs, SCADA systems, and enterprise-level applications. This module is ideal for applications requiring stable network interfacing and efficient data handling across industrial infrastructures.

Technical Specifications

Applications

The GE IC693CMM321-GH Ethernet Interface Module is widely deployed in industrial automation and control systems across diverse sectors:

• Manufacturing plants: For real-time data communication with supervisory systems and HMI panels.

• Utilities and energy: Used in water treatment plants, power distribution, and renewable energy monitoring.

• Process control: Integration with DCS and SCADA systems in oil & gas, chemical, and pharmaceutical plants.

• Building automation: Linking HVAC systems and BMS networks for centralized control.

• Remote monitoring: Facilitates remote diagnostics and control of PLCs from centralized control rooms.

Product Advantages

• Reliable Ethernet Connectivity: Supports industrial-grade Ethernet communication with robust error-checking and diagnostics.

• Easy Integration: Seamlessly integrates into existing GE Series 90-30 systems without requiring major infrastructure changes.

• Remote Monitoring & Control: Enables plant operators to monitor PLCs remotely, improving response time and system uptime.

• Scalable Communication: Supports multiple client/server connections, making it suitable for both small- and large-scale systems.

• LED Diagnostics: Visual indicators help quickly identify connection issues or module errors.

• Software Configurable: Easily configured using GE software tools such as VersaPro or PME, ensuring flexibility and control.

• Compact Design: Space-efficient and lightweight for convenient panel installation.

• Cost-Effective: Offers Ethernet functionality without the need for external converters or complex wiring.

Frequently Asked Questions (FAQ)

1. Q: What software is used to configure the IC693CMM321-GH module?

   A: Configuration is typically done using GE VersaPro or Proficy Machine Edition.

2. Q: Can this module support Modbus TCP?

   A: While it primarily supports SRTP and TCP/IP, Modbus TCP can be enabled with additional configuration.

3. Q: How many connections can this module handle simultaneously?

   A: It supports up to 16 simultaneous Ethernet connections.

4. Q: Is this module compatible with the GE Series 90-70?

   A: No, it is designed specifically for the Series 90-30 PLCs.

5. Q: Does the module have diagnostic LEDs?

   A: Yes, it features LEDs for link status, activity, and error detection.

6. Q: What is the power consumption of the IC693CMM321-GH?

   A: It consumes 600 mA at 5V DC from the backplane.

7. Q: Is the module hot-swappable?

   A: No, power must be turned off before inserting or removing the module.

8. Q: What type of connector does the module use for Ethernet?

   A: It uses a standard RJ-45 connector.

9. Q: Can this module be used for remote diagnostics?

   A: Yes, it enables remote monitoring and diagnostics over Ethernet.

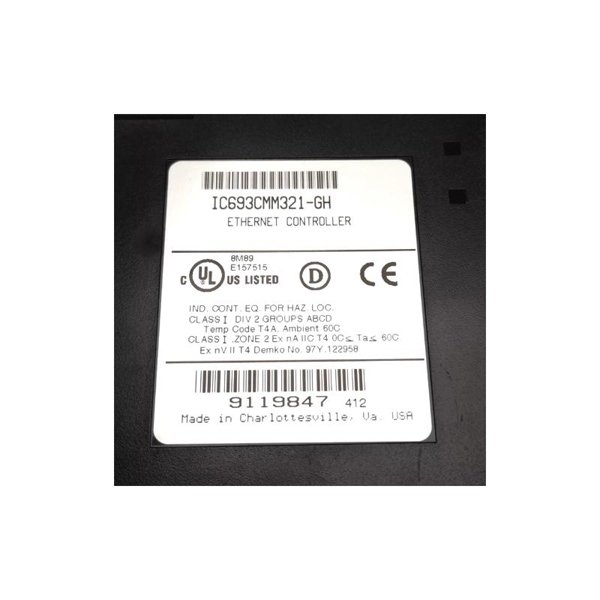

10. Q: Is it CE certified for use in European markets?

    A: Yes, it holds CE, UL, and CSA certifications.
