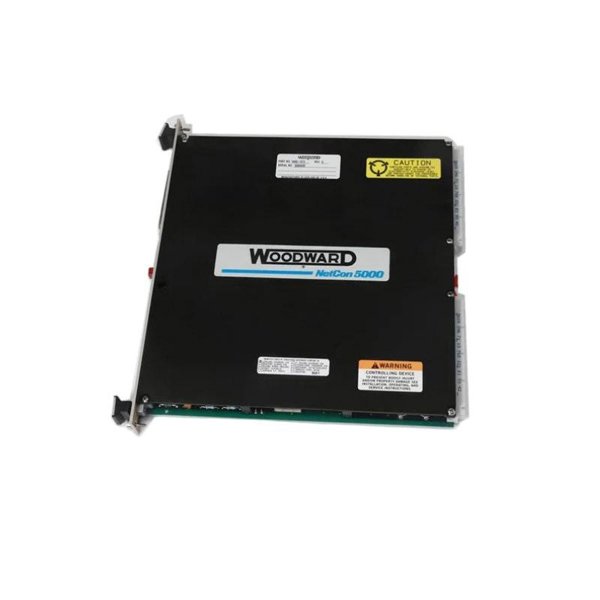

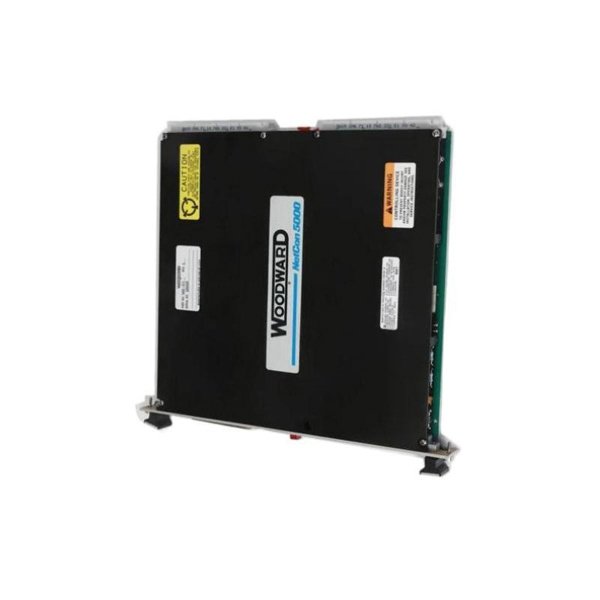

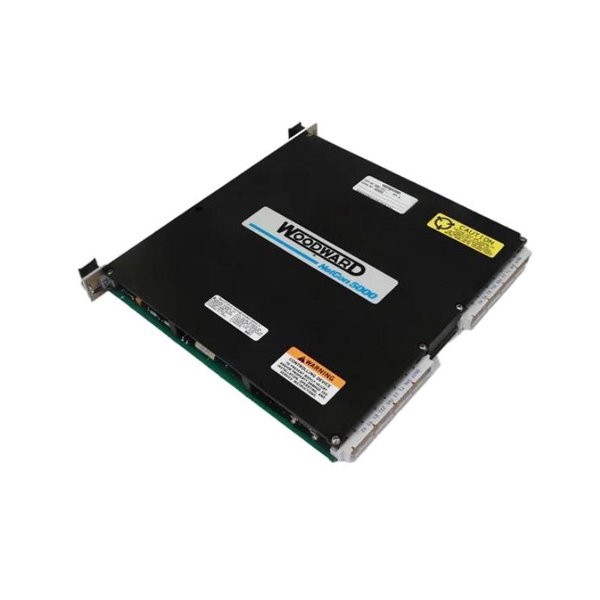

Woodward 5462-744 I/O Model

The Woodward 5462-744 I/O Module is a high-performance input/output interface designed for industrial automation and control systems. It facilitates reliable communication and signal processing between control units and field devices. Built with robust materials and engineered for versatility, this module ensures efficient data acquisition and output control in various demanding applications including power generation, manufacturing, and process automation.

Its compact design allows easy integration into control panels and systems where space constraints exist, while supporting multiple communication protocols for flexible connectivity. The 5462-744 module helps improve system responsiveness and operational reliability.

Key Features and Advantages

• Robust Construction: Manufactured with high-grade aluminum alloy for durability in industrial environments.

• Wide Operating Temperature Range: Functions reliably between -20°C and +60°C to suit various environmental conditions.

• Multiple Communication Interfaces: Supports RS-485 and CANopen protocols for flexible system integration.

• Compact Size: Dimensions optimized for installation in limited spaces.

• Low Power Consumption: Efficient operation with a power draw of only 7.2 W.

• High Current Capacity: Nominal current rating of 28 A supports demanding control loads.

• Versatile Voltage Range: Operates within an 18-45 V DC nominal voltage range.

• Lightweight Design: Weighs only 0.2 kg, simplifying handling and installation.

Technical Specifications

Applications

• Power generation systems for monitoring and control of generators and turbines.

• Manufacturing automation integrating sensors and actuators for process control.

• Process control in chemical, petrochemical, and industrial plants.

• Building management systems controlling HVAC, lighting, and security.

Frequently Asked Questions (FAQ)

1. What is the operating voltage of the Woodward 5462-744?

   The module operates at 220 V AC.

2. Which communication protocols are supported?

   It supports RS-485 and CANopen.

3. What temperature ranges can the module operate within?

   Operating temperature is -20°C to +60°C; storage temperature is -30°C to +80°C.

4. How much power does the module consume?

   It consumes approximately 7.2 W.

5. What is the nominal current rating?

   The nominal current rating is 28 A.

6. What are the physical dimensions of the module?

   The dimensions are 100 x 60 x 20mm.

7. What is the weight of the module?

   It weighs 0.2 kg.

8. What material is the module constructed from?

   High-grade aluminum alloy.

9. Is the module suitable for harsh industrial environments?

   Yes, it is built to withstand demanding industrial conditions.

10. Can the module be used in both power and manufacturing automation?

    Yes, it is suitable for a variety of industrial applications including power generation and manufacturing.
