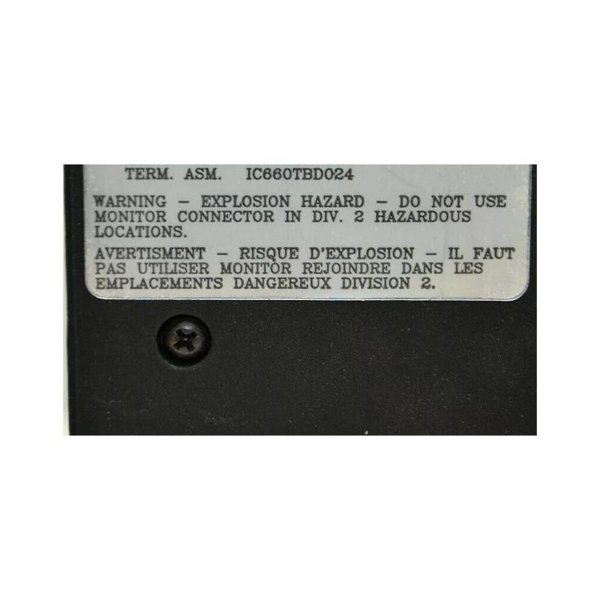

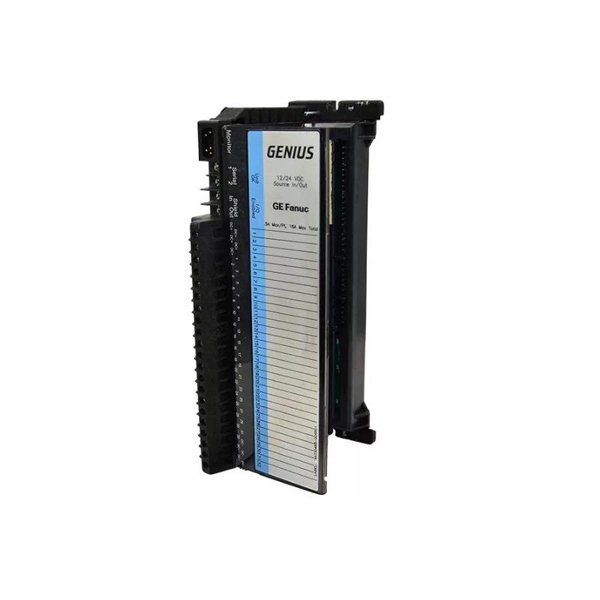

General Electric IC660TBD024 Terminal Assemblies

The GE IC660TBD024 is a high-performance VersaMax PLC (Programmable Logic Controller) bus distributor module designed for industrial automation systems. It serves as a critical component in distributed control architectures, enabling seamless communication between the central PLC and remote I/O modules. This module is known for its rugged design, reliability, and compatibility with GE’s VersaMax series, making it ideal for harsh industrial environments.

Product Parameters

Product Applications

The GE IC660TBD024 is widely used in industrial automation systems, including:

• Manufacturing Automation – Facilitates communication between PLCs and distributed I/O in assembly lines.

• Process Control Systems – Ensures reliable data transfer in chemical, oil, and gas industries.

• Power Generation & Distribution – Used in substation automation and grid monitoring.

• Water & Wastewater Treatment – Supports remote I/O modules in monitoring and control systems.

• Transportation & Logistics – Deployed in conveyor and sorting systems.

Product Advantages

1. Robust Construction – Designed to withstand harsh industrial conditions, including vibrations and temperature fluctuations.

2. High Compatibility – Seamlessly integrates with GE’s VersaMax and Genius Bus systems.

3. Easy Installation – DIN rail mounting ensures quick and secure setup.

4. Reliable Communication – Supports high-speed data transfer with minimal latency.

5. Wide Operating Range – Functions efficiently in extreme temperatures and humidity levels.

6. Certified Safety Standards – Complies with CE, UL, and RoHS, ensuring safe operation.

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC660TBD024?

   • It acts as a bus distributor for GE’s Genius Bus communication, enabling PLC-to-remote I/O module connectivity.

2. What voltage does this module support?

   • It operates on 24V DC power input.

3. Can the IC660TBD024 be used in high-temperature environments?

   • Yes, it operates within -20°C to +60°C.

4. Is this module compatible with non-GE PLC systems?

   • No, it is designed specifically for GE VersaMax and Genius Bus systems.

5. What are the mounting options?

   • It supports DIN rail mounting for easy installation.

6. Does it require additional cooling or ventilation?

   • No, its rugged design allows passive cooling under normal conditions.

7. What is the maximum communication distance supported?

   • The distance depends on the Genius Bus configuration but typically supports up to 2,000 meters with repeaters.

8. Is the IC660TBD024 RoHS compliant?

   • Yes, it meets RoHS environmental standards.

9. Can this module be replaced while the system is running (hot-swappable)?

   • No, power must be turned off before replacement to avoid communication errors.

10. Where can I find the wiring diagram for this module?

• Refer to the GE VersaMax installation manual or official datasheet.
