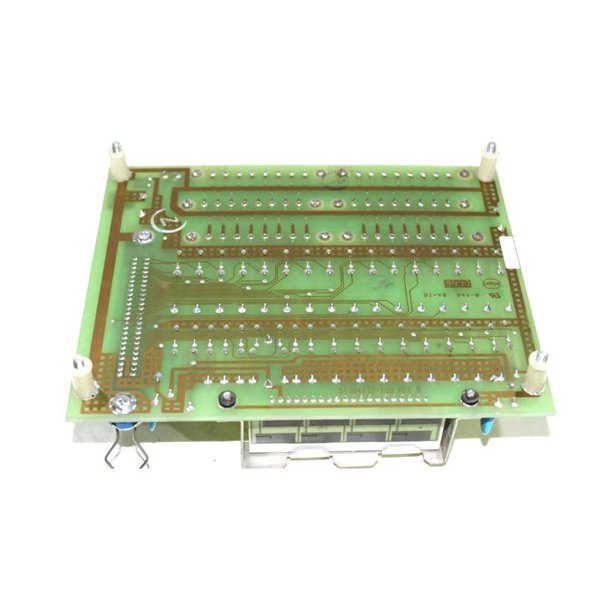

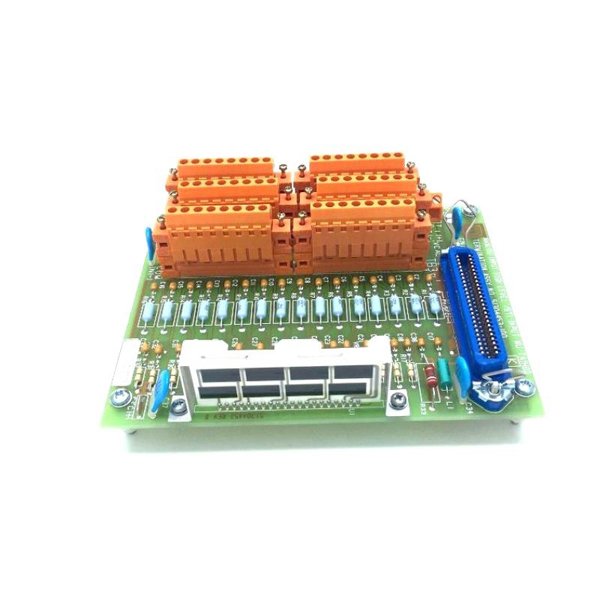

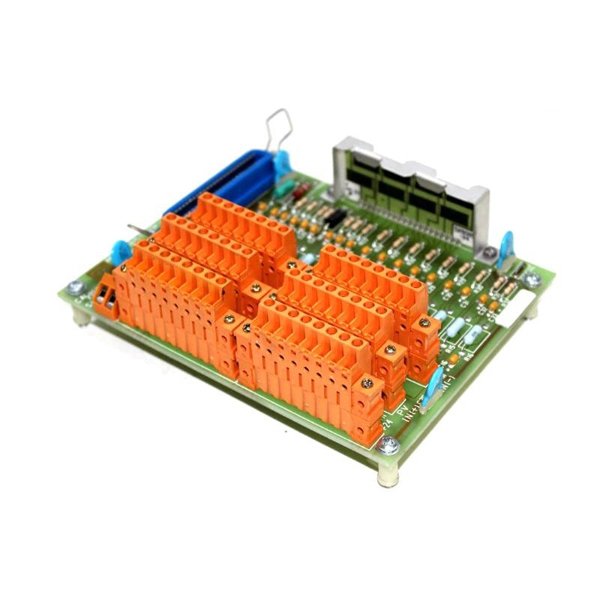

Honeywell MU-TAIH02 51304453-100 High Input Analog / STI Terminal Assembly

The Honeywell MU-TAIH02 51304453-100 is a high-performance high input analog/STI (Signal Terminal Interface) terminal assembly designed to facilitate the connection and integration of analog input signals within Honeywell’s process control and safety systems. This terminal assembly offers a reliable interface point for wiring high-level analog signals, enabling efficient signal transmission and system protection.

Constructed with industrial-grade materials, the MU-TAIH02 supports robust and stable signal communication, even in demanding environments. Its design simplifies field wiring and ensures easy maintenance and troubleshooting. Compact and lightweight, it can be seamlessly integrated into Honeywell’s modular architectures, optimizing panel space and contributing to system reliability.

Technical Specifications

Applications

The Honeywell MU-TAIH02 terminal assembly is extensively used in industrial sectors where reliable high input analog signal wiring is critical. Common applications include:

• Oil & Gas – Interface for high-level analog sensors in refineries and pipeline monitoring.

• Chemical Processing – Secure signal connection for reactor control and instrumentation.

• Power Generation – Connection of temperature, pressure, and flow sensors to control systems.

• Water & Wastewater – Analog input wiring for treatment plant instrumentation.

• Pharmaceutical Manufacturing – Ensuring reliable sensor connections in strict process control environments.

• Food & Beverage – Facilitating high-quality signal transmission for automated processing lines.

Key Advantages

• Robust Signal Interface: Provides stable and secure terminal connection for high-level analog inputs.

• Durable Construction: Built from corrosion-resistant industrial-grade materials ensuring long service life.

• Compact and Space Efficient: Dimensions of 26 × 242 × 175 mm allow easy integration into control panels.

• Lightweight Design: Weighing only 0.45 kg, it reduces installation load.

• Wide Operating Range: Operates reliably between -20°C and +70°C under varied environmental conditions.

• Simplified Wiring: Facilitates easy field wiring, maintenance, and troubleshooting.

• Versatile Mounting Options: Supports both panel and rack mounting to suit installation preferences.

• Compatibility: Designed to interface seamlessly with Honeywell’s modular control and safety systems.

Frequently Asked Questions (FAQ)

1. What type of signals does the MU-TAIH02 terminal assembly support?

   It supports high-level analog input signals.

2. What are the physical dimensions of this module?

   The module measures 26 mm (L) × 242 mm (W) × 175 mm (H).

3. How much does the terminal assembly weigh?

   It weighs approximately 0.45 kg.

4. What temperature range can the MU-TAIH02 operate within?

   Operating temperature ranges from -20°C to +70°C.

5. Is this terminal assembly suitable for panel mounting?

   Yes, it can be mounted on panels or racks.

6. What materials is the assembly made from?

   It is made of industrial-grade, corrosion-resistant materials.

7. Can the MU-TAIH02 be used in harsh industrial environments?

   Yes, it is designed for demanding industrial conditions.

8. Does the assembly support easy field wiring?

   Yes, it facilitates simplified wiring and maintenance.

9. Is it compatible with Honeywell’s safety and control systems?

   Yes, it integrates seamlessly with Honeywell systems.

10. What industries commonly use this terminal assembly?

    Oil & gas, chemical, power generation, pharmaceutical, water treatment, and food & beverage industries.
