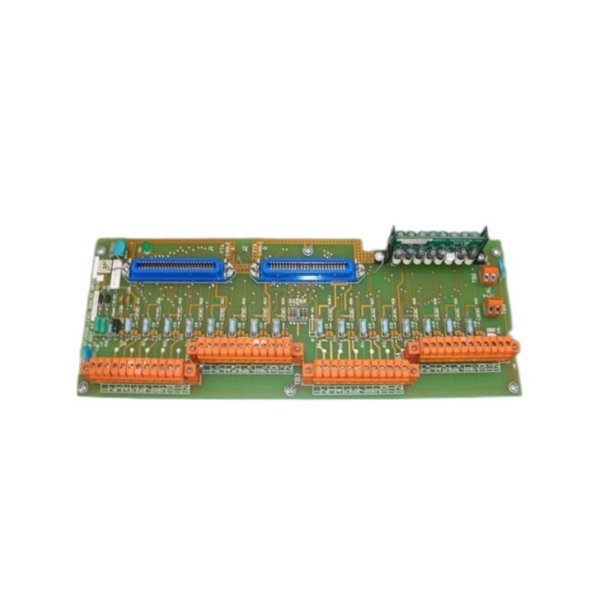

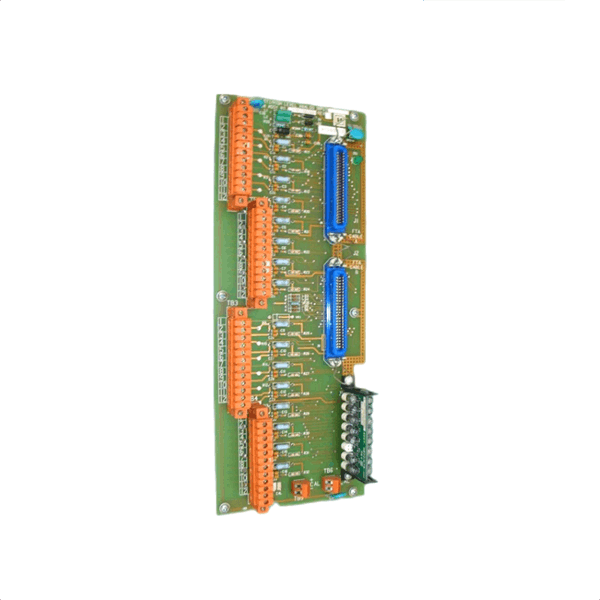

The Honeywell MU-TAIH12 51304337-100 is a durable and efficient high input analog/STI (Signal Terminal Interface) terminal assembly engineered for reliable signal interfacing within Honeywell’s advanced process control and safety systems. This terminal assembly is designed to support high-level analog input signals, ensuring secure, accurate, and stable transmission from field instrumentation to control modules.

Constructed with rugged materials suitable for industrial environments, the MU-TAIH12 simplifies field wiring, reduces installation time, and enhances system reliability. Its compact size and thoughtful design allow seamless integration into control panels or racks, optimizing space usage and supporting straightforward maintenance procedures.

Technical Specifications

Applications

The MU-TAIH12 terminal assembly is widely used in industrial automation environments requiring robust and precise analog signal connections. Common application sectors include:

• Oil & Gas – Connection interface for high-level analog sensors in refining and pipeline systems.

• Chemical & Petrochemical – Reliable signal wiring for process reactors and control instrumentation.

• Power Generation – Instrumentation wiring for temperature, pressure, and flow sensors.

• Water & Wastewater Treatment – Terminal assembly for treatment plant sensor connections.

• Pharmaceutical – High-integrity analog input connections for manufacturing process control.

• Food & Beverage – Facilitating precise signal transmission in automated processing lines.

Key Advantages

• Reliable Signal Interface: Provides a stable and secure connection for high-level analog inputs.

• Rugged and Durable: Built from corrosion-resistant, industrial-grade materials for long service life.

• Compact Dimensions: 120 × 80 × 50 mm form factor fits efficiently within control panels or racks.

• Moderate Weight: At 0.55 kg, easy to install without adding significant load.

• Wide Operating Range: Performs reliably from -20°C to +70°C in varied industrial environments.

• Simplified Wiring: Designed for easy field wiring, reducing installation time and maintenance efforts.

• Flexible Mounting: Supports both panel and rack mounting configurations.

• Full Compatibility: Integrates smoothly with Honeywell’s process control and safety systems.

Frequently Asked Questions (FAQ)

1. What types of signals does the MU-TAIH12 support?

   It supports high-level analog input signals.

2. What are the physical dimensions of the module?

   The dimensions are 120 mm (L) × 80 mm (W) × 50 mm (H).

3. How much does the terminal assembly weigh?

   It weighs approximately 0.55 kg.

4. What is the operating temperature range?

   The module operates between -20°C and +70°C.

5. Can the module be mounted on a panel or rack?

   Yes, it supports both panel and rack mounting options.

6. What material is used in construction?

   It is made from industrial-grade corrosion-resistant materials.

7. Is the MU-TAIH12 suitable for harsh industrial environments?

   Yes, it is designed for rugged and demanding conditions.

8. Does it facilitate easy field wiring?

   Yes, it is designed to simplify wiring and maintenance.

9. Is it compatible with Honeywell control and safety systems?

   Yes, it integrates fully with Honeywell’s systems.

10. Which industries commonly use this terminal assembly?

    Oil & gas, chemical, power generation, pharmaceutical, water treatment, and food & beverage industries.
