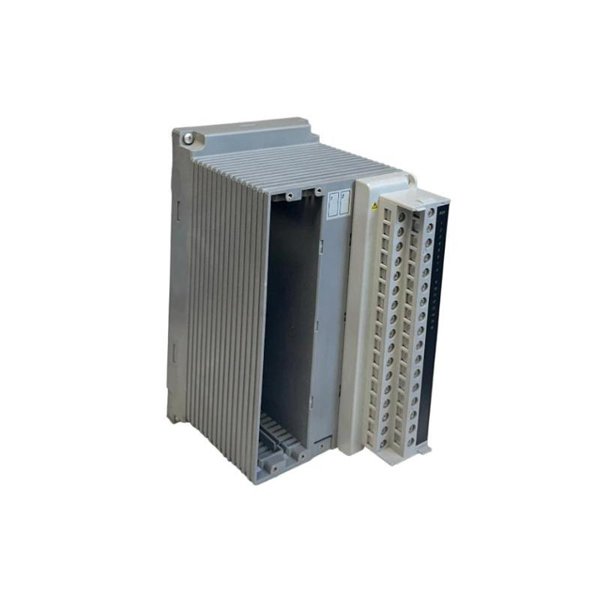

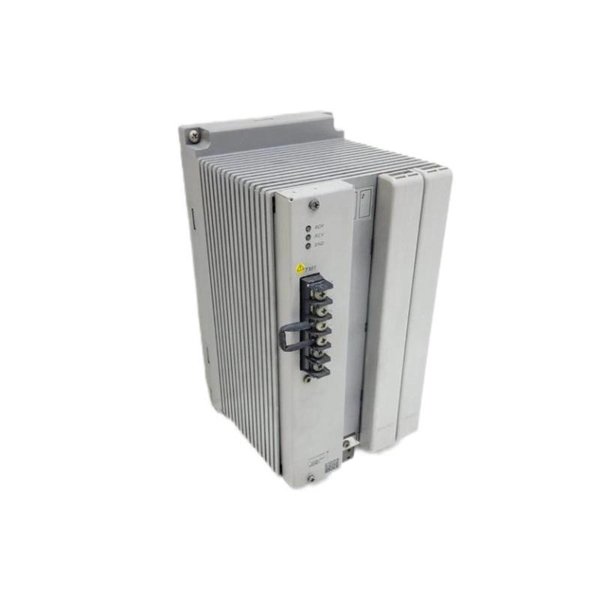

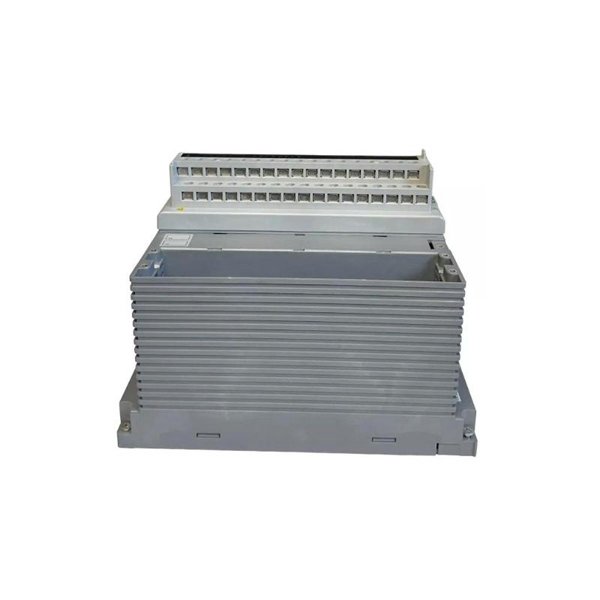

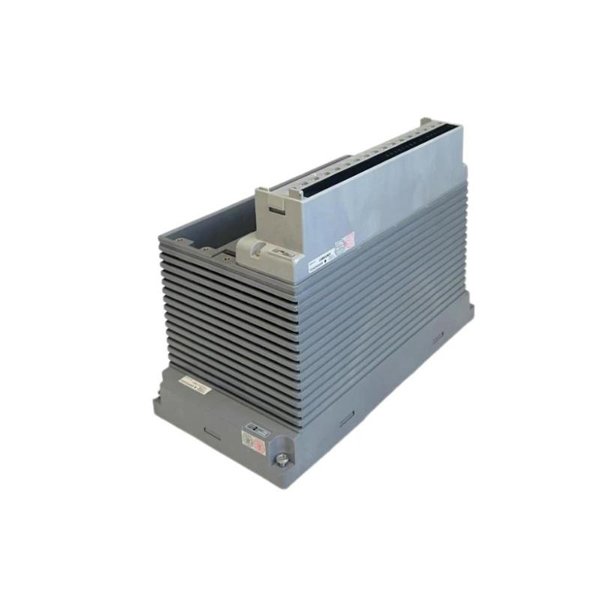

Yokogawa AMN12T-S2 Analog I/O Module High Speed ​​Rack

The Yokogawa AMN12T-S2 Analog I/O Module High-Speed Rack is an advanced modular rack designed for high-performance, high-speed analog data acquisition in industrial automation systems. Built for Yokogawa CENTUM VP and Exa Distributed Control System (DCS), this module rack provides high-speed analog signal processing for critical real-time control applications. The AMN12T-S2 is ideal for use in industries that require rapid data acquisition, including chemical processing, oil & gas, power generation, and automated manufacturing.

With a high-speed sampling rate and modular architecture, the AMN12T-S2 offers flexibility and scalability, making it the perfect choice for process control systems requiring fast, accurate, and reliable analog signal processing.

Key Features

• High-Speed Analog Processing: Supports high-speed signal sampling with rapid response times for real-time data acquisition and control.

• Modular Design: Features a modular architecture that supports the addition of multiple I/O modules, allowing for easy scalability.

• Versatile Signal Compatibility: Compatible with various analog signal types, including voltage, current, RTD, and thermocouples.

• Integrated Power Supply: Includes an internal 24V DC power supply, minimizing the need for external power sources.

• Real-Time Performance: Optimized for real-time processing of analog data, making it ideal for dynamic industrial environments.

• Diagnostic LEDs: Equipped with LED indicators for quick system diagnostics, ensuring easier troubleshooting and monitoring.

• Compact and Efficient: Designed with a compact form factor, allowing for space-efficient installations without compromising performance.

• Temperature Range: Capable of operating within the temperature range of -20°C to +60°C, ensuring reliability in harsh industrial environments.

• Communication Support: Offers compatibility with various industrial communication protocols, including Modbus and Yokogawa proprietary protocols, facilitating easy integration with existing control systems.

Technical Specifications

Industry Applications

• Power Generation: Used in power plants for monitoring critical parameters like voltage, current, and temperature in real-time to ensure continuous and safe operation.

• Oil & Gas: Supports high-speed data processing for monitoring of flow, pressure, and temperature in oil fields, refineries, and gas plants.

• Chemical Processing: Enables rapid feedback and control of process parameters, such as pH, pressure, and temperature, for high-precision chemical manufacturing.

• Automated Manufacturing: Ideal for use in automated manufacturing systems that require real-time data processing to ensure optimal performance and product quality.

• Water and Wastewater Treatment: Provides reliable, high-speed analog data acquisition for critical processes such as flow measurement, chemical dosing, and water quality monitoring.

Product Advantages

• High-Speed Data Acquisition: The AMN12T-S2 is designed for high-speed analog signal processing, making it ideal for applications requiring real-time data to make quick decisions.

• Space-Efficient Design: Its compact form factor allows it to fit easily into existing control cabinets, making it suitable for installations where space is limited.

• Real-Time Performance: Optimized for real-time data processing, the module rack ensures minimal delay in signal acquisition and control actions, making it ideal for high-performance applications.

• Flexible Signal Compatibility: Supports a wide range of analog signals, including voltage, current, RTD, and thermocouple, providing flexibility in different types of industrial processes.

• Modular Design for Expansion: The modular rack design allows users to easily expand the system by adding more I/O modules as their needs grow.

• Diagnostic Capabilities: Equipped with diagnostic LEDs, the AMN12T-S2 helps users monitor the system’s health and quickly troubleshoot any faults.

• Integrated Power Supply: The internal 24V DC power supply simplifies wiring and reduces the need for additional external power sources.

• Wide Operating Temperature Range: With a wide operating temperature range of -20°C to +60°C, it can function reliably in various industrial environments.

Frequently Asked Questions (FAQ)

1. How many I/O modules can the AMN12T-S2 rack support?

   The AMN12T-S2 can support up to 16 I/O modules.

2. What types of signals does the AMN12T-S2 support?

   The AMN12T-S2 supports voltage, current, RTD, and thermocouple analog signals.

3. What is the power supply requirement for the AMN12T-S2?

   The AMN12T-S2 operates with an internal 24V DC power supply.

4. What is the operating temperature range for the AMN12T-S2?

   The AMN12T-S2 operates within a temperature range of -20°C to +60°C.

5. Can the AMN12T-S2 be used in high-performance applications?

   Yes, the AMN12T-S2 is optimized for high-speed data acquisition and real-time processing, making it ideal for demanding industrial applications.

6. How is the AMN12T-S2 mounted?

   The module rack is designed for DIN rail mounting, making it easy to install in standard control cabinets.

7. Does the AMN12T-S2 have diagnostic features?

   Yes, the AMN12T-S2 comes with diagnostic LEDs for status monitoring and fault detection.

8. Can I expand the system by adding more I/O modules?

   Yes, the AMN12T-S2 has a modular design, allowing you to expand the system by adding more I/O modules.

9. What communication protocols are supported by the AMN12T-S2?

   The AMN12T-S2 supports Modbus and Yokogawa’s proprietary communication protocols.

10. What is the weight of the AMN12T-S2?

    The AMN12T-S2 weighs approximately 2.0 kg.
