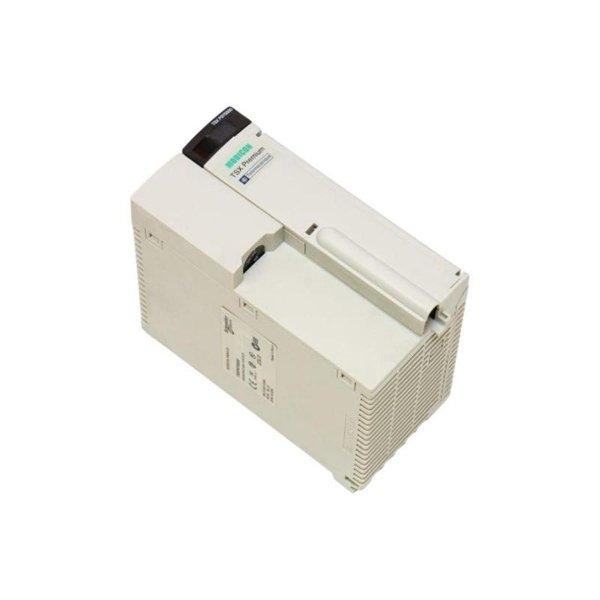

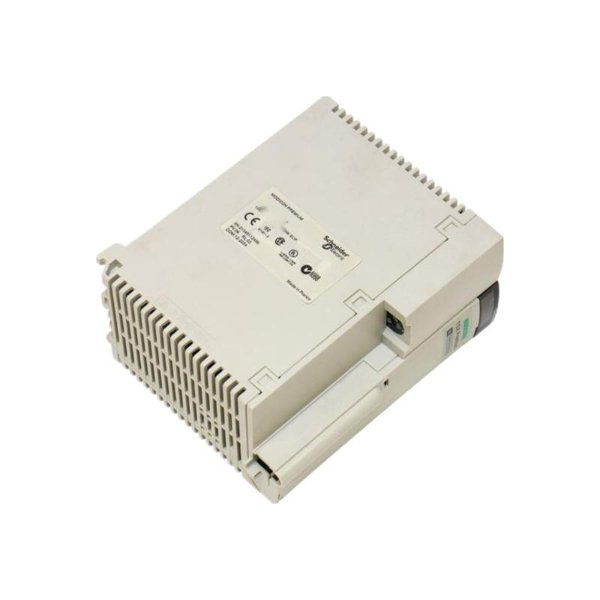

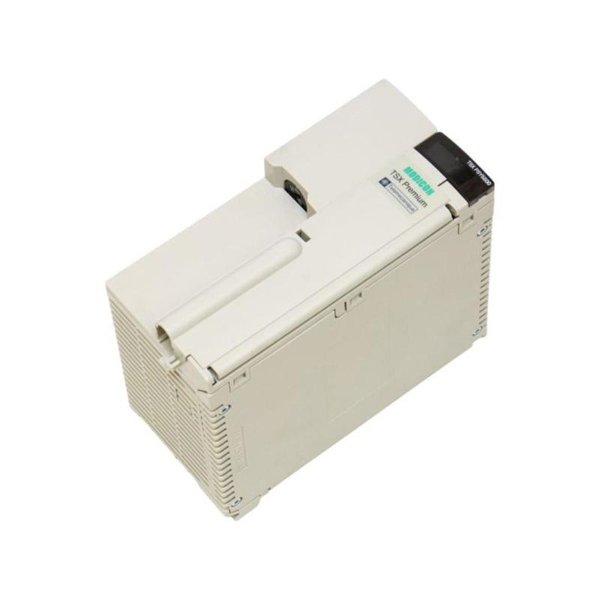

Schneider TSXPSY5500M Power Module

The Schneider TSXPSY5500M is a high-performance power supply module engineered to support large and complex Modicon Premium PLC installations. It delivers dual output voltages of 5 VDC and 24 VDC, with maximum current outputs of 13 A and 2 A respectively. This makes it particularly suitable for systems with high I/O counts, multiple expansion racks, or modules requiring 24 VDC logic or sensor power.

Designed for rack mounting on the Premium PLC backplane, the TSXPSY5500M ensures robust and stable power delivery across an industrial control network. Built-in safety features protect against overload, short-circuit, and overvoltage conditions, while LED indicators provide immediate diagnostic feedback. This module is ideal for critical control systems requiring uninterrupted and high-capacity power delivery.

Key Features

• Dual regulated output: 5 VDC @ 13 A and 24 VDC @ 2 A

• Universal AC input range: 100–240 VAC, 50/60 Hz

• Advanced protection: short-circuit, overload, overvoltage

• LED indicators for power and fault monitoring

• Designed for Premium PLC large system architectures

• Suitable for high-density digital and analog I/O modules

• CE, UL, CSA, RoHS certified

• Rack-mounted for integration with Premium backplane

Technical Specifications

Product Advantages

• Dual Output Capability: Powers both logic (5 VDC) and field devices/sensors (24 VDC) from a single module.

• High Current Support: Provides 13 A at 5 VDC — ideal for large systems with high CPU and I/O power demands.

• Enhanced Safety: Integrated fault protections prevent damage during overload or voltage events.

• Clear Diagnostics: Front-facing LED indicators simplify fault identification and maintenance.

• Robust Construction: Industrial-grade build ensures reliable operation under harsh conditions.

• Simplified Integration: Fully compatible with Premium PLC racks, saving engineering time.

• Versatile Applications: Suitable for applications involving sensor power, analog loops, and actuators.

• Certified and Compliant: Meets global standards for industrial electrical safety and EMC.

Industry Applications

• Large-scale factory automation and machine control

• Oil & gas processing units and pipeline systems

• Utilities and electrical substations

• Water treatment and desalination plants

• High-speed packaging and logistics automation

• Pharmaceutical batch processing and cleanroom systems

• Automotive production lines with high I/O requirements

Frequently Asked Questions (FAQ)

1. Q: What are the output ratings of the TSXPSY5500M?

   A: It provides 5 VDC at 13 A and 24 VDC at 2 A.

2. Q: Is this module compatible with all Modicon Premium PLC racks?

   A: Yes, it is designed to fit into all standard Modicon Premium PLC backplanes.

3. Q: Can I power field sensors with the 24 VDC output?

   A: Yes, the 24 VDC output is suitable for powering external sensors or actuators.

4. Q: What happens in case of a short circuit?

   A: The power module automatically shuts down to protect the system and restarts after the fault is cleared.

5. Q: Does this module have any form of visual status feedback?

   A: Yes, it includes Power ON (green) and Fault (red) LED indicators.

6. Q: Is external cooling required for this power supply?

   A: No active cooling is required under normal conditions; it is passively cooled.

7. Q: What certifications does the TSXPSY5500M hold?

   A: It is CE, UL, CSA, and RoHS certified.

8. Q: Can it be used in a redundant power setup?

   A: While not inherently redundant, it can be used in systems designed with external redundancy logic.

9. Q: What type of wiring connectors does it use?

   A: It uses internal backplane power distribution; no external connectors are needed.

10. Q: Is this module hot-swappable?

    A: No, power must be off during installation or removal.
