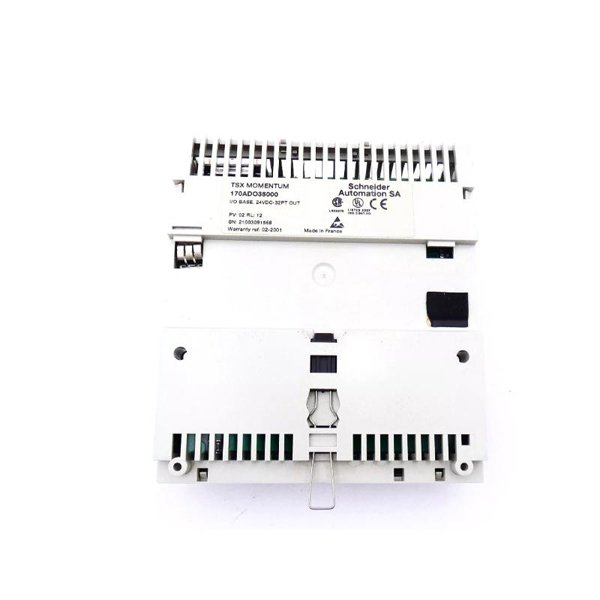

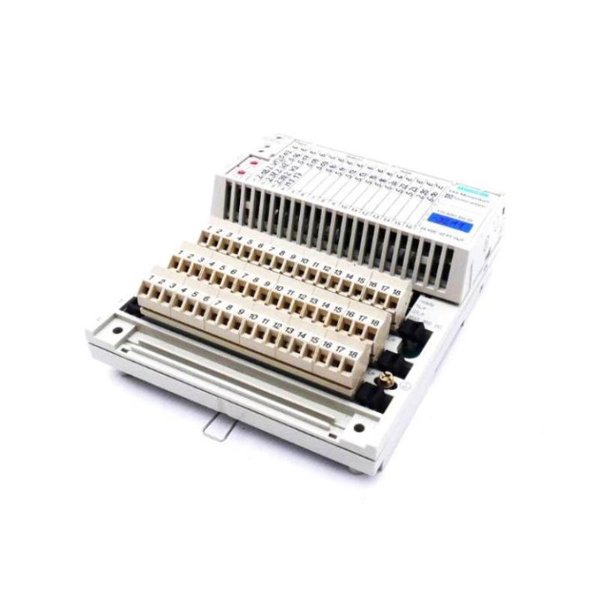

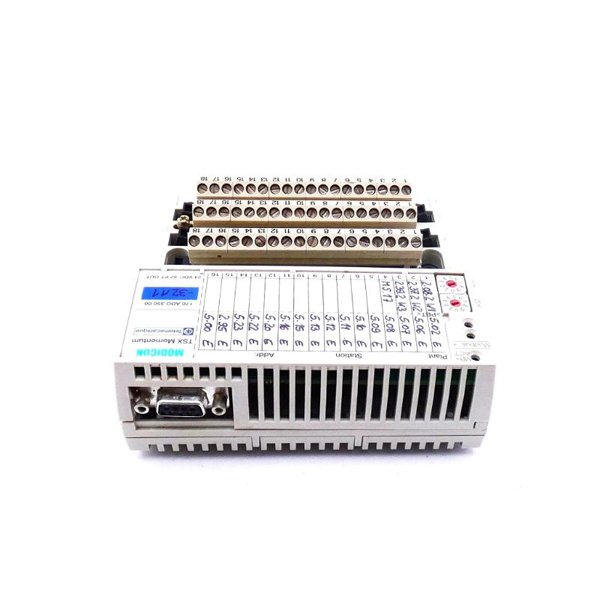

Schneider 170ADO35000 Discrete Output Module
Manufacturer:Schneider
Product Number:170ADO35000
Product Type:Discrete Output Module
Origin:France
Dimensions:47.5 × 125 × 141.5 mm
Weight:0.21 kg
Views:123
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 170ADO35000 is a discrete output module designed for use in Modicon Momentum automation systems. It delivers reliable digital signal control, supporting various industrial output devices. With 16 output channels, it is ideal for compact installations requiring efficient discrete output control.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Discrete Output Module |
| Output Channels | 16 |
| Output Type | Source (positive logic) |
| Voltage Range | 24 VDC |
| Output Current per Channel | 0.5 A max |
| Backplane Current | 90 mA |
| Response Time | < 1 ms |
| Isolation Voltage | 500 V AC (between channels & logic) |
| LED Indicators | Yes, per channel |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Dimensions (W × H × D) | 47.5 × 125 × 141.5 mm |
| Weight | 0.21 kg |
Applications
-
Industrial machinery control
-
Packaging and conveyor systems
-
Water treatment facilities
-
Building automation systems
-
Discrete manufacturing lines
Advantages
-
Compact footprint for space-constrained panels
-
Quick response time under 1 ms
-
Integrated status LEDs for channel diagnostics
-
Reliable operation under industrial conditions
-
Easy integration into Modicon Momentum systems
Frequently Asked Questions (FAQ)
Q1: What type of signals does the 170ADO35000 module output?
A1: It outputs 24 VDC discrete signals using positive logic (source type).
Q2: How many output channels are available on the module?
A2: The module has 16 discrete output channels.
Q3: Can the 170ADO35000 handle inductive loads?
A3: Yes, but external protection (e.g., flyback diodes) is recommended.
Q4: Is the module hot-swappable?
A4: No, power must be removed before installation or removal.
Q5: What is the maximum output current per channel?
A5: Each channel can handle up to 0.5 A.
Q6: Are the channels individually isolated?
A6: No, channels share a common reference and are not isolated individually.
Q7: Can I use this module in high-vibration environments?
A7: Yes, it meets industrial vibration standards for secure operation.
Q8: Does it support output diagnostics?
A8: Yes, LED indicators provide output status per channel.
Q9: What controller platform is this module compatible with?
A9: It is compatible with Modicon Momentum PLC systems.
Q10: What is the power consumption of the module?
A10: The backplane current draw is 90 mA at 5 VDC.
