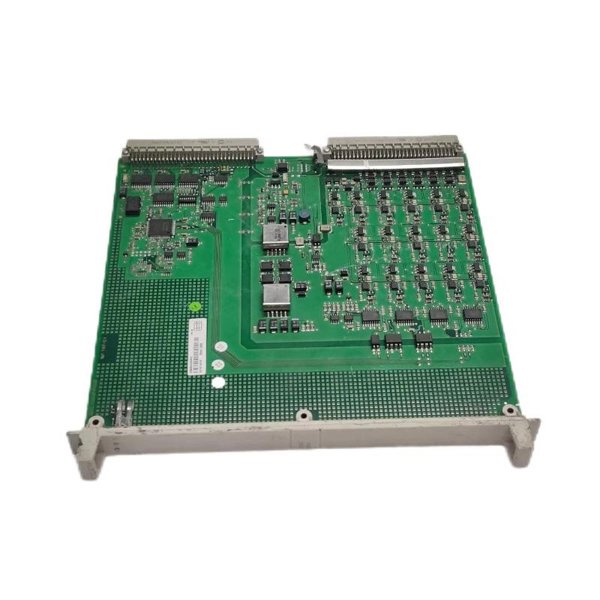

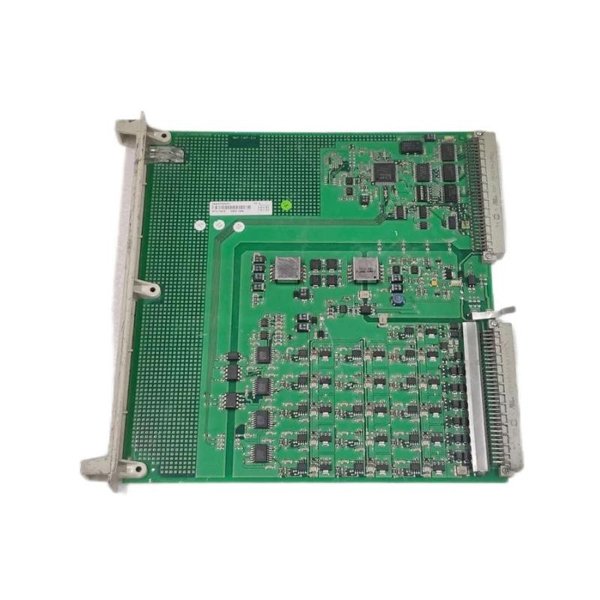

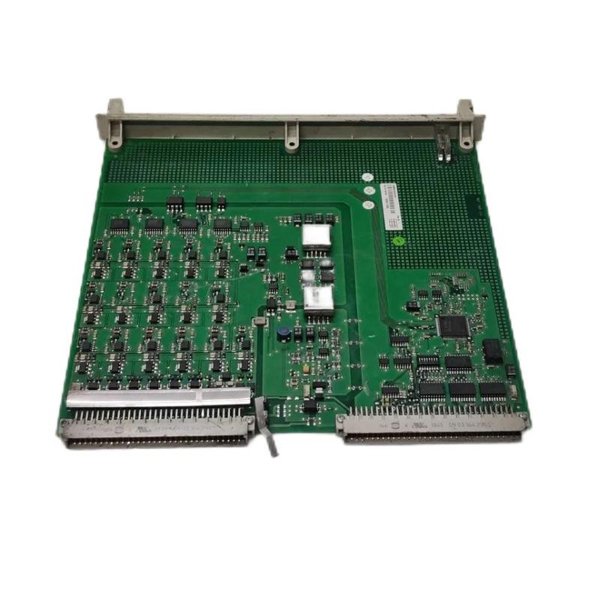

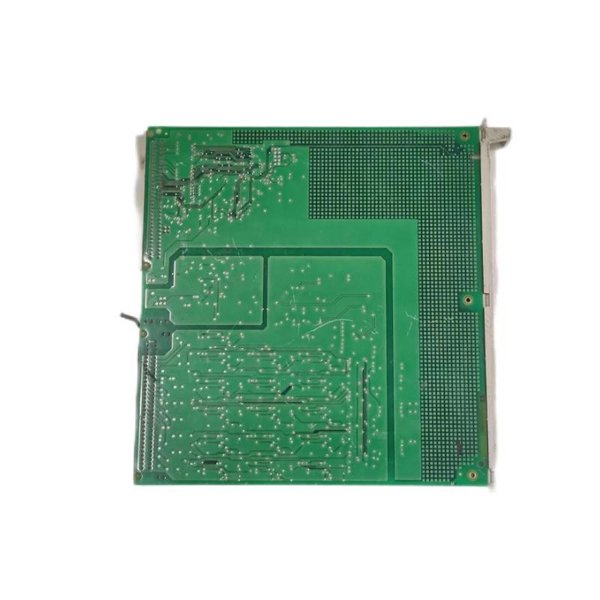

ABB DSAO 130A 3BSE018294R1 DS analog output board

This model is built for robustness and long-term service in demanding settings like oil & gas, chemical plants, utilities, and power generation facilities. It is engineered to maintain compatibility with various ABB controllers and systems, ensuring seamless integration and enhanced productivity.

Product Features and Advantages

• High Accuracy: Offers precise analog output control for improved process performance.

• Multiple Output Ranges: Supports standard voltage and current output formats (e.g., 0–10V, 4–20mA).

• Reliable Operation: Designed to maintain performance under industrial stress (temperature, humidity, vibrations).

• Hot Swap Capability: Can be replaced without system shutdown, reducing downtime.

• System Compatibility: Fully compatible with ABB’s Advant and 800xA control systems.

• Diagnostic Functions: Advanced self-diagnostics for fault detection and maintenance planning.

• Shielded Design: Improved EMC protection to minimize interference in noisy environments.

Technical Specifications

Applications

The DSAO 130A module is widely used across industries requiring precision analog output control:

• Power Generation Plants: For turbine control, generator monitoring, and field device actuation.

• Oil & Gas Refineries: Used for controlling valves, pumps, and metering systems.

• Chemical Processing: Enables accurate dosage and flow regulation in chemical reactors.

• Water and Wastewater Management: Controls pumps, valves, and flow control devices.

• Pharmaceutical Manufacturing: For precise output to dosage systems and equipment control.

• Metallurgy and Mining: For actuator feedback and machinery control integration.

Installation Guide

1. Mounting: Secure the module on a DIN rail within the control cabinet.

2. Wiring: Use shielded cables for analog signal transmission; observe polarity and grounding standards.

3. Configuration: Use ABB configuration tools (e.g., Control Builder) to assign channels and ranges.

4. Testing: Run diagnostics via the control system to ensure all channels are functioning.

5. Maintenance: Perform regular I/O checks and inspect wiring for wear or electromagnetic interference.

Frequently Asked Questions (FAQ)

Q1: What output types does the DSAO 130A support?

A1: It supports configurable voltage (0–10V) and current (4–20mA, 0–20mA) outputs.

Q2: Can the module be hot-swapped during operation?

A2: Yes, the DSAO 130A supports hot-swapping, allowing replacement without system downtime.

Q3: Is the module compatible with the ABB 800xA system?

A3: Yes, it is fully compatible with both Advant Master and 800xA systems.

Q4: How many analog output channels does the module offer?

A4: The DSAO 130A offers 8 independent analog output channels.

Q5: Does the module provide isolation between channels?

A5: Yes, it includes galvanic isolation for each output channel.

Q6: What is the resolution of the output signal?

A6: The module provides 12-bit resolution per output channel.

Q7: What is the operating temperature range for this module?

A7: It operates reliably between 0°C and +60°C.

Q8: What type of mounting is supported?

A8: DIN rail mounting is supported for easy integration into control panels.

Q9: What tools are required for configuration?

A9: ABB configuration tools such as Control Builder or Composer are typically used.

Q10: How much does the module weigh?

A10: The module weighs approximately 0.318 kg.
