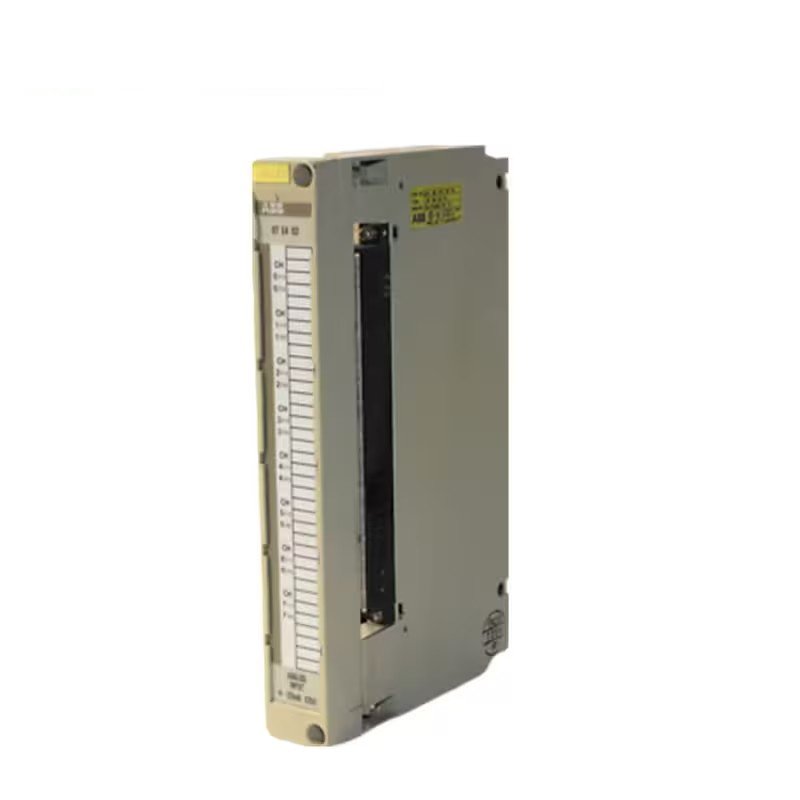

ABB 07EA63R1 GJV3074353R1 Analog Input Module

The ABB 07EA63R1 GJV3074353R1 is an analog input module designed for industrial automation applications. You typically use it in ABB’s Advant series and other control platforms. This module handles a maximum of 16 analog inputs for 2-wire configurations. It allows you to measure various analog signals, such as voltage, current, and temperature.

Technical Specifications

• Number of Channels: 16 analog input channels
• Input Type: Typically supports 2-wire analog inputs
• Input Range: Common ranges include 0-10V and 4-20mA
• Resolution: Higher resolution allows for more precise measurements
• Accuracy: Indicates how closely the measured value matches the actual value
• Sampling Rate: A higher rate provides more real-time data
• Isolation: Protects the control system from electrical noise and interference
• Power Supply: Requires specific voltage and current for operation

Applications

• Process Control: Monitors and controls process variables like temperature, pressure, and flow rate
• Machine Automation: Measures parameters such as motor speed, position, and force for precise control
• Data Acquisition: Collects analog data for analysis and monitoring
