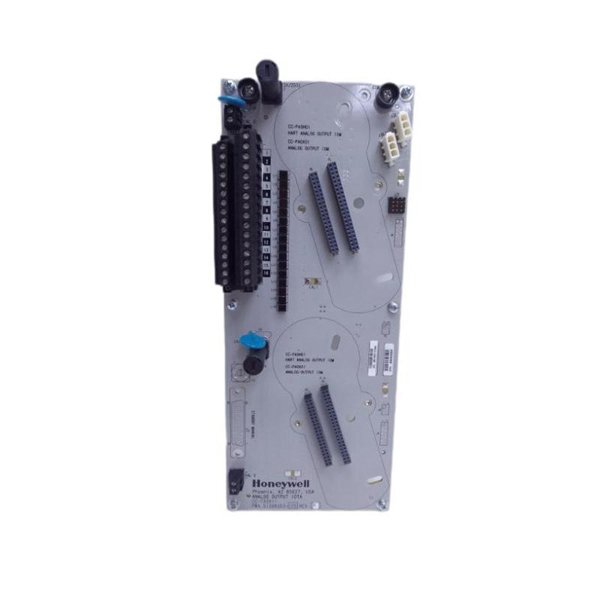

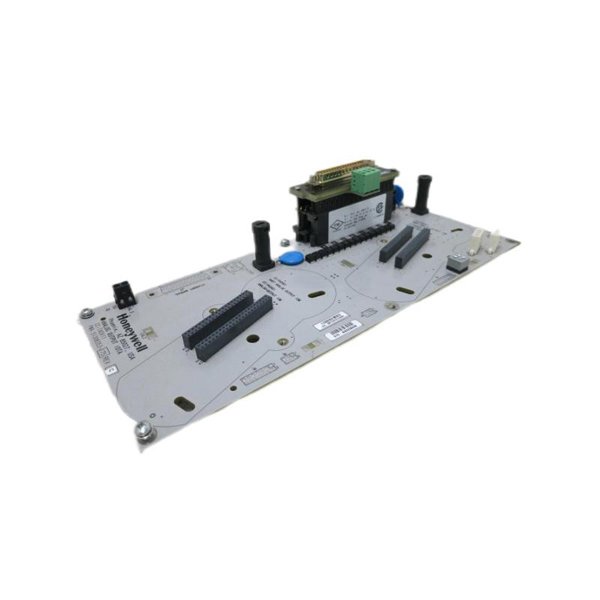

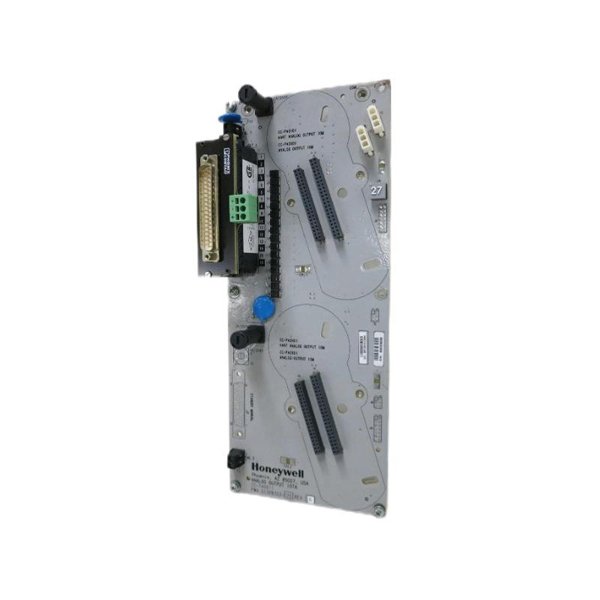

Honeywell DC-TAOX11 51307605-176 Analog Output Module

The Honeywell DC-TAOX11 51307605-176 is a high-performance Analog Output Module designed for precise control in industrial automation systems. As part of Honeywell’s reliable control hardware portfolio, this module converts digital signals into accurate analog outputs, enabling effective control of actuators, valves, motors, and other process devices.

Its compact size (156 x 66 x 30 mm) and moderate weight (0.5 kg) allow for easy installation within tight control panel spaces. The module supports multiple analog output channels and is compatible with standard industrial signal ranges such as 4-20 mA and 0-10 V, providing versatile integration options across numerous applications.

This module is well-suited for industries requiring dependable and stable analog output performance including process automation, power generation, manufacturing, and building management systems.

Product Parameters

Product Applications

The DC-TAOX11 module is widely utilized in a broad spectrum of industrial environments where reliable analog output is crucial:

• Process Automation

  Controls valves, pumps, and actuators in chemical, petrochemical, pharmaceutical, and food processing plants.

• Power Generation

  Regulates turbine control systems, generator excitation, and other power plant equipment.

• Manufacturing

  Manages analog control signals for conveyors, robotic arms, and assembly line equipment.

• Building Automation

  Interfaces with HVAC controls, lighting dimmers, and environmental systems.

• Water and Wastewater Treatment

  Controls dosing pumps, valve actuators, and other process equipment.

• Infrastructure and Utilities

  Used in environmental control systems, monitoring stations, and infrastructure automation.

Product Advantages

1. High Precision Output

   Equipped with 16-bit DAC, the module delivers accurate and stable analog signals with ±0.1% full-scale accuracy.

2. Multiple Output Channels

   Provides 8 channels for controlling various devices simultaneously.

3. Versatile Signal Compatibility

   Supports standard industrial output signals including 4-20 mA, 0-20 mA, and 0-10 V.

4. Compact and Lightweight Design

   With dimensions of 156 x 66 x 30 mm and a weight of only 0.5 kg, it fits well in tight spaces.

5. Wide Operating Temperature Range

   Reliable operation between -20°C and +70°C suits harsh industrial conditions.

6. Energy Efficient

   Operates on a 24 VDC power supply, minimizing energy consumption.

7. Easy DIN Rail Mounting

   Facilitates quick installation and replacement.

8. Robust Construction

   Designed to withstand industrial environments, ensuring long service life.

9. Stable Load Handling

   Supports load resistances up to 500 Ω, suitable for most industrial actuators.

10. Seamless Integration

    Compatible with Honeywell DCS and other automation platforms, enabling smooth system integration.

Frequently Asked Questions (FAQ)

1. Q: How many output channels does the DC-TAOX11 support?

   A: It supports 8 analog output channels.

2. Q: What types of output signals can it generate?

   A: It can output 4-20 mA, 0-20 mA, and 0-10 V signals.

3. Q: What are the module’s dimensions?

   A: 156 x 66 x 30 mm.

4. Q: What is the weight of the module?

   A: The module weighs 0.5 kg.

5. Q: What is the accuracy of the analog output?

   A: ±0.1% of full scale.

6. Q: What is the maximum load resistance it can handle?

   A: Up to 500 Ω for current outputs.

7. Q: What is the operating temperature range?

   A: -20°C to +70°C.

8. Q: How is the module mounted?

   A: It is mounted on a DIN rail.

9. Q: What power supply voltage is required?

   A: 24 VDC power supply.

10. Q: Is the DC-TAOX11 compatible with Honeywell control systems?

    A: Yes, it integrates seamlessly with Honeywell DCS and related platforms.
