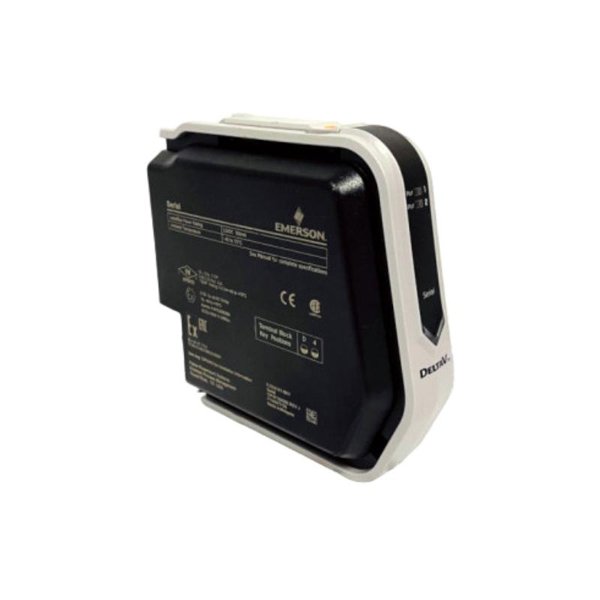

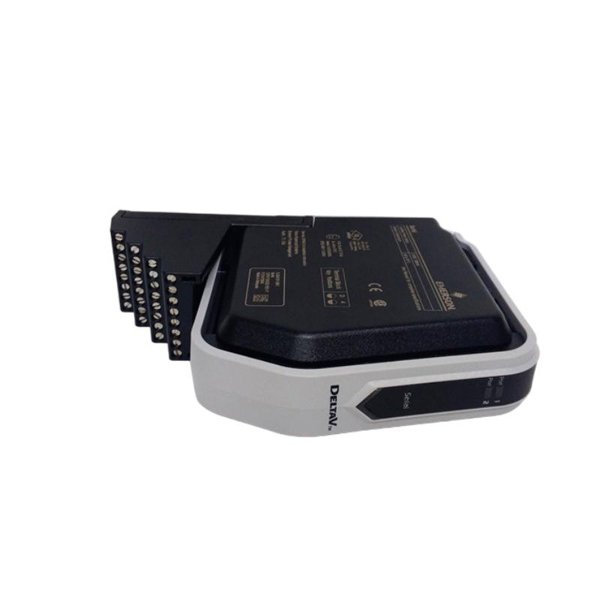

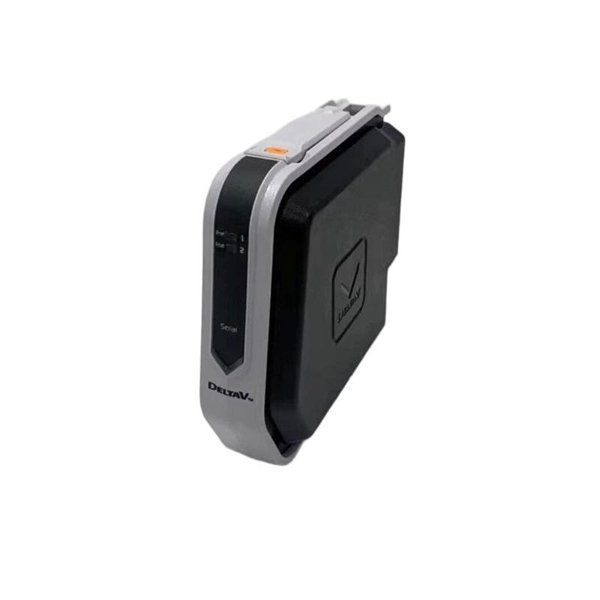

Emerson SE4006P2 Serial Interface Module

​The Emerson SE4006P2 Serial Interface Module is a high-performance communication solution designed to provide reliable and flexible serial connectivity for industrial control systems. This module supports multiple serial communication protocols, ensuring seamless integration into various automation and control systems.

Ideal for industrial environments where robust and secure data transmission is essential, the SE4006P2 module offers high-speed communication and minimizes latency, ensuring real-time data exchange across a variety of connected devices. Its versatile design allows it to support different serial communication standards such as RS-232, RS-485, and RS-422, providing extensive compatibility with legacy and modern industrial systems.

The module’s easy-to-integrate features make it a perfect solution for automation, monitoring, and control in industries like manufacturing, energy, and process control.

Technical Specifications

Product Applications

The Emerson SE4006P2 Serial Interface Module finds applications across various industries where serial communication is crucial for system integration and data exchange:

• Automation Systems: It serves as a communication bridge between different automation devices, supporting protocols like MODBUS RTU and Profibus, enabling efficient data transfer in manufacturing systems.

• Process Control: Used in process control applications to interface with sensors, controllers, and PLCs, ensuring seamless communication and real-time data processing.

• Energy Management: In energy management systems, it connects power meters, transformers, and other monitoring equipment, offering efficient serial communication for data collection and analysis.

• Building Automation: The SE4006P2 is ideal for building automation systems, offering reliable communication with HVAC, lighting, and security systems.

• Remote Monitoring: It facilitates remote monitoring and control of industrial devices by providing a reliable interface between monitoring equipment and central control systems.

Its support for multiple serial communication standards makes it adaptable to various automation environments.

Product Advantages

• Multi-Protocol Support: The SE4006P2 supports a variety of communication protocols such as MODBUS RTU, Profibus, and CANopen, making it compatible with most industrial systems.

• High Data Rate: The module can achieve data rates of up to 115.2 kbps, enabling fast communication in real-time applications.

• Wide Temperature Range: With an operating temperature range of -20°C to 60°C, the SE4006P2 is suitable for use in both harsh and demanding environments.

• Flexible Interface Options: The SE4006P2 supports multiple serial communication standards (RS-232, RS-485, RS-422), offering flexibility for different system integration needs.

• Compact Design: Its compact size (162 x 41.8 x 199.3 mm) allows easy integration into existing control systems without taking up too much space.

• Reliable and Secure Communication: Designed for industrial use, the module provides secure and stable communication, reducing the risk of data loss or corruption.

FAQ

1. What serial communication protocols does the SE4006P2 support?

The SE4006P2 supports RS-232, RS-485, and RS-422 serial communication standards, allowing it to connect with various industrial devices.

2. What communication protocols are supported by the SE4006P2 for data transmission?

The SE4006P2 supports MODBUS RTU, Profibus, and CANopen protocols, ensuring compatibility with most industrial communication networks.

3. What is the maximum data rate of the SE4006P2?

The SE4006P2 can achieve data rates of up to 115.2 kbps, making it suitable for high-speed communication requirements.

4. What is the operating temperature range of the SE4006P2?

The module operates within a temperature range of -20°C to 60°C, allowing it to function effectively in a wide range of environments.

5. How does the SE4006P2 ensure reliable communication?

The SE4006P2 uses advanced signal processing techniques to ensure stable and secure data transmission, minimizing the risk of data corruption or loss.

6. What power supply is required for the SE4006P2?

The SE4006P2 requires a 24 VDC power supply, which is standard for most industrial control systems.

7. Can the SE4006P2 be integrated into existing control systems?

Yes, the SE4006P2 can be easily integrated into existing industrial control systems due to its compatibility with multiple communication protocols.

8. What is the humidity range for the SE4006P2 module?

The SE4006P2 can operate in environments with humidity levels ranging from 5% to 95% non-condensing.

9. What are the dimensions and weight of the SE4006P2?

The SE4006P2 has dimensions of 162 x 41.8 x 199.3 mm and weighs 0.29 kg, making it compact and suitable for various installations.

10. What industrial applications is the SE4006P2 best suited for?

The SE4006P2 is ideal for automation systems, process control, energy management, building automation, and remote monitoring applications.
