Schneider TSXRKY6 Non-Extendable Rack

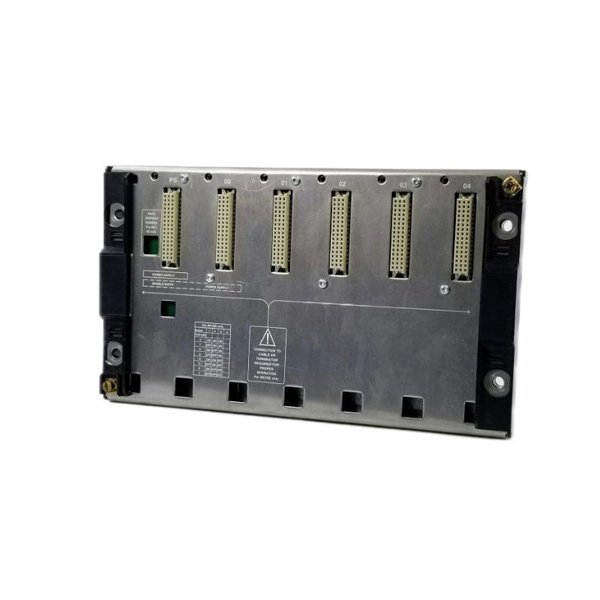

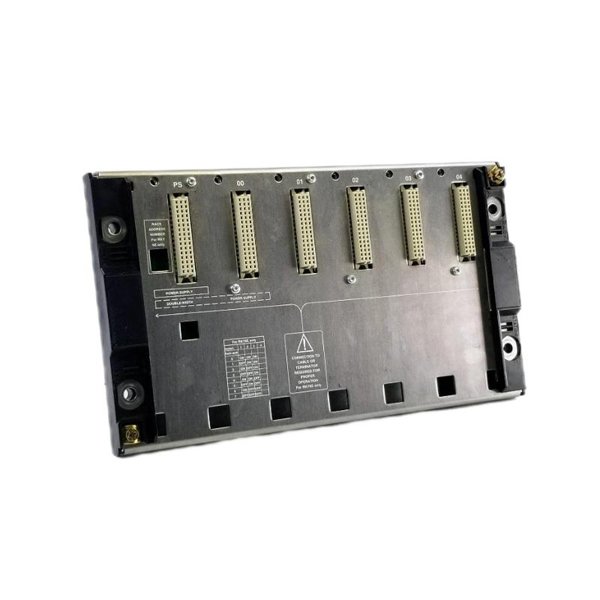

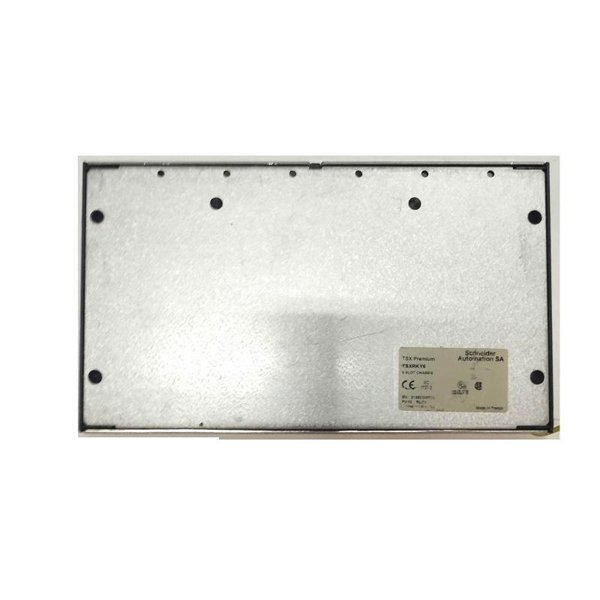

The Schneider TSXRKY6 is a 6-slot non-extendable rack specifically developed for the Modicon TSX Premium series of programmable logic controllers. It provides a robust and compact platform for mounting CPU, power supply, and I/O modules. Engineered for industrial control systems, this rack ensures secure backplane communication while maintaining durability in demanding environments. Its structure allows for straightforward panel integration without the need for extension racks or complex wiring.

Technical Specifications

Applications

The TSXRKY6 rack is widely used in various industrial environments that demand reliable and compact automation solutions. It is particularly suitable for:

• Process control in manufacturing lines

• Electrical control panels in packaging systems

• Machine automation in the automotive and textile industries

• Handling systems in warehouses and logistics facilities

• Compact control panels where no extension is required

• Medium-sized PLC configurations using TSX Premium modules

Advantages

• Compact Footprint: Ideal for space-limited control cabinets

• Robust Build: Metallic chassis ensures durability in industrial settings

• Simple Panel Integration: Designed for standard panel-mounting methods

• Integrated Communication Bus: Facilitates seamless module interaction

• Zero External Bus Requirement: Reduces wiring complexity

• High Compatibility: Fully supports TSX Premium power and CPU modules

Frequently Asked Questions (FAQ)

Q1: What modules can be installed in the TSXRKY6?

A1: It accommodates CPU, power supply, and I/O modules from the TSX Premium series.

Q2: Is this rack compatible with TSX Micro or M340 modules?

A2: No, it is designed specifically for TSX Premium modules.

Q3: How many modules can this rack hold?

A3: It can support up to 6 modules.

Q4: Can this rack be expanded with another TSX rack?

A4: No, it is a non-extendable model and does not support expansion.

Q5: Is the power supply included with this rack?

A5: No, it must be purchased and installed separately.

Q6: What type of bus is used in this rack?

A6: It uses an integrated backplane bus to connect modules.

Q7: Can this rack be mounted on a DIN rail?

A7: No, it is intended for panel mounting only.

Q8: Does it require configuration?

A8: The rack itself doesn’t require configuration; individual modules do.

Q9: What is the operating temperature range?

A9: From 0°C to +60°C, suitable for typical industrial environments.

Q10: What protective features does the rack offer?

A10: It has an IP20 protection rating when housed in an enclosure.
