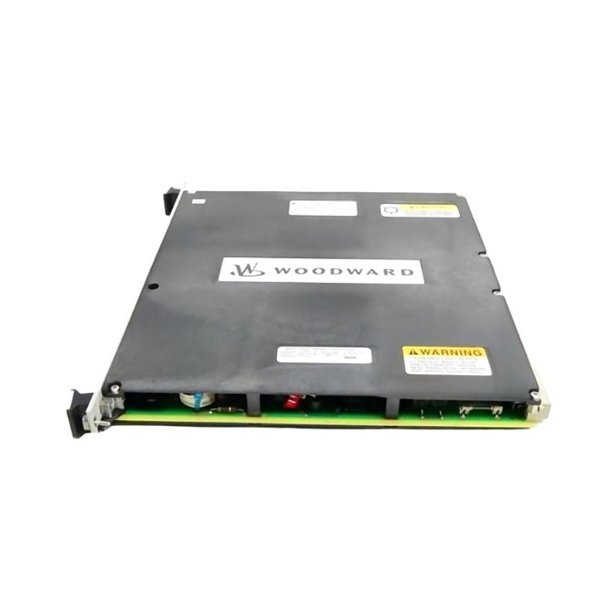

Woodward 5501-429 Actuator Controller

The Woodward 5501-429 Actuator Controller is a high-performance controller designed for precision control of actuators in industrial and power generation applications. This actuator controller provides a robust and reliable solution for controlling mechanical movements, particularly in turbines, engines, and other mechanical systems requiring accurate position feedback and fast response times. The 5501-429 is part of Woodward’s line of highly advanced control systems, designed to offer smooth integration with existing control frameworks while ensuring optimal performance in demanding environments.

This actuator controller is built to handle complex processes and improve system efficiency by enabling precise actuator movement control in applications such as fuel regulation, valve actuation, and turbine speed control. The 5501-429 integrates seamlessly with other Woodward systems and is ideal for use in critical applications where high reliability and responsiveness are needed.

Technical Specifications

Applications

The Woodward 5501-429 Actuator Controller is used in various industries where precise and reliable actuator control is required. Some of its primary applications include:

• Turbine Control: This controller is used in steam, gas, and hydro turbines for precise speed and positioning control of the turbine actuators, ensuring optimal efficiency and performance.

• Gas and Diesel Engines: It is used to control the fuel injectors and throttle valves in engines, ensuring accurate fuel management and optimal combustion.

• Valve Actuation: The controller is ideal for controlling valve positions in industrial processes, such as oil and gas refineries or chemical plants, ensuring smooth operation and preventing mechanical failures.

• Power Generation: Used to maintain power plant stability by precisely controlling generator actuators and ensuring reliable load regulation.

• Industrial Automation: Provides actuator control in industrial applications, improving operational precision in manufacturing processes.

• Hydraulic Systems: It is used to control hydraulic actuators in critical applications like aerospace, mining, and manufacturing.

Advantages

• High Precision Control: The 5501-429 offers highly accurate control over actuator movement, ensuring precise positioning and fast response times in critical applications.

• Robust Design: Built to withstand extreme environmental conditions, the controller operates efficiently in temperatures ranging from -40°C to +85°C, making it suitable for harsh industrial environments.

• Flexible Input and Output Signals: The device accepts a variety of input signals, including 4-20 mA, 0-10 VDC, and digital signals, allowing for easy integration into existing systems.

• Compact and Lightweight: With dimensions of just 260.35 × 247.65 × 25.4 mm and weighing only 0.975 kg, the 5501-429 is compact enough to fit into tight spaces while maintaining high performance.

• Multiple Communication Options: The controller supports several communication protocols, including CAN, Modbus, and analog, enabling seamless integration with other control systems.

• Enhanced Safety Features: Equipped with protection mechanisms like overload, short circuit, and overvoltage protection, it ensures reliable and safe operation in critical environments.

• Energy Efficient: Designed to be energy efficient, the 5501-429 operates effectively without wasting power, reducing operational costs.

• Easy to Integrate: Its versatile inputs and outputs, along with industry-standard communication protocols, make it easy to integrate with a wide range of control systems and hardware.

• Low Maintenance: The controller’s durable design minimizes wear and tear, reducing the frequency of maintenance and increasing system uptime.

• Industry Certifications: With UL, CE, and RoHS certifications, the 5501-429 complies with international safety, environmental, and quality standards, ensuring reliability and safety in operation.
