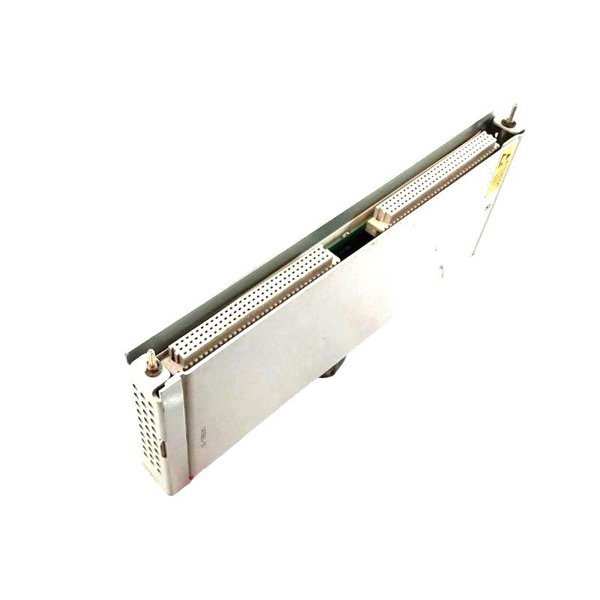

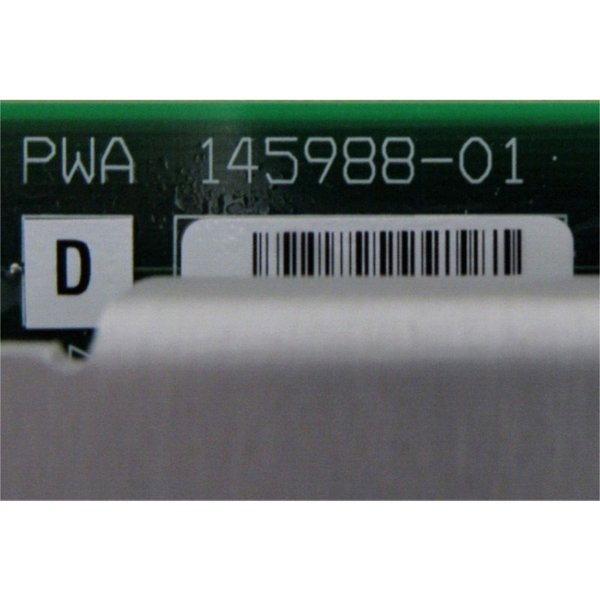

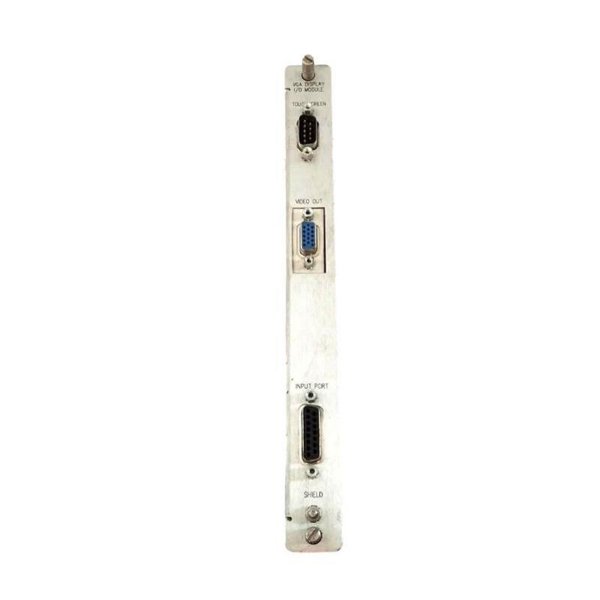

Bently Nevada 3500/94 145988-01+147663-01 VGA Display Monitor

The Bently Nevada 3500/94 VGA Display Monitor provides a clear and user-friendly interface for monitoring and configuring the 3500 Machinery Protection System. It displays real-time machinery parameters, status indications, and diagnostic data on a VGA screen. The module enhances operational visibility, enabling maintenance and operations teams to quickly identify and respond to machine conditions.

Technical Specifications

Applications

• Real-time machinery protection and monitoring in rotating equipment systems

• Monitoring turbines, compressors, pumps, and motors

• Integration with the Bently Nevada 3500 series system for centralized status visibility

• Industrial environments requiring continuous machinery diagnostics

• Display of vibration, temperature, and system alarm data

Advantages

• High-clarity VGA interface for quick interpretation of data

• Direct front-panel monitoring without external devices

• Easy configuration and navigation through system data

• Compatible with a wide range of 3500 modules

• Rugged design suitable for demanding industrial environments

• Improves maintenance efficiency by providing instant visual diagnostics

FAQ

Q1: What is the main function of the 3500/94 VGA Display Monitor?

A1: It provides visual access to system parameters, alarms, and diagnostics from the 3500 Machinery Protection System.

Q2: Can the display monitor be used independently?

A2: No, it requires connection to a 3500 rack system to function.

Q3: What type of data can be viewed on the monitor?

A3: It displays vibration levels, temperature readings, alarm statuses, and system health diagnostics.

Q4: How is the monitor powered?

A4: It is powered directly from the 3500 rack, requiring no separate power supply.

Q5: What is the resolution of the VGA display?

A5: The display provides 640 x 480 pixel resolution.

Q6: Is Ethernet communication supported?

A6: Yes, certain versions support Ethernet connectivity for remote monitoring.

Q7: Can the display be replaced without interrupting system operation?

A7: Yes, it can be hot-swapped without shutting down the system.

Q8: What industries commonly use this display monitor?

A8: Power generation, oil & gas, petrochemical, and heavy machinery industries.

Q9: What environmental conditions can it withstand?

A9: It operates between 0°C and +65°C, with storage down to -40°C.

Q10: Does it support multi-language display?

A10: Yes, the monitor supports multiple languages for global application.
