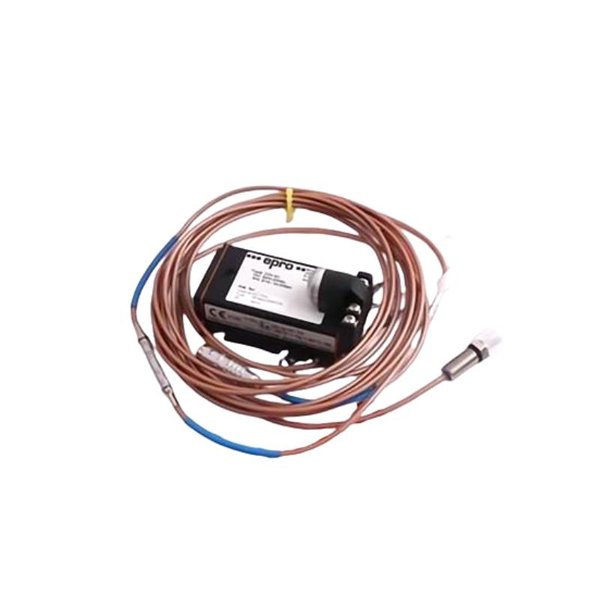

Epro PR6424/113-100 16mm Eddy Current Sensor

The Epro PR6424/113-100 is a high-precision eddy current sensor designed for industrial and aerospace applications. It provides non-contact displacement and vibration measurement with high accuracy and reliability. With a 16 mm sensor head diameter and robust construction, this sensor is suitable for harsh environments, including high temperatures, high vibration, and electromagnetic interference. The PR6424/113-100 is widely used in applications that require fast response, low hysteresis, and excellent repeatability. Its compact design allows easy integration into measurement systems, monitoring machinery health, and controlling critical processes in real time.

Product Specifications

Applications

The PR6424/113-100 is ideal for precise, real-time monitoring in demanding industrial environments. Typical applications include:

• Monitoring rotor and turbine shaft displacement in power plants.

• Vibration measurement and analysis in compressors, pumps, and generators.

• Position feedback for industrial machinery and robotics.

• Real-time shaft alignment in rotating equipment.

• Condition monitoring in aerospace engines and gas turbines.

• Integration into control systems for predictive maintenance.

Advantages

The Epro PR6424/113-100 offers numerous technical advantages:

• High Accuracy: Provides precise displacement and vibration measurements with low hysteresis.

• Non-Contact Measurement: Reduces wear and mechanical interference.

• Fast Response: Frequency response up to 10 kHz allows accurate high-speed measurements.

• Compact Design: 16 mm sensor head allows easy installation in tight spaces.

• Robust Construction: Resistant to vibration, temperature extremes, and electromagnetic interference.

• Versatile Output: Supports voltage or current outputs for integration with multiple control systems.

• Reliable Performance: Stable measurements in harsh industrial environments.

Frequently Asked Questions

1. What is the maximum measurement frequency of this sensor?

   The sensor supports frequencies up to 10 kHz, suitable for high-speed vibration and displacement measurements.

2. Can the sensor measure both static and dynamic displacement?

   Yes, it accurately measures both static positions and dynamic vibrations.

3. What type of output signal is provided?

   The sensor provides configurable voltage or current outputs, compatible with standard industrial data acquisition systems.

4. Is the sensor affected by temperature changes?

   The sensor operates reliably from -40°C to +125°C, with minimal drift due to built-in temperature compensation.

5. What is the resolution and repeatability?

   Resolution is 0.1 µm, with high repeatability ensuring consistent measurements across cycles.

6. Can the sensor operate in high-vibration environments?

   Yes, it is designed to withstand industrial vibration without loss of accuracy.

7. What is the typical sensitivity of the sensor?

   Standard sensitivity is 0.5 V/mm, providing a linear output across the measurement range.

8. How is the sensor connected to measurement systems?

   Standard connection is via a 2 m cable, with customizable lengths available; output interfaces directly to controllers or DAQ systems.

9. Is the sensor resistant to electromagnetic interference (EMI)?

   Yes, the robust design ensures stable performance in EMI-prone environments.

10. Can this sensor be used in aerospace applications?

    Yes, it meets stringent reliability and precision requirements for monitoring engine shafts and other critical components.
