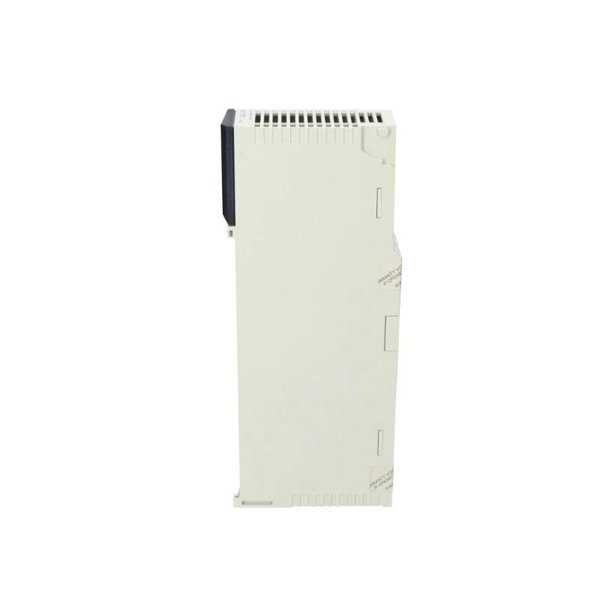

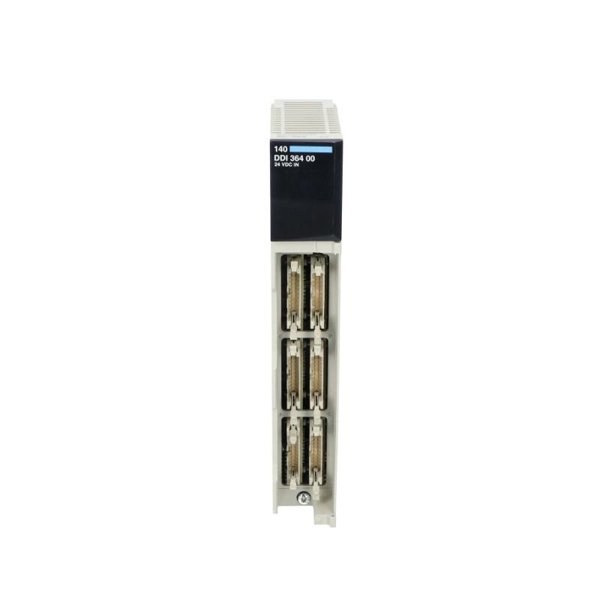

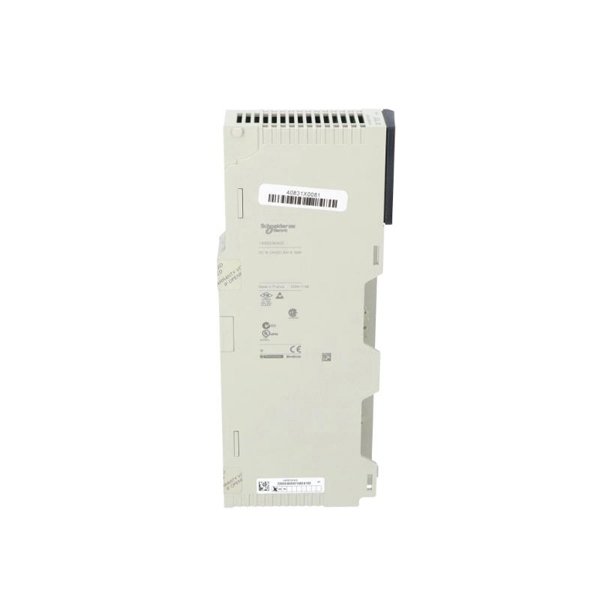

Schneider 140DDI36400 Discrete Input Module

The Schneider 140DDI36400 is a highly reliable and efficient discrete input module designed for use with the Modicon Quantum programmable logic controllers (PLCs). This module is engineered to provide reliable digital input capabilities, ensuring smooth operation in a variety of industrial automation applications. With robust design and advanced features, it ensures high performance, easy integration, and long-lasting durability in critical industrial environments.

The 140DDI36400 is particularly valued for its versatility, supporting multiple input types and offering a compact solution that simplifies installation and system configuration. Its design ensures compatibility with various devices and systems, allowing users to take full advantage of their automation networks.

Product Specifications

Below are the detailed specifications for the Schneider 140DDI36400 Discrete Input Module:

Product Applications

The Schneider 140DDI36400 Discrete Input Module is widely used in industrial automation systems where reliable digital inputs are needed. Typical applications include:

• Manufacturing Automation: Used to monitor and control machinery and assembly lines.

• Process Control Systems: Helps in monitoring discrete devices like switches, push buttons, and limit switches.

• Building Automation: Ensures reliable operation of equipment like HVAC systems, lighting, and fire alarm systems.

• Energy and Utilities: Helps manage systems in power plants, water treatment facilities, and oil refineries.

The versatility of this module makes it suitable for a wide range of industries, contributing to efficiency, control, and precision.

Product Advantages

• High Reliability: The 140DDI36400 is built to withstand harsh industrial environments, providing stable performance over time.

• Flexible Input Types: It supports both sinking and sourcing configurations, offering flexibility to integrate with various control systems.

• Easy Integration: The module can be easily installed onto the Modicon Quantum PLC system, facilitating quick and simple system integration.

• Compact Design: Its compact size saves space in control cabinets and reduces overall installation time.

• Durable Construction: Designed to operate in extreme temperature ranges, making it suitable for use in tough conditions.

• High-Speed Response: The module provides a quick response time, enhancing real-time monitoring and control capabilities.

FAQ

1. What is the input voltage range for the 140DDI36400?

   • The module supports a 24V DC input voltage range.

2. How many digital inputs are supported by the module?

   • The 140DDI36400 supports 16 digital inputs.

3. What is the response time of the module?

   • The typical response time is 10 ms.

4. Can the module handle both sinking and sourcing input configurations?

   • Yes, the module supports both sinking and sourcing input types.

5. What is the temperature range in which the module can operate?

   • The module can operate in a temperature range of -20°C to +60°C.

6. How is the module mounted?

   • The 140DDI36400 is designed for DIN rail mounting.

7. What are the dimensions of the module?

   • The dimensions are 103.9 × 40.3 × 250 mm.

8. What is the weight of the module?

   • The module weighs 0.3 kg.

9. What standards does the module conform to?

   • It complies with CE, UL, and CSA standards.

10. What are the primary industries that use this module?

    • It is used in manufacturing automation, process control systems, building automation, and energy/utilities sectors.
