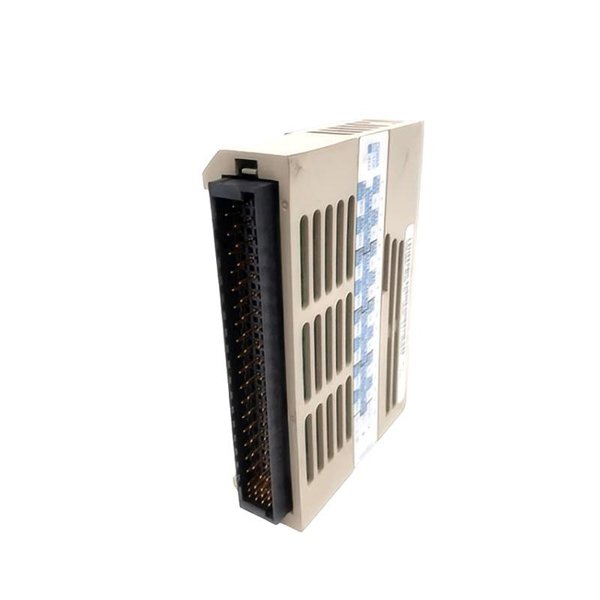

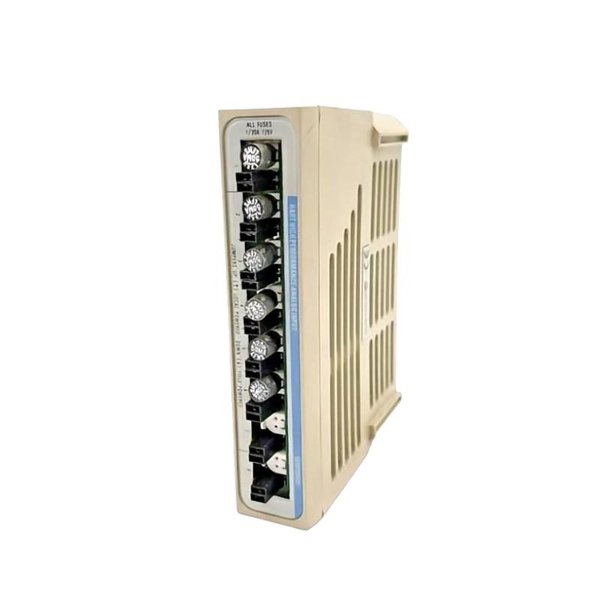

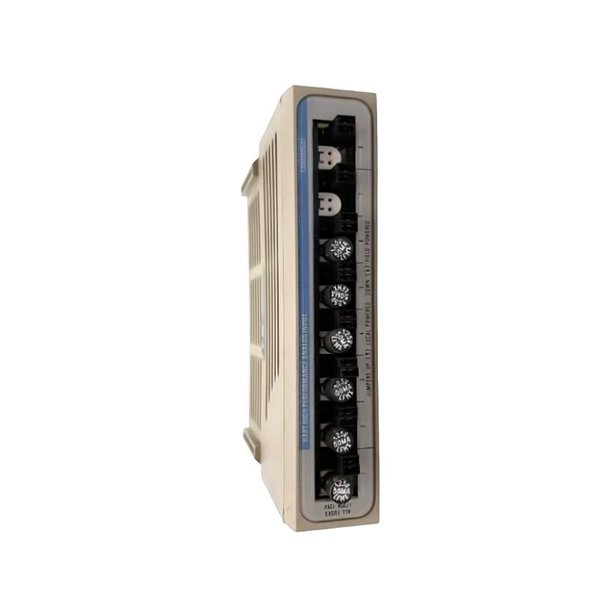

Ovation 5X00109G01 8 Channel Analog Input Module

The Ovation 5X00109G01 is a robust 8-Channel Analog Input Module designed specifically for Emerson’s Ovation Distributed Control System (DCS). It plays a critical role in the acquisition and conversion of analog signals from field instruments such as pressure transducers, temperature sensors, and flow meters into digital data that can be processed and monitored by the control system.

Built with high channel density and reliable conversion accuracy, the 5X00109G01 module ensures seamless integration with various industrial automation applications, including power plants, water treatment facilities, oil & gas platforms, and chemical plants. The module supports multiple input signal types, is engineered for long-term durability, and conforms to industry standards for EMC and temperature resistance.

Its modular design supports hot-swapping, easy maintenance, and compatibility within Ovation I/O racks, ensuring minimal downtime and maximum flexibility.

Product Specifications

Product Applications

The 5X00109G01 Analog Input Module is engineered for industrial-grade signal acquisition, making it ideal for:

• Power Generation Plants

  Gathers analog signals from pressure transmitters, temperature probes, and level sensors in turbines, boilers, and feedwater systems.

• Water and Wastewater Treatment

  Monitors chlorine levels, flow rates, and chemical dosing control systems.

• Oil & Gas Facilities

  Used in upstream and midstream environments for pressure, temperature, and level feedback in pump and valve systems.

• Chemical and Petrochemical Plants

  Accurately reads analog feedback from pH sensors, conductivity meters, and dosing pumps for process regulation.

• HVAC and Environmental Monitoring

  Measures temperature, humidity, and pressure signals from sensors in large-scale building systems.

• Manufacturing and Industrial Automation

  Interfaces with analog transducers to control motors, valves, and process lines.

Product Advantages

• High Signal Accuracy

  Maintains precision measurement across a wide range of analog signals with low drift and high resolution.

• Channel Isolation

  Reduces cross-talk and protects each channel from electrical interference or transient voltage spikes.

• Compact and Modular Design

  Occupies minimal rack space and supports easy replacement without disturbing other modules.

• Software Configurable

  Allows users to set signal types and scaling per channel through Ovation software, minimizing hardware changes.

• Industrial Durability

  Built to withstand electrical noise, harsh temperatures, and vibration, ensuring field reliability.

• Seamless Ovation Integration

  Fully compatible with Emerson Ovation DCS I/O architecture, requiring no additional interface devices.

Frequently Asked Questions (FAQ)

1. What types of analog signals can this module accept?

   It supports standard industrial signals including 0–5V, 0–10V, and 4–20mA across all channels.

2. Can each channel be configured independently?

   Yes, each channel can be independently configured for voltage or current input via the control system software.

3. Is the module hot-swappable?

   Yes, it supports hot-swapping within a powered Ovation rack, allowing for maintenance without shutting down the system.

4. How do I know if a channel is malfunctioning?

   The module features built-in diagnostics and LED indicators for channel fault detection and status monitoring.

5. What happens in the event of signal overrange?

   The system flags the channel and can be programmed to hold last value, trigger an alarm, or shut down the loop.

6. Can it be used in hazardous or explosive environments?

   Not directly. It must be installed within certified enclosures if used in Class I/Div 2 or Zone-rated environments.

7. Does it require external power for signal conditioning?

   No, it draws power from the Ovation chassis and does not require additional external supply.

8. How often does the module require calibration?

   Factory calibration is highly stable; however, annual system-level calibration is recommended for critical processes.

9. Can this module be used in combination with digital I/O modules?

   Yes, it is designed to work seamlessly with other Ovation analog and digital modules in the same rack.

10. Is firmware upgradeable on this module?

    Firmware is typically managed at the controller level, not directly upgradeable per module. Consult Emerson support for version compatibility.
