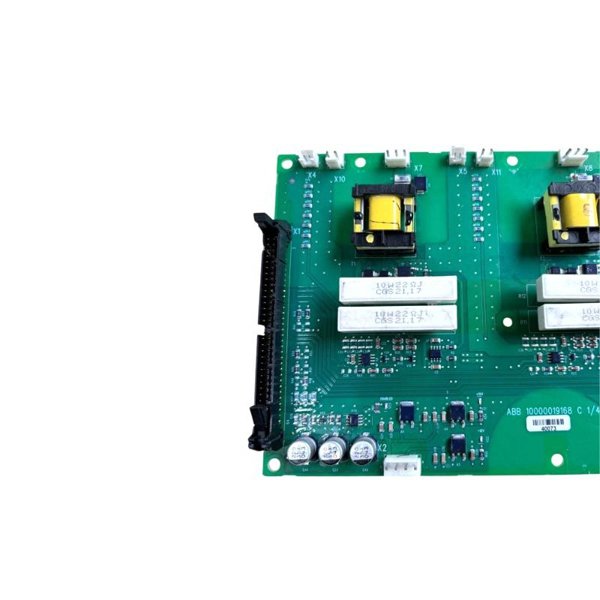

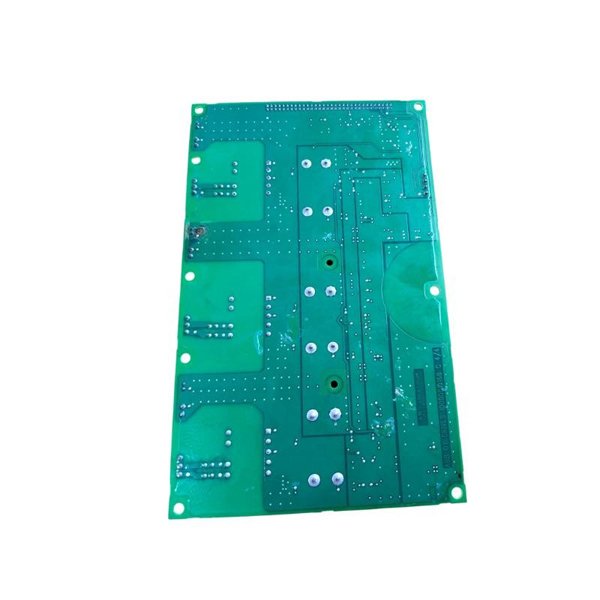

ABB BTDR-01C 3AUA0000094845 Frequency Converter Accessories

The ABB BTDR-01C 3AUA0000094845 is a highly reliable frequency converter accessory designed to complement ABB’s advanced motor control systems. As part of ABB’s extensive portfolio of accessories, this module enhances the overall functionality, flexibility, and robustness of ABB frequency converters, notably the ACS800 and ACS880 series.

The BTDR-01C serves as a Terminal and Driver Module that improves signal conditioning, electrical isolation, and communication reliability between the frequency converter and connected motor systems. It allows seamless adaptation to various industrial environments, providing engineers with the tools they need to tailor drive performance and integration to meet unique application requirements.

Its design prioritizes durability, operational efficiency, and safety, meeting international standards for industrial automation equipment. Whether you are modernizing existing installations or building new high-performance motor systems, the BTDR-01C offers valuable advantages in terms of control, protection, and integration.

Product Parameters

Applications

The ABB BTDR-01C module is used across a wide range of industries where motor control precision, reliability, and system flexibility are critical:

• Industrial Automation & Process Control

  Helps optimize production lines, conveyors, robotic systems, and factory equipment for enhanced productivity and energy efficiency.

• Water Treatment & Wastewater Plants

  Provides reliable interface and control between pumps, blowers, and motors to ensure efficient and safe water management.

• HVAC Systems

  Manages variable-speed fan, compressor, and chiller motors for improved climate control and energy savings.

• Oil & Gas Industry

  Drives high-power pump motors and compressors with precision while meeting stringent safety standards.

• Mining & Cement

  Enables robust motor control for crushers, grinders, and transport systems in harsh environments.

• Marine & Offshore

  Supports advanced drive control in propulsion, cranes, and auxiliary systems onboard vessels and rigs.

Product Advantages

• Seamless Integration

  Engineered to work directly with ABB frequency converters, ensuring straightforward installation and minimal configuration.

• Enhanced Communication Capabilities

  Provides multiple industrial communication protocols (CANopen, Modbus RTU, Profibus DP), ensuring compatibility with diverse automation systems.

• High Electrical Isolation

  Offers galvanic isolation between control and power circuits, improving overall system reliability and safety.

• Compact and Robust Design

  The space-saving construction supports installation in tight cabinets while withstanding industrial operating conditions (temperature, humidity, vibration).

• Energy Efficiency

  Contributes to optimized drive operation, reducing overall energy consumption in motor-driven systems.

• Global Compliance

  Certified for CE, UL, RoHS standards, enabling use across international markets without additional approval steps.

• Low Maintenance

  Built with quality components to provide long service life with minimal maintenance requirements.

• Enhanced Protection Features

  Integrated safeguards against overvoltage, short circuits, and communication errors protect both the module and connected equipment.

• Supports High-Power Applications

  Works with ABB frequency converters controlling motors up to 500 kW, suitable for demanding industrial environments.

• Backwards and Forwards Compatible

  Designed to integrate with both legacy and new ABB systems, supporting long-term operational flexibility.

FAQ

1. What is the primary role of the ABB BTDR-01C module?

   It acts as a Terminal and Driver Interface Module that provides signal conditioning, electrical isolation, and enhanced communication between the frequency converter and external control systems.

2. Which ABB drives are compatible with the BTDR-01C?

   The BTDR-01C is fully compatible with ABB ACS800, ACS880, and selected ACS series frequency converters.

3. Can the BTDR-01C be used with older drive systems?

   Yes, it is designed with backward compatibility, allowing integration with previous generations of ABB drives.

4. What communication interfaces are supported?

   The BTDR-01C supports CANopen, Modbus RTU, and Profibus DP, enabling seamless system integration.

5. What is the operating temperature range?

   The module operates reliably between -10 °C and +50 °C, suitable for most industrial environments.

6. Does the BTDR-01C provide electrical isolation?

   Yes, the module includes galvanic isolation to protect control circuits from power disturbances and electrical faults.

7. How is the BTDR-01C installed?

   It can be mounted on a DIN rail or directly on the back panel, providing flexibility for different cabinet layouts.

8. Is the BTDR-01C compliant with international standards?

   Yes, it carries CE, UL, and RoHS certifications, allowing deployment in global markets.

9. Can the module handle high-power motor drives?

   It supports drive systems up to 500 kW, making it suitable for high-performance industrial motors.

10. Does it require regular maintenance?

    The module is designed for low maintenance and features high reliability for long-term operation.
