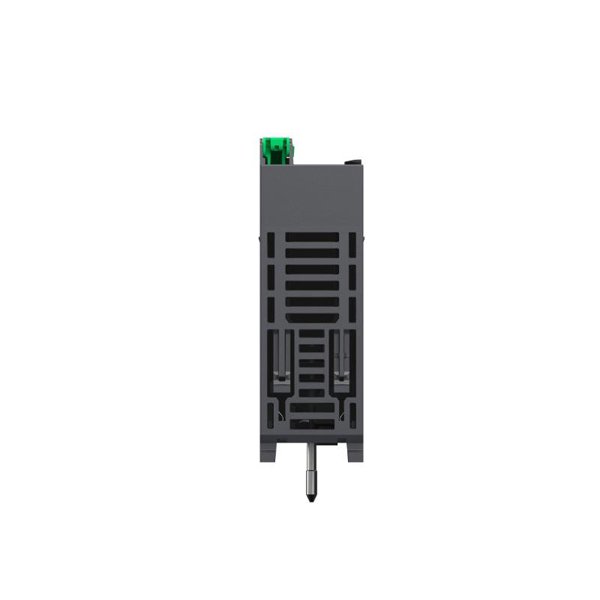

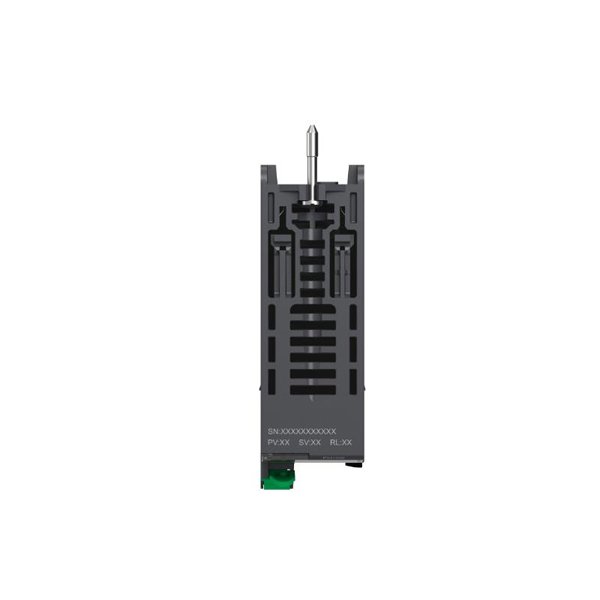

Schneider BMXP341000 Processor

The Schneider BMXP341000 is a high-performance processor unit designed for the Modicon M340 programmable logic controller (PLC) series. Serving as the central processing unit, this processor provides robust and reliable control capabilities for a broad range of industrial automation applications. With an advanced architecture, it supports complex logic processing, fast data handling, and seamless communication with I/O modules and other network components.

The BMXP341000 processor is engineered for demanding environments, combining processing speed with strong diagnostics and memory capabilities. Its modular design allows for easy integration into existing M340 systems, facilitating flexible system expansion and upgrade paths. The processor supports multiple communication protocols and offers enhanced security features to protect industrial processes.

Technical Specifications

Applications

The BMXP341000 processor module is widely used in various industrial automation scenarios, where precise control, real-time processing, and system reliability are crucial:

• Manufacturing Automation: Controls complex production lines, packaging machinery, and assembly systems.

• Process Control: Suitable for chemical, pharmaceutical, and food processing plants requiring precise process management.

• Infrastructure Automation: Used in water treatment, wastewater management, and energy distribution networks.

• Material Handling: Powers conveyor systems, robotic controls, and automated storage/retrieval systems.

• Building Management: Integrates with HVAC, lighting, and security systems for intelligent building controls.

• Transportation Systems: Manages railway signaling, traffic lights, and automated tolling systems.

• Oil & Gas: Provides reliable control in drilling, refining, and pipeline monitoring applications.

Advantages

• High Processing Speed: 200 MHz CPU ensures fast execution of control programs and data processing.

• Large Memory Capacity: 8 MB RAM and 2 MB flash memory provide ample space for complex applications.

• Multiple Communication Options: Supports Ethernet, serial link, and USB interfaces for flexible connectivity.

• Robust Diagnostics: Built-in diagnostics facilitate troubleshooting and enhance system uptime.

• Modular and Scalable: Easily integrates into existing M340 systems, supporting flexible expansion.

• Enhanced Security Features: Protects against unauthorized access and ensures process integrity.

• Wide Operating Temperature Range: Suitable for use in harsh industrial environments.

• Energy Efficient: Low power consumption relative to its performance capabilities.

• Reliable and Durable: Designed to meet industrial standards for vibration, shock, and environmental resistance.

• Supported by Schneider Electric Ecosystem: Compatible with a wide range of Schneider automation products and software tools.

Frequently Asked Questions (FAQ)

1. Q: What is the primary role of the BMXP341000 in an automation system?

   A: It acts as the central processor controlling logic execution, communications, and data handling in the Modicon M340 PLC system.

2. Q: What communication protocols does the BMXP341000 support?

   A: It supports Ethernet/IP, Modbus TCP/IP, Modbus RTU, and can interface with Profibus via additional modules.

3. Q: Can the BMXP341000 processor be used in harsh industrial environments?

   A: Yes, it operates reliably within 0°C to +60°C and withstands vibration and shock conditions typical of industrial settings.

4. Q: How much memory is available for program storage?

   A: The processor includes 2 MB of flash memory for program storage and 8 MB RAM for runtime operations.

5. Q: What are the power requirements for this processor?

   A: It operates on a 24 V DC supply with a typical power consumption of about 7 watts.

6. Q: Is the BMXP341000 compatible with other Modicon M340 modules?

   A: Yes, it is fully compatible and designed to work seamlessly with the M340 I/O and communication modules.

7. Q: Does the processor support hot swapping?

   A: No, it is recommended to power down the system before installing or removing the processor.

8. Q: What are the physical dimensions and weight of the processor?

   A: Dimensions are 409 x 130 x 394 mm and it weighs 0.2 kg.

9. Q: What certifications does the BMXP341000 hold?

   A: It holds CE, UL, CSA, RoHS, and EAC certifications ensuring compliance with international standards.

10. Q: What software tools are recommended for programming the BMXP341000?

    A: Schneider Electric’s Unity Pro software is the recommended environment for programming and configuring the M340 system.
